User manual SIPLACE HF series 7 Station extensions
Software Version SR.50x.xx 01/2006 US Edition 7.1 Nozzle changer
301
7.1.2 Nozzle changer for the 6-segment Collect&Place head
Item no. 00119662-xx
This nozzle changer can hold up to 6 magazines, each with 6 nozzle holders. There are two types
of magazine available: magazines for type 8xx nozzles and magazines for type 9xx nozzles. The
magazines are seated on a common support. They are centered using two parallel pins and fixed
in place with clips.
7
Fig. 7.1 - 9 Nozzle changer for the 6-segment Collect&Place head
WARNING 7
Only install the associated nozzle changer for each placement head. There is a risk of head
crashes with mixed configurations.
7.1.2.1 Technical data
7
Nozzle changer for the 6-segment Collect&Place head
Dimensions (length x width x height) 448 x 122.5 x 97.7 mm³
Number of nozzle holders 6
Nozzle types 8 xx, 9 xx
Time required to open and close the locking plate < 200 ms
Compressed air connection 0.48 MPa (4.8 bar)
7 Station extensions User manual SIPLACE HF series
7.1 Nozzle changer Software Version SR.50x.xx 01/2006 US Edition
302

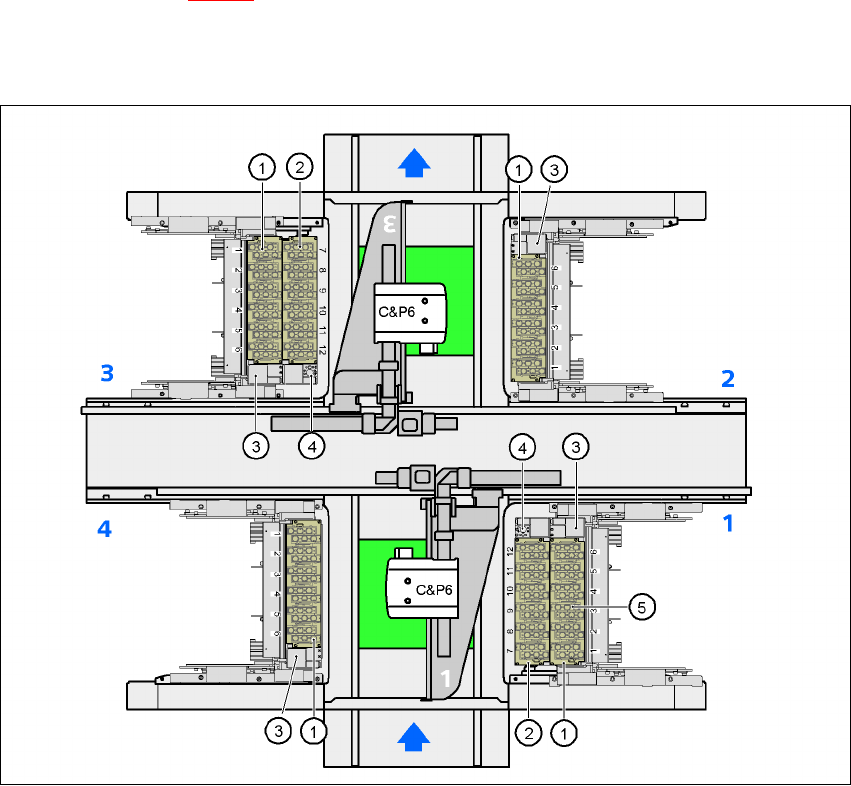

7.1.2.2 Position of the nozzle changers for the C&P6 head on the HF machine
1 or 2 nozzle changers may be installed at locations 1 and 3 for the 6 segment Collect&Place head
(items 1 and 2 in Fig. 7.1 - 10
). A nozzle changer may be installed at locations 2 and 4. This gives
a total capacity of 6 nozzle changers with 36 magazines and a total of 216 nozzle holders.
7
Fig. 7.1 - 10 Position of the nozzle changers for the C&P6 head on the HF machine
(1) "Row 1" nozzle changer
(2) "Row 2" nozzle changer
(3) Reject bin for components
(4) Take-off device and reject bin for nozzles
(5) Nozzle magazine
7
7
7
User manual SIPLACE HF series 7 Station extensions
Software Version SR.50x.xx 01/2006 US Edition 7.1 Nozzle changer
303

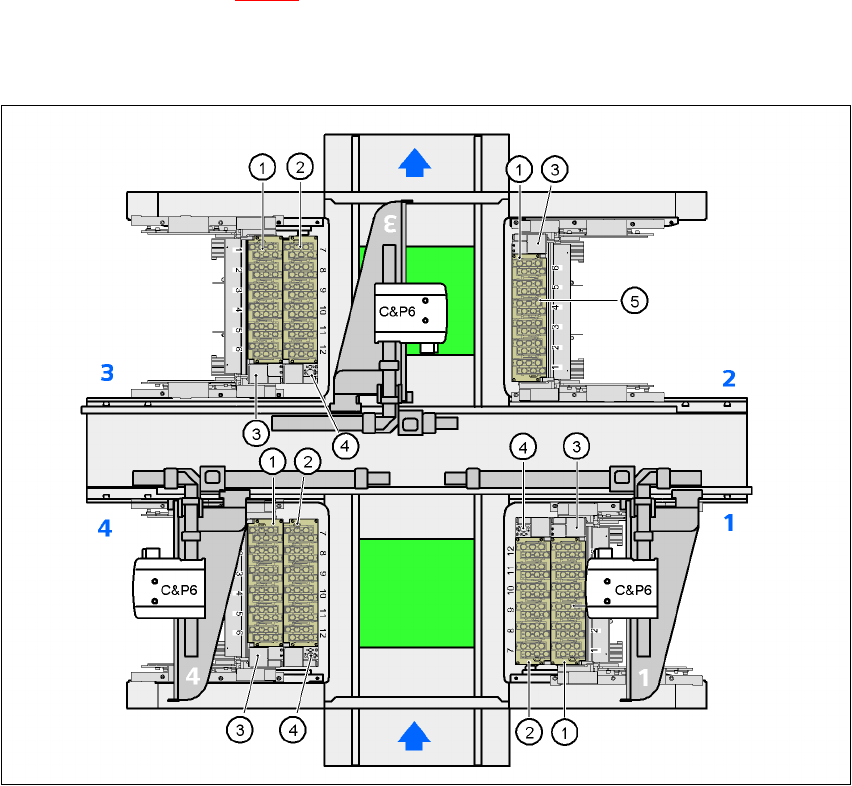

7.1.2.3 Position of the nozzle changers for the C&P6 head on the HF/3 machine
1 or 2 nozzle changers may be installed at locations 1, 3, and 4 for the 6-segment Collect&Place
head (items 1 and 2 in Fig. 7.1 - 11
). One nozzle changer may be installed at location 2. This gives
a total capacity of 7 nozzle changers with 42 magazines and a total of 252 nozzle holders.
7
Fig. 7.1 - 11 Position of the nozzle changers for the C&P6 head on the HF/3 machine
(1) "Row 1" nozzle changer
(2) "Row 2" nozzle changer
(3) Reject bin for components
(4) Take-off device and reject bin for nozzles
(5) Nozzle magazine
