User manual SIPLACE HF series 2 Operational safety
Software Version SR.50x.xx 01/2006 US Edition 2.2 Warning labels
35
2.2.1.1 Warning label W201
2
Pos. W201 in Fig. 2.2 - 1, item no. 03009338-01 (number per placement system: 1)
2.2.1.2 Warning label W203
2
Pos. W203 in Fig. 2.2 - 1, item no. 03009342-01 (number per placement system:4)
2.2.1.3 Warning label W204
2
Pos. W204 in Fig. 2.2 - 1, item no. 03009343-01 (number per placement system: 8)
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
SAFE OPERATION OF THE MACHINE
Safe operation of the machine depends absolutely on
the operator being familiar with the user manual and
safety instructions and putting them into effect.
2
2
2
DANGER OF CRUSHING!
Reaching in here can lead to injuries to the arms
and hands.
Do not reach into the machine while it is running
2
2
2
DANGER OF CRUSHING!
Reaching in here can lead to injuries to the arms
and hands.
Do not reach into the machine while it is running
2 Operational safety User manual SIPLACE HF series
2.2 Warning labels Software Version SR.50x.xx 01/2006 US Edition
36
2.2.1.4 Warning label W210
2
Pos. W210 in Figs. 2.2 - 1 and 2.2 - 2, item no. 03009350-01 (number per placement system: 2)
2
2
2
2
2
2
Warning label on the emergency stop button
User manual SIPLACE HF series 2 Operational safety
Software Version SR.50x.xx 01/2006 US Edition 2.2 Warning labels
37
2.2.2 Warning label W202 on the gantries

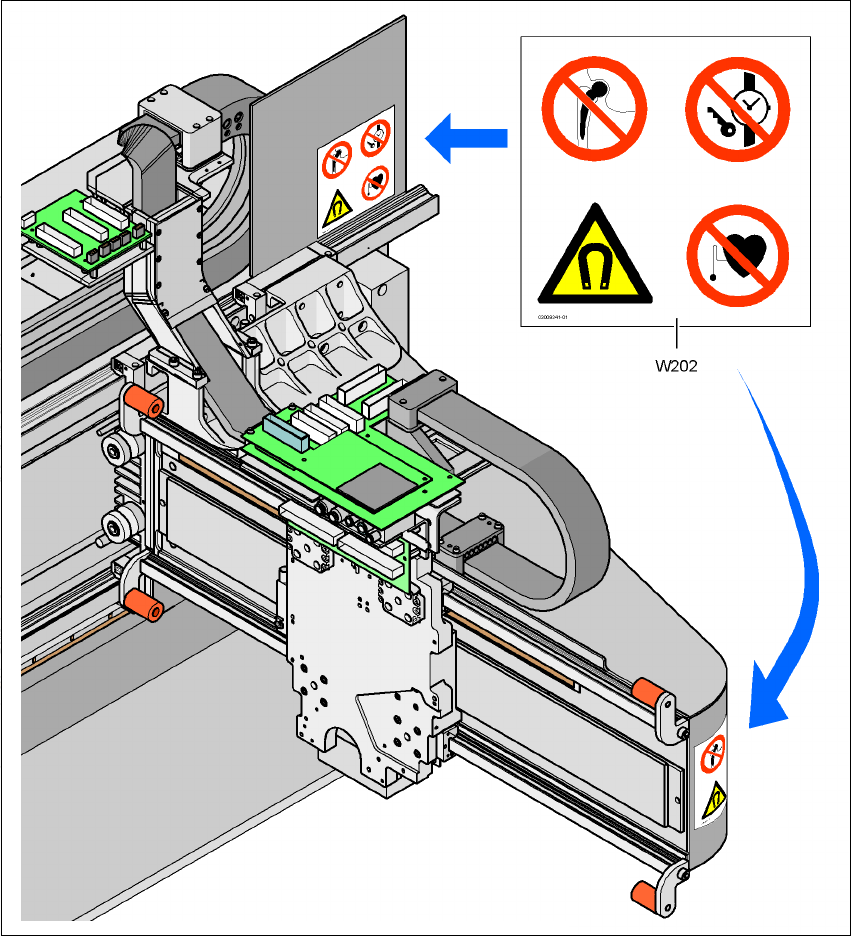

Fig. 2.2 - 3 Warning label W202 on the gantries
Pos. W202, item no. 03009341-01
