User manual SIPLACE HF series 2 Operational safety
Software Version SR.50x.xx 01/2006 US Edition 2.2 Warning labels
47
2.2.9 Warning label W208 "Laser class 2" on the PCB conveyor
2

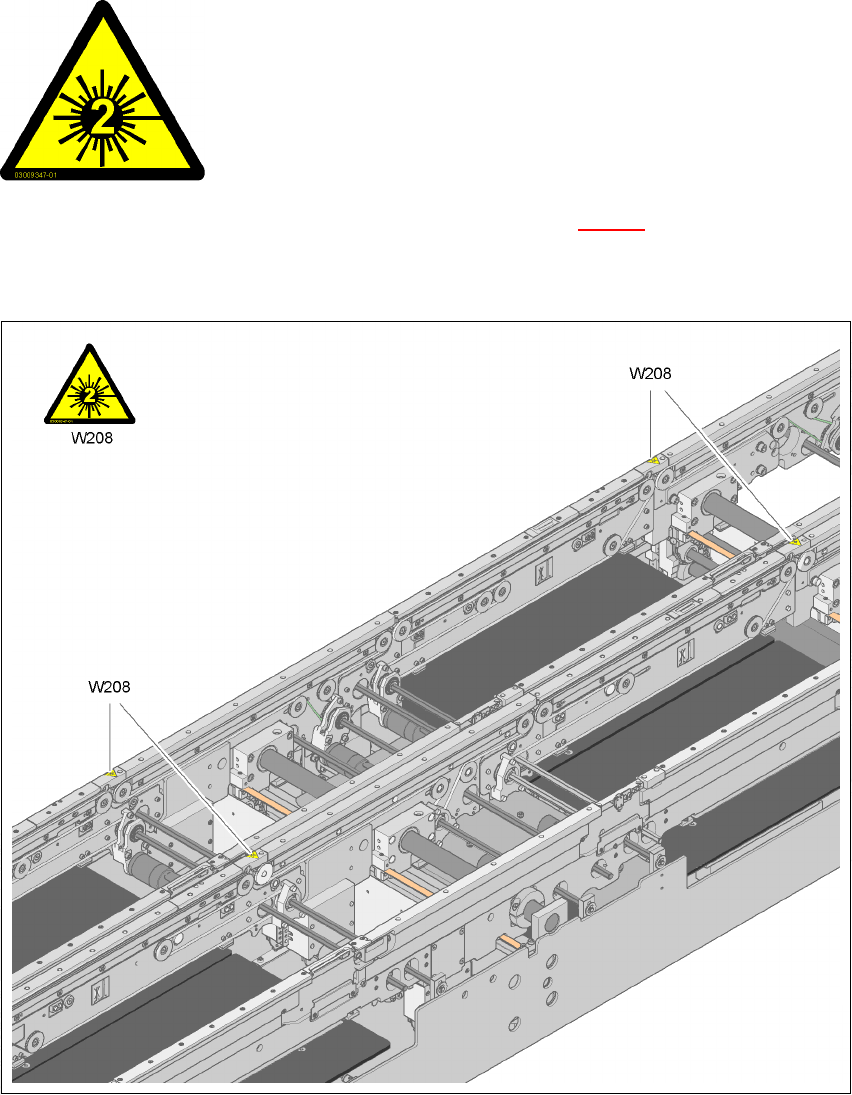

Warning label W208 "Laser class 2" on the PCB conveyor in Fig. 2.2 - 13, item no. 03009347-01
(number per placement system: 4 for the dual conveyor, 2 for the single conveyor)
2
2
2
Fig. 2.2 - 13 Warning label W208 "Laser class 2" on the PCB conveyor
2
2
LASER RADIATION!
Do not look into beam
Laser class 2
2 Operational safety User manual SIPLACE HF series
2.2 Warning labels Software Version SR.50x.xx 01/2006 US Edition
48
2.2.10 Warning label W211 on the CEKON plug
2

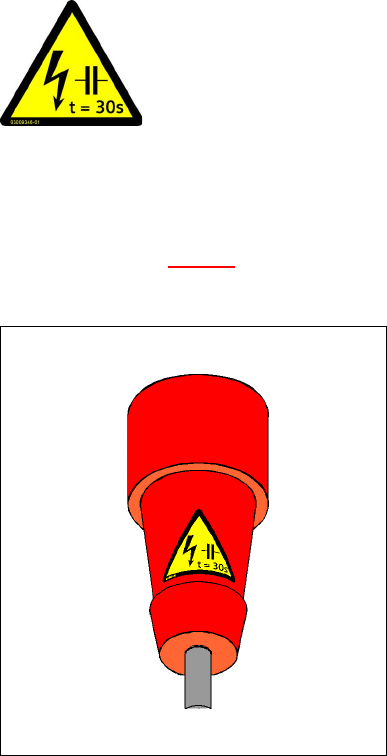

Pos. W 211 in Fig. 2.2 - 14 (number per placement system: 1)
2
Fig. 2.2 - 14 Warning label W211 on the CEKON plug
Pos. W211, item no. 03009351-01
2
RESIDUAL VOLTAGE!
Wait 30 seconds after disconnecting the main power plug from the mains to
allow any residual voltages to dissipate.
NAFTA region: Hazardous Voltage
Residual power at plug prongs and wire ends will cause death or serious in-
jury. Avoid contact with power plug and/or wire ends for 30 seconds
User manual SIPLACE HF series 2 Operational safety
Software Version SR.50x.xx 01/2006 US Edition 2.2 Warning labels
49
2.2.11 Warning label W209 on the emergency stop buttons
2

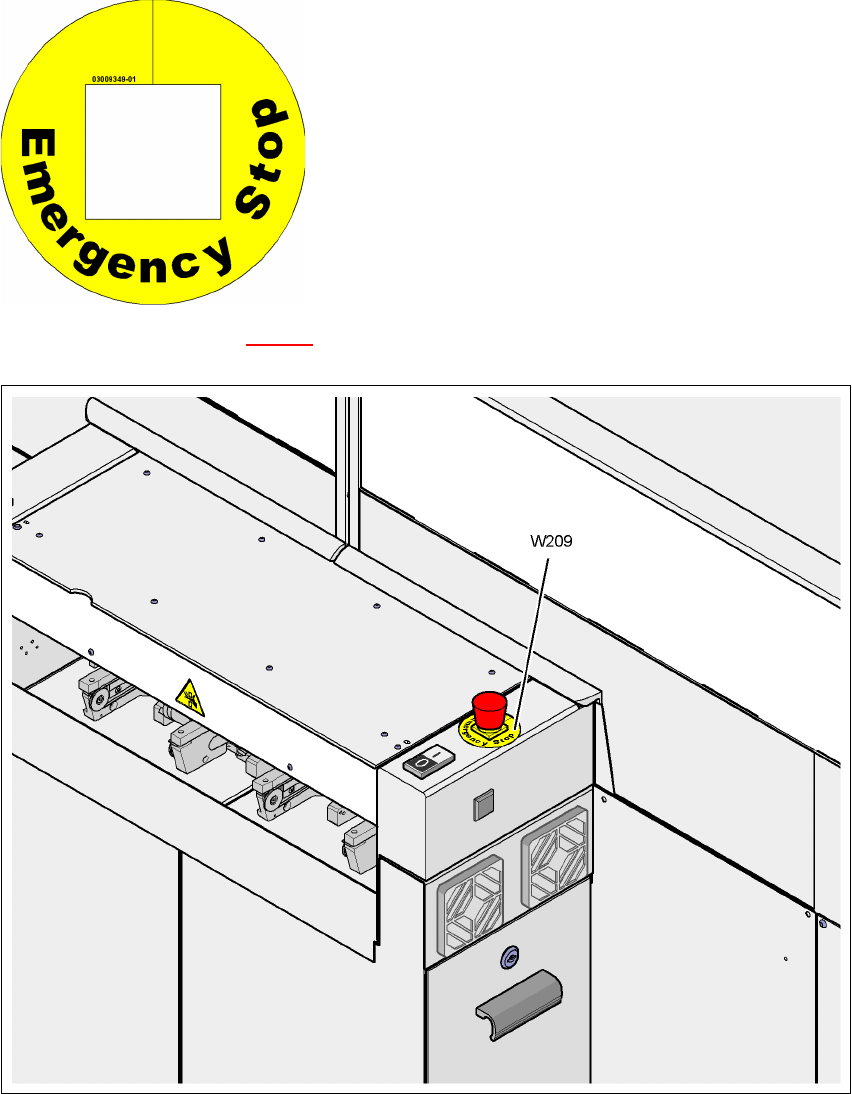

Warning label W209 in Fig. 2.2 - 15, item no. 03009349-01 (number per placement system: 2)
2
2
Fig. 2.2 - 15 Warning label W209 on the emergency stop buttons
2
Pos. W209, item no. 03009349-01
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
For Australia, Canada, Mexico and USA,
warning label W110 is affixed to the extension
kit instead of the yellow ring on the emergency
stop buttons.
