Refilling Component Reels - Splicing - Required Tools and Materials :

132

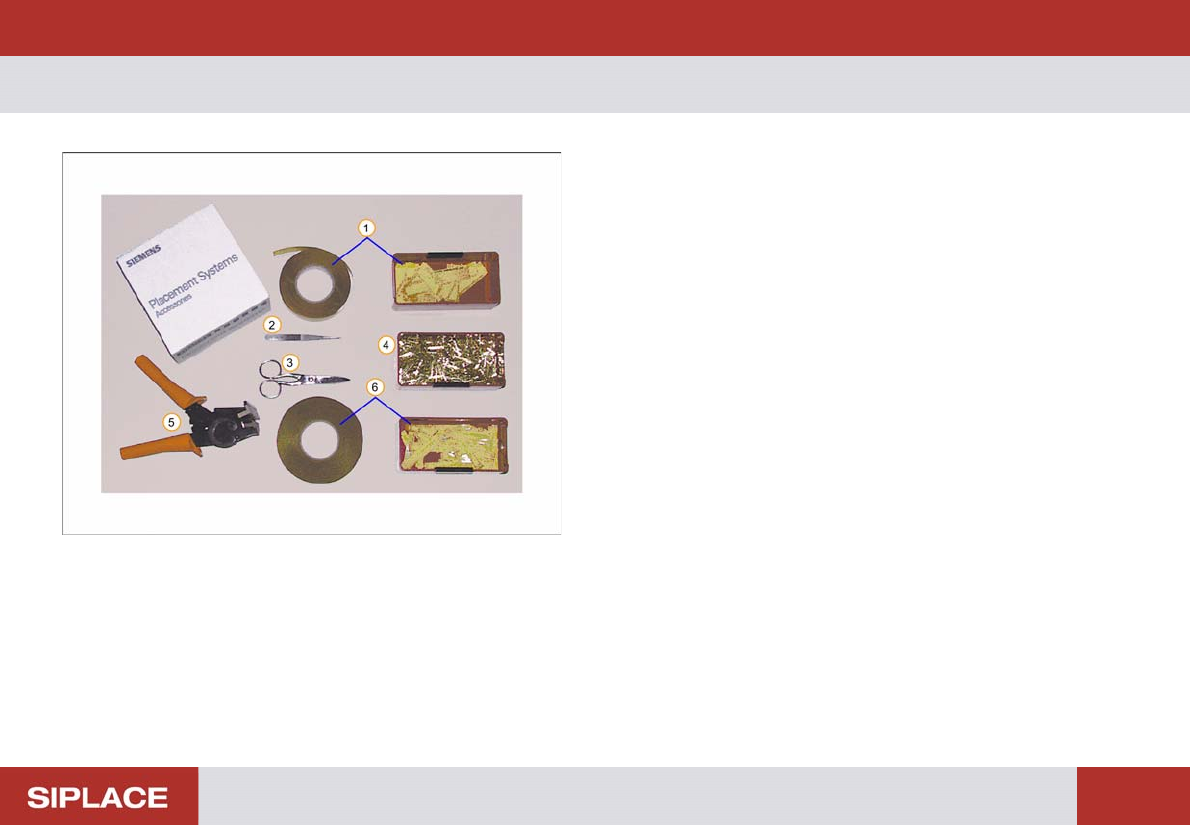

Splicing - Required Tools and Materials

These tools and materials are required for tape splicing.

1. Adhesive tape (small)

2. Tweezers

3. Scissors

4. Splicing rivets

5. Splicing tool

6. Adhesive tape (large)

Refilling Component Reels - Preparation of carrier tape end :

133

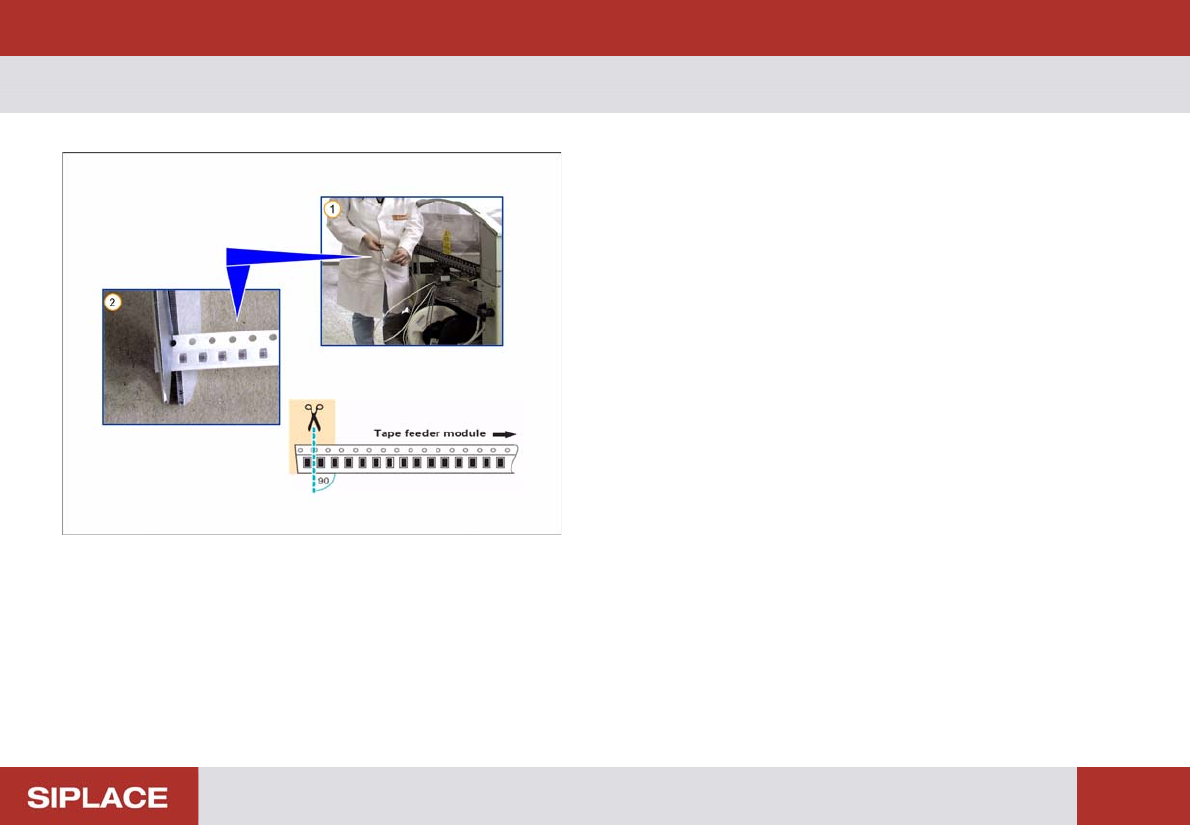

Preparati on of carrier tape end

Carrier tape end:

1. Carrier tape end is protruding from the feeder

2. Cut carrier tape exactly between two pockets in the

middle of the hole, as shown in picture. All pockets

must be full to end of carrier tape

Note: Carrier tape splicing must occur with enough lead

tape length to prevent the machine to be stopped.

Refilling Component Reels - Preparation of new carrier tape :

134

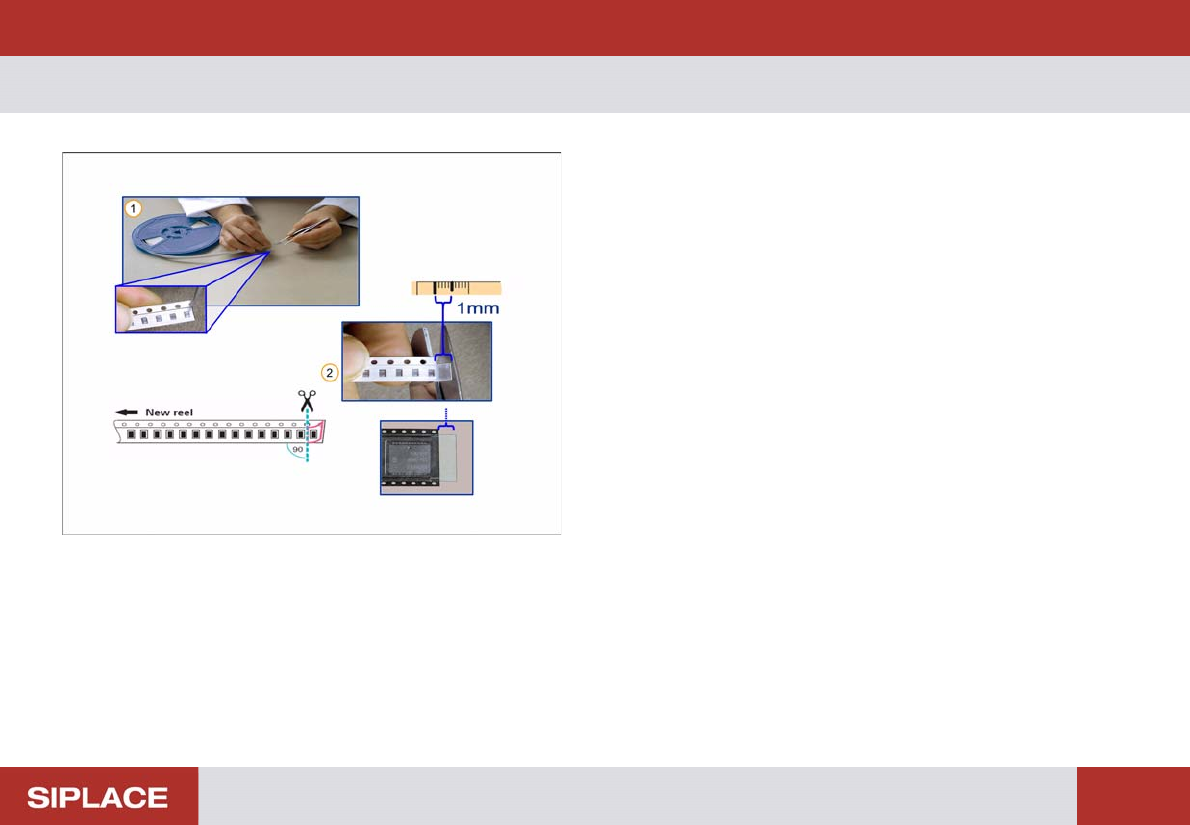

Preparation of new carrier tape

New carrier tape:

1. Peel cover tape back approximately the width of one

component pocket

2. Cut carrier tape exactly between two pockets in the

middle of the hole, as shown in picture. All pockets

must be full to end of carrier tape beginning

Note: Be careful not to cut the cover tape to allow cover

tape overlap onto old cover tape!
