00196849-02 OG SIPLACE Operation of X and SX-Series without SSC (SW70x) - 第42页

Preparing the Component Set Up - Steps to prepare a product to run at the line : 42 Steps to prepare a product to run at the line

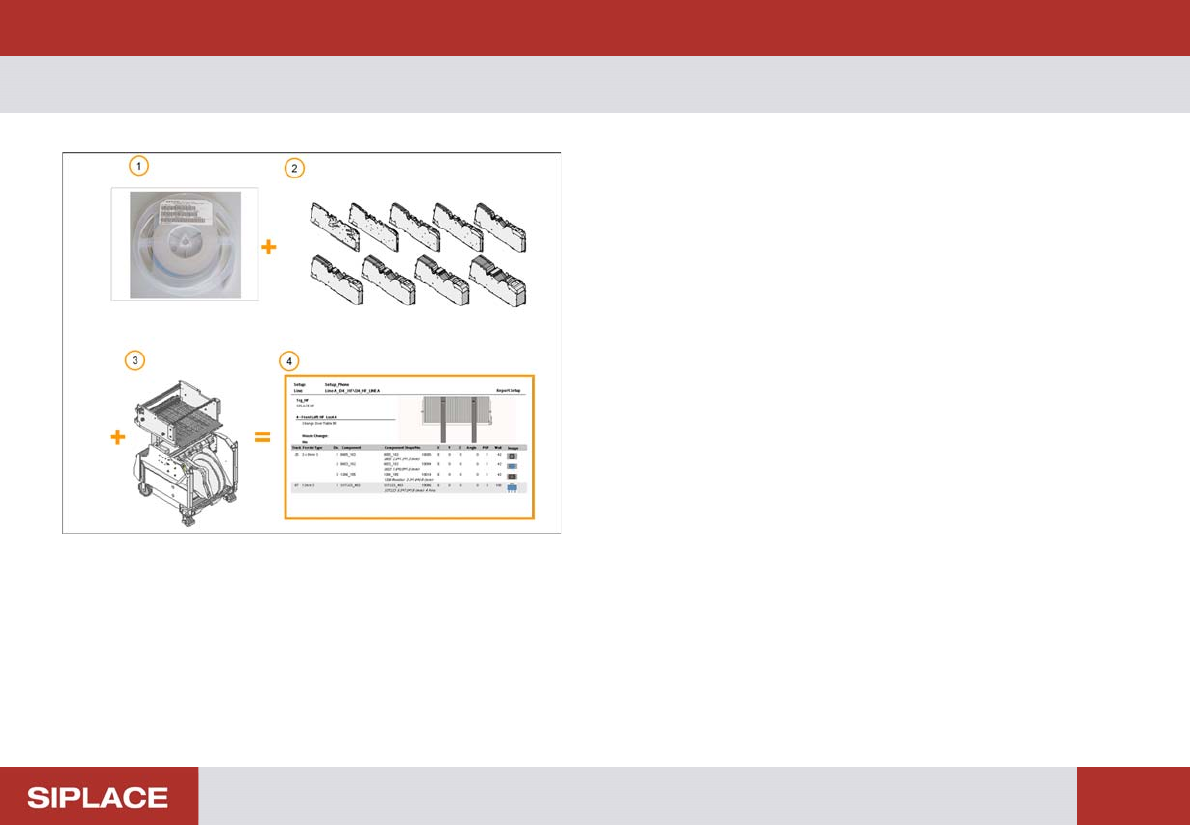

Preparing the Component Set Up - What makes a Set-Up? :

Preparing the Compon ent Set Up

1. SMD Components

2. Feeders

3. Feeder Tables

4. Set-Up Sheet

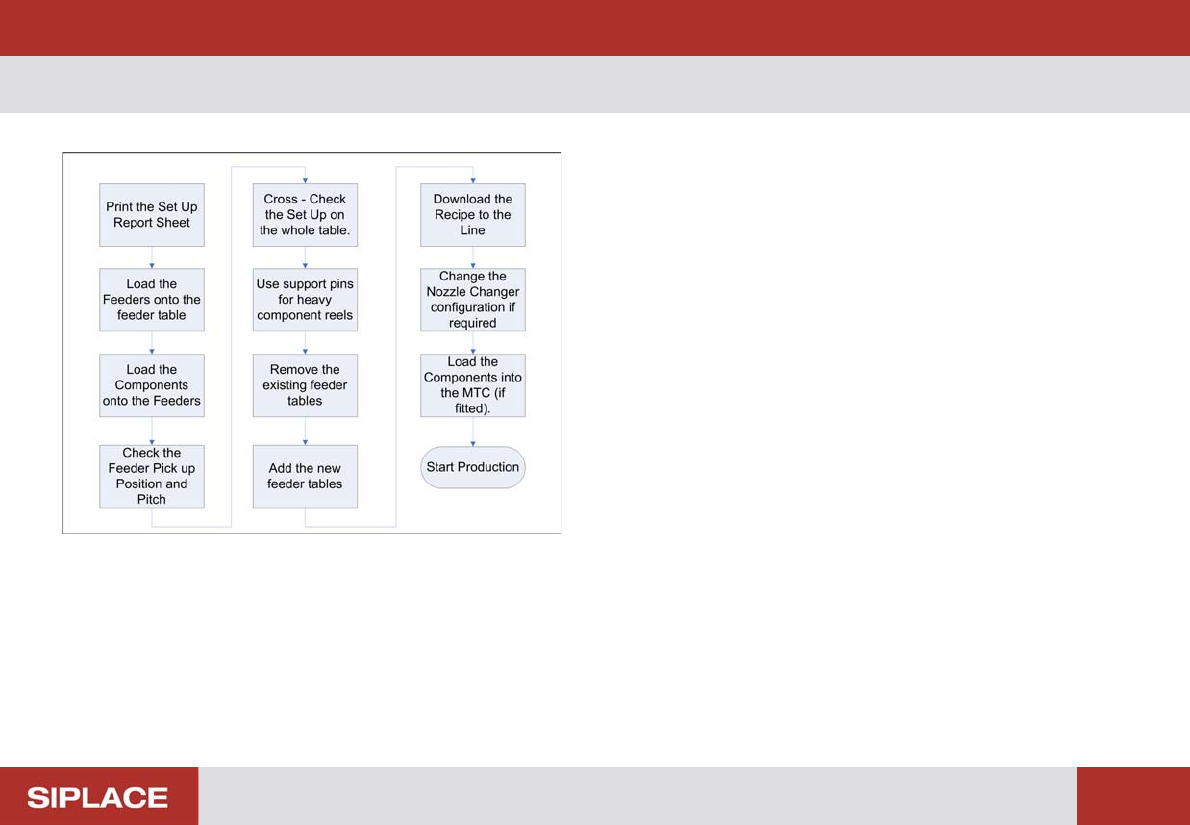

Preparing the Component Set Up - Steps to prepare a product to run at the line :

Steps to prepare a product to run at the line

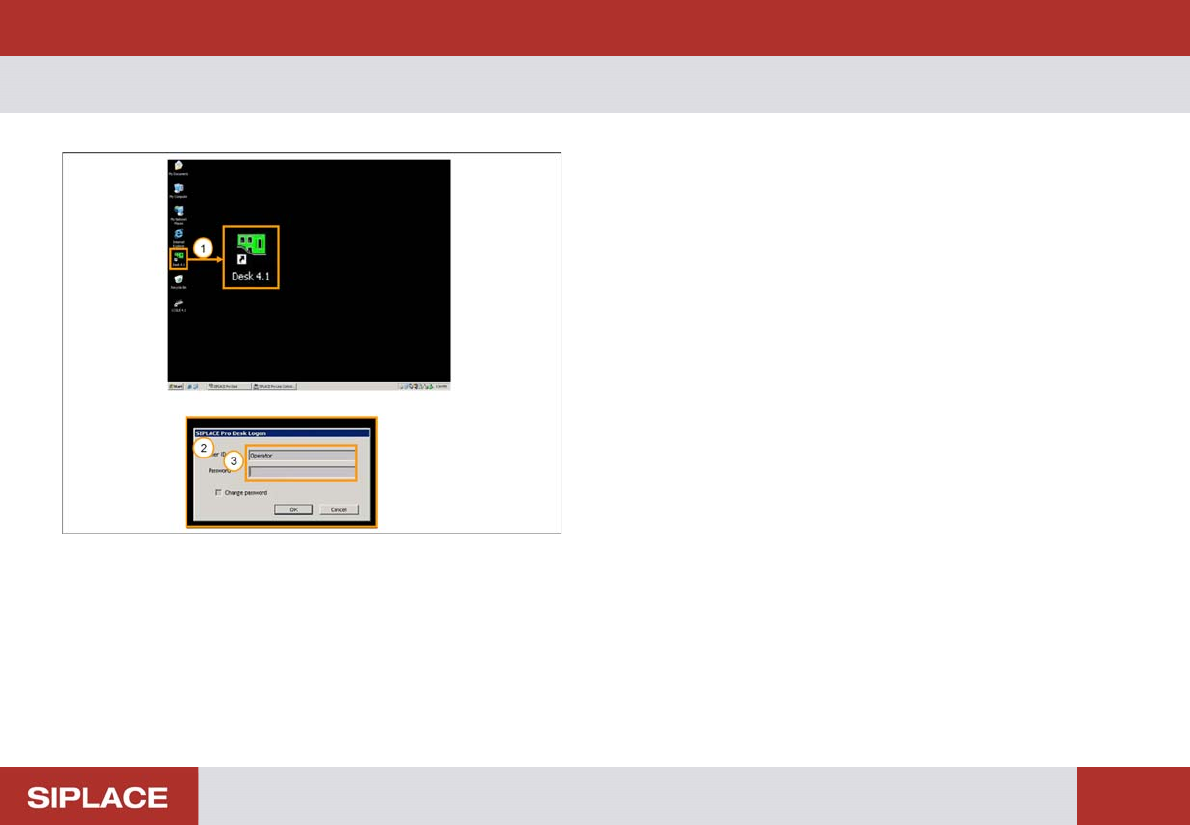

Preparing the Component Set Up - Printing Set Up Report :

Printing Set Up Report

1. Click on the SIPLACE Pro Desk icon.

2. Login Your User name and password

3. Default User: Operator

P/W: xxxxxxxx

Note: Do not reveal your password.
