Preparing the Component Set Up - Printing Set Up Report :
46

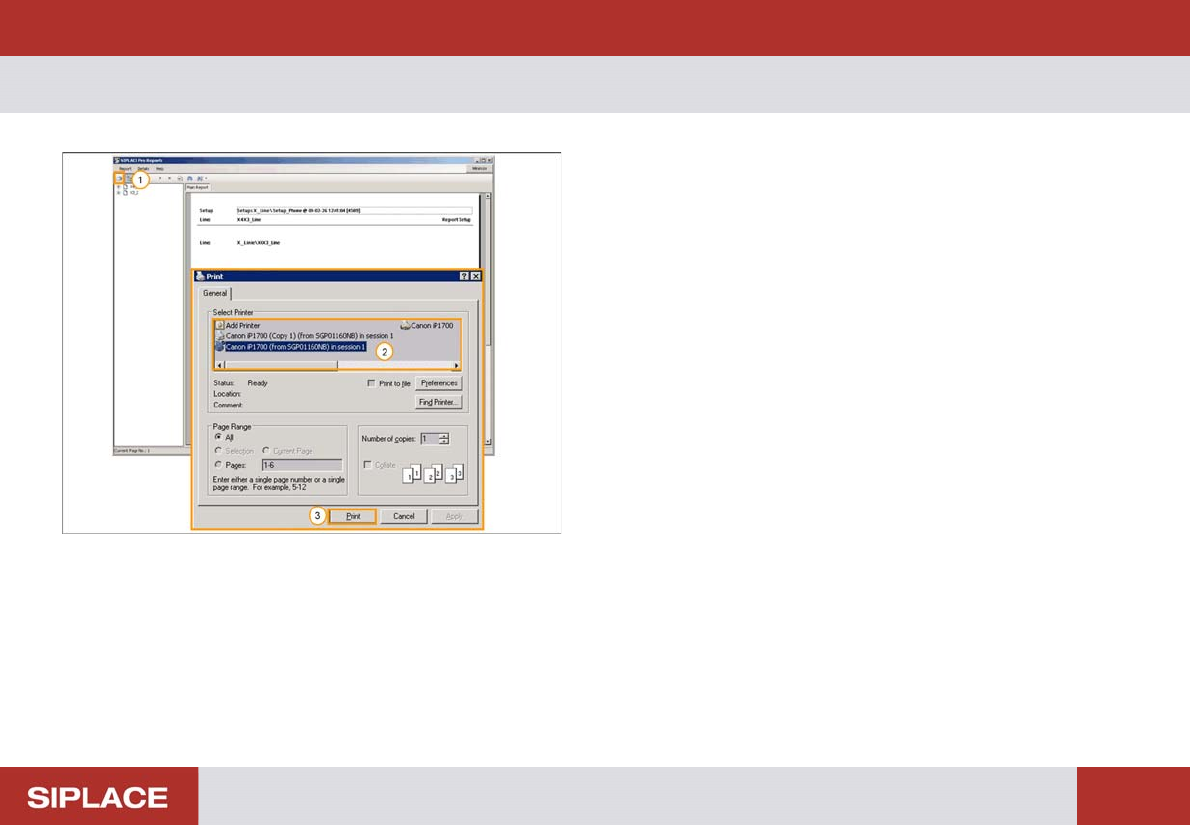

Printing Set Up Report
At the printing report page:
1. Click on the print button
2. Select the printer to print report
3. Click on the “Print” button to start printing the report
Preparing the Component Set Up - Reading / Interpreting Of The Table Set Up Sheet :
47

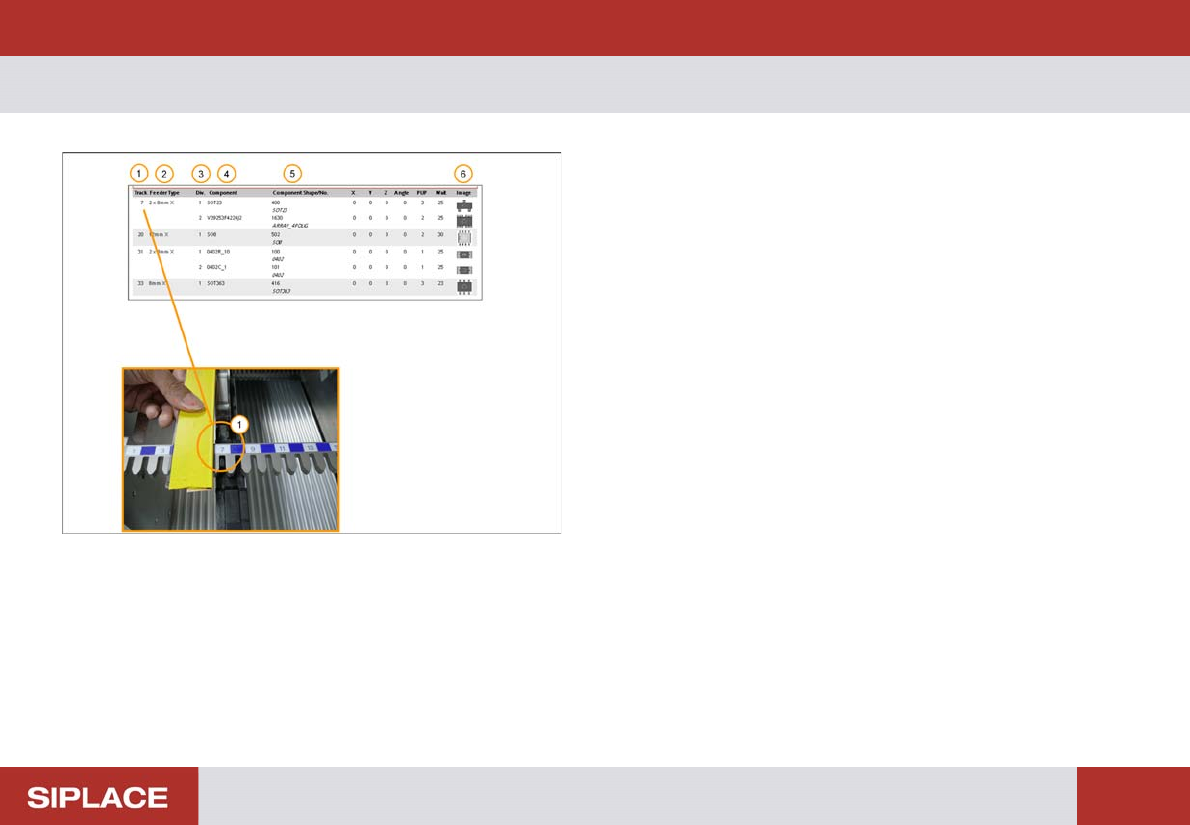

Reading / Inter preting Of The T able Set Up Sheet
1. Track number of the feeder.
2. Size and type of feeder.
3. Feeder Division Number (2 x 8mm feeder only).
4. Component Part number.
5. Component shape and number.
6. Graphical Image of the components (angle at pick up
position).
