Setting Up X-Feeders - Su ppor ts for heavy component reels : 70 Supports for heavy componen t reels NOTICE! Heavy component reels should be supported using special pins. 1. Insert the pin into the hole in the center of …

Setting Up X-Feeders - Checking the Set-Up :

Checking the Set-Up

1. In order to ensure the correct set up on each feeder

table you should refer to the set up sheet and

physically check.

▪ Component shape and number.

▪ Feeder division number.

▪ Component Part Number.

▪ Size and type of feeder.

▪ Orientation of the component at the pick up position.

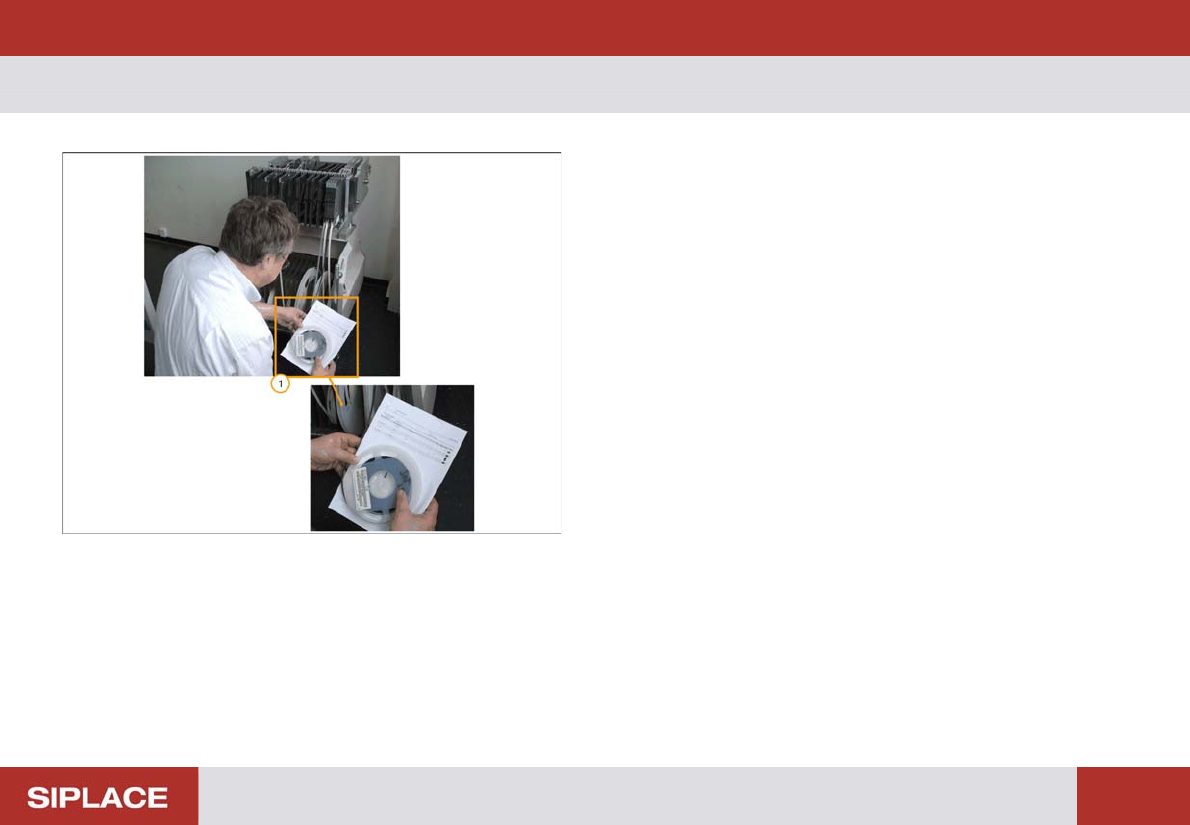

Setting Up X-Feeders - Supports for heavy component reels :

Supports for heavy component reels

NOTICE! Heavy component reels should be

supported using special pins.

1. Insert the pin into the hole in the center of the reel.

2. Fit the pin into the notches of the separator plates so

that the reel is suspended and can move easily.

SW 703 Changing the tables - Changing of Table - Preparation :

SW 703 Ch anging the tables

1. Station must be in suspended mode

2. Click on the ‘Manual Operations’ icon.
