19 Placement Heads Nozzle Changer s Technical Data for the Nozzle Changers *) All 6 magazine s must alway s be set up. The number of nozzle changers for th e Collect & Place heads depends on the number of gantr ies i…

18
Placement Heads
Nozzle Changer (TwinHead)

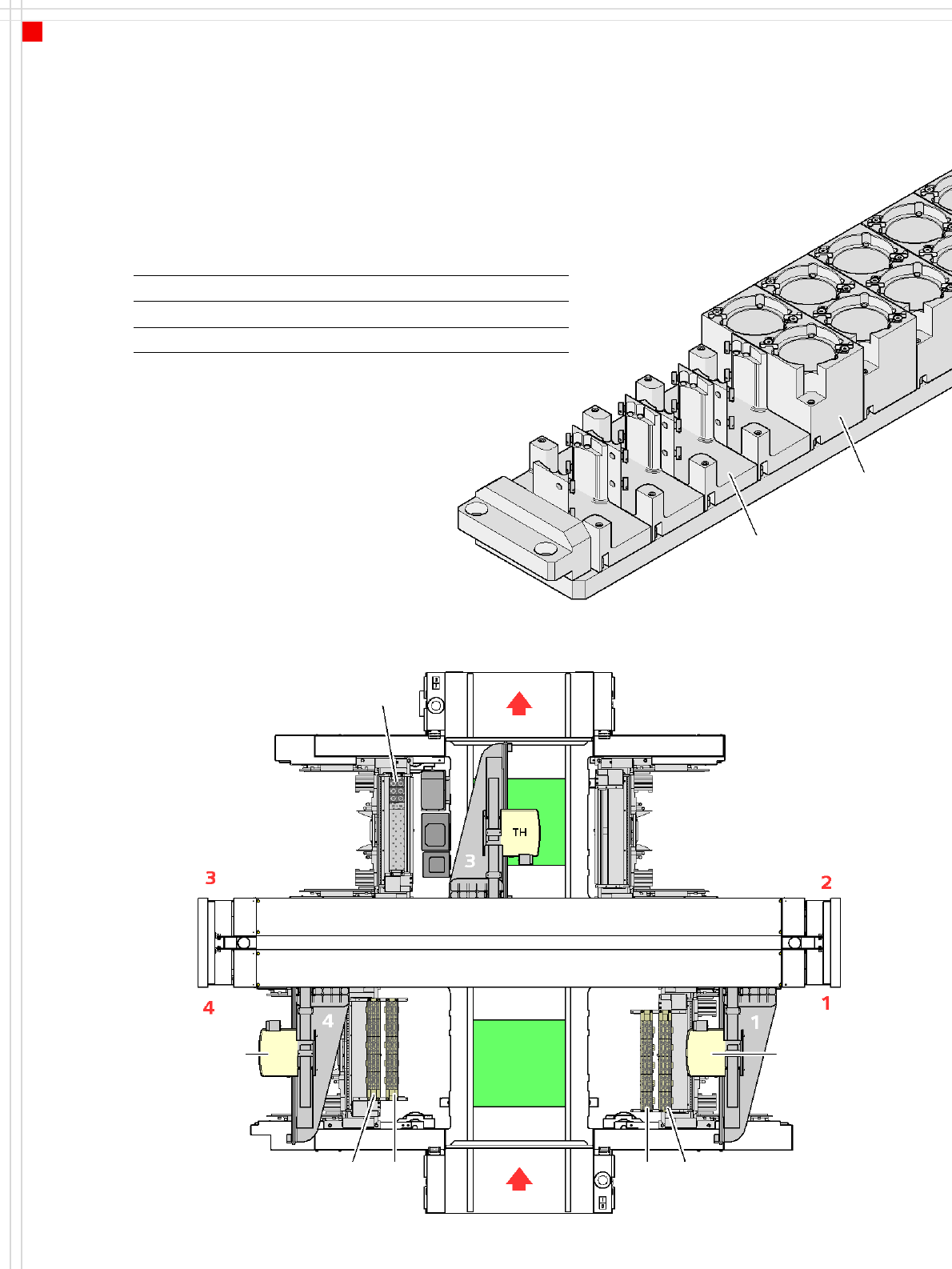

Position of the nozzle changer on SIPLACE X3 placement machines
Magazine for two
standard nozzles
Magazine for one
special nozzle, gripper
NC20 / NC20 or
NC12 / NC12 or
NC6 / NC6
NCTH
C&P20/C&P12/C&P6
PCB
C&P20/C&P12/C&P6
NC20 / NC20
or NC12 / NC12
or NC6 / NC6
The nozzle changer (NCTH) for the TwinHead (TH) may be
installed at the following locations on SIPLACE X machines.
The supporting plate can hold up to 12 magazines for standard
or special nozzles or grippers.
Placement machine Location 1 Location 3
X3 1 x NCTH —
X2 1 x NCTH 1 x NCTH

19
Placement Heads
Nozzle Changers
Technical Data for the Nozzle Changers
*) All 6 magazines must always be set up.
The number of nozzle changers for the Collect & Place heads depends on the number of gantries
in the placement area:
- up to four nozzle changers may be installed in the placement area with two gantries
- up to three nozzle changers may be installed in the placement area with one gantry
Nozzle changer for the 20-nozzle Collect&Place head
Dimensions (length x width x height) 449 x 94.5 x 79 mm³
Number of magazines 6 each with 12 nozzle holders
*)
Number of nozzle holders 72
Nozzle types 10xx, 11xx, 12xx
Nozzle change time < 200 ms per nozzle
Compressed air connection 0.48 MPa (4.8 bar)
Nozzle changer for the 12-nozzle Collect & Place head
Dimensions (length x width x height) 449 x 62.7 x 77.7 mm³
Number of magazines min. 1 / max. 5, each with 12 nozzle holders
Nozzle types 9 xx
Nozzle change time < 200 ms per nozzle
Compressed air connection 0.48 MPa (4.8 bar)
Nozzle changer for the 6-nozzle Collect & Place head
Dimensions (length x width x height) 448 x 122.5 x 97.7 mm³
Number of magazines min. 1 / max. 6, each with 6 nozzle holders
Nozzle types 8 xx, 9 xx
Nozzle change time < 200 ms per nozzle
Compressed air connection 0.48 MPa (4.8 bar)
Nozzle changers for the SIPLACE TwinHead
Dimensions (length x width x height) 448 x 68.5 x 49 mm³
Number of magazines max. 12
Number of nozzle holders May be freely configured
Nozzle types 4 xx with adapter
5 xx (standard)
9 xx with adapter
Special nozzle, gripper
Nozzle change time < 2 s per nozzle

20

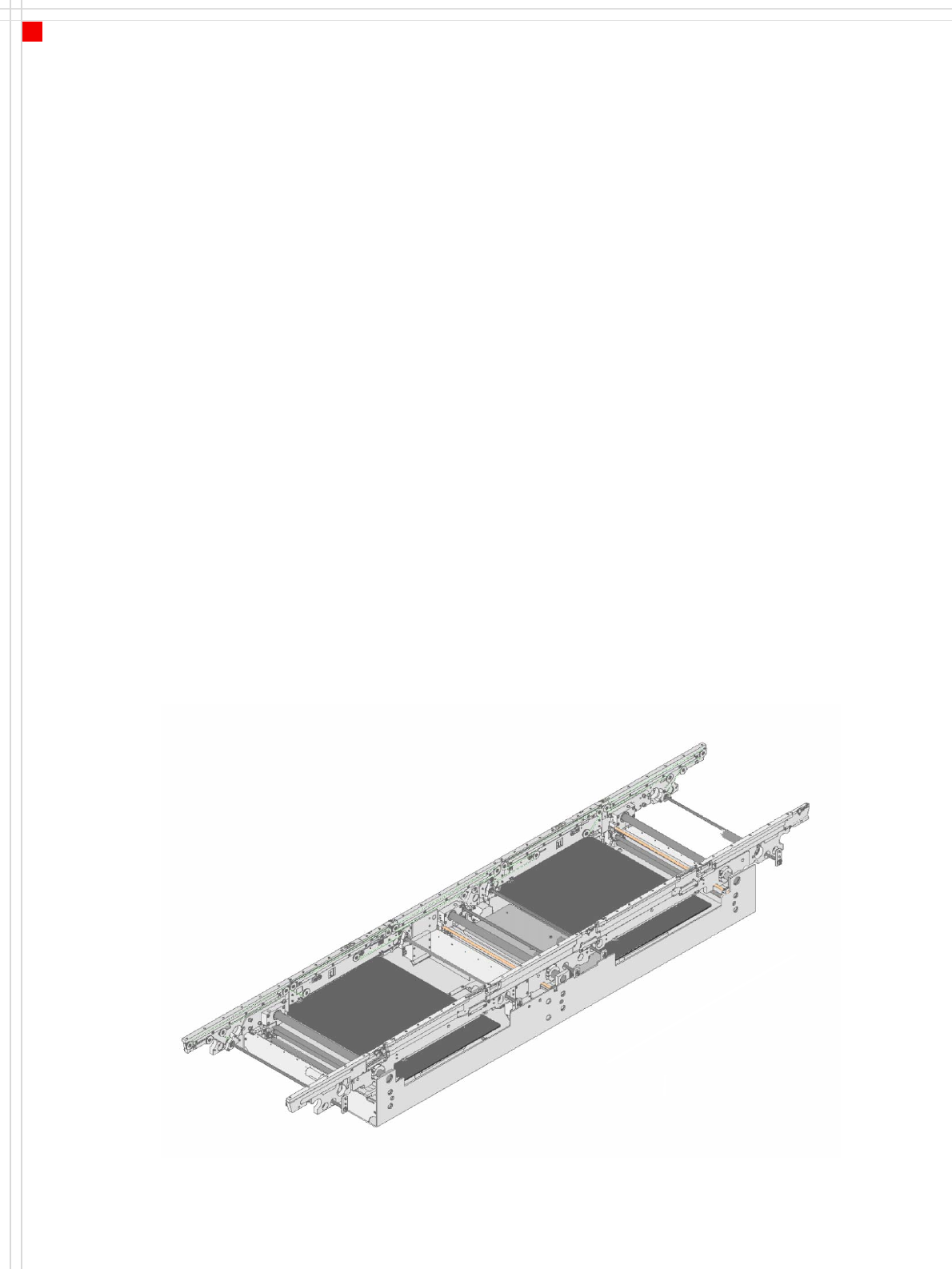

Placement area 1
Placement area 2
Output conveyor
Intermediate conveyor
Input conveyor
PCB Conveyor
Single Conveyor
Description
For placement, the PCB is
clamped from below. The dis-
tance between the top of the
PCB and the placement head
thus remains unchanged for
each PCB, and is not depen-
dent on the thickness of the
PCB. The placement rate is
also independent of the PCB
thickness.
Since the distance between
the PCB surface and the PCB
camera remains the same,
the PCB camera is always
focussed on the PCB surface
with the same level of sharp-
ness.
The PCB fiducial contours
are optimally mapped on the
CCD chip of the PCB camera.
The inline PCB conveyor
system quickly adapts to a
wide range of PCB widths.
The setting is made using the
placement program or via
the station software menu.
The width of the PCB convey-
or is monitored by an inte-
gral control circuit.
The transport height can be
modified, thus allowing the
machines to be integrated
into lines with a transport
height of 830, 900, 930 or
950 mm.
The PCB conveyors can com-
municate with the individual
machines via the SMEMA
interface.
The fixed transport side can
be located on the left or right
for both the dual conveyor
and the single conveyor.
With this conveyor, the fixed
side can be easily switched
from right to left or vice
versa.
Movement and clamping of
the PCBs are monitored and
controlled by sensors. When
the board has reached the
placement area and passed
the light barrier, it is braked.
A laser light barrier deter-
mines the position of the
board. As soon as the circuit
board has reached its target
position, the conveyor belt is
stopped and the board is
clamped from the underside.
The placement process then
starts immediately.
