25 Locati on 1 Locati on 3 Locati on 2 Loca tion 4 Component Feeding SIPLACE X-Series Com ponent Changeove r Table Description The component c hangeover tables ar e stand-alone m od- ules that can be set up at an externa…
24
PCB Conveyor
SIPLACE PCB Barcode for Product-Controlled
Production (Option)
Label dimensions Stroke width (W): 0.19 < W ≤ 0.3 mm (corresponds to high and medium den-
sity), stroke length: ≥ 4 mm, length of the barcode template window: ≤ 90 mm
Recommended label
colors
Coding: black, dark green, dark blue, background: white, beige, yellow, orange
(contrast ratio > 70% to DIN 66236
Code types Code 39, Code 128 / EAN 128, Codabar, 2/5 IATA 2/5 industrial, 2/5 interleaved,
UPC, EAN, Pharma Code, EAN Addendum (others available on request),
max. 25 digits, a barcode filter may be defined
Laser scanner safety Laser diode 670 nm (red) / 1.2 mW
Laser protection class 2, degree of protection IP65

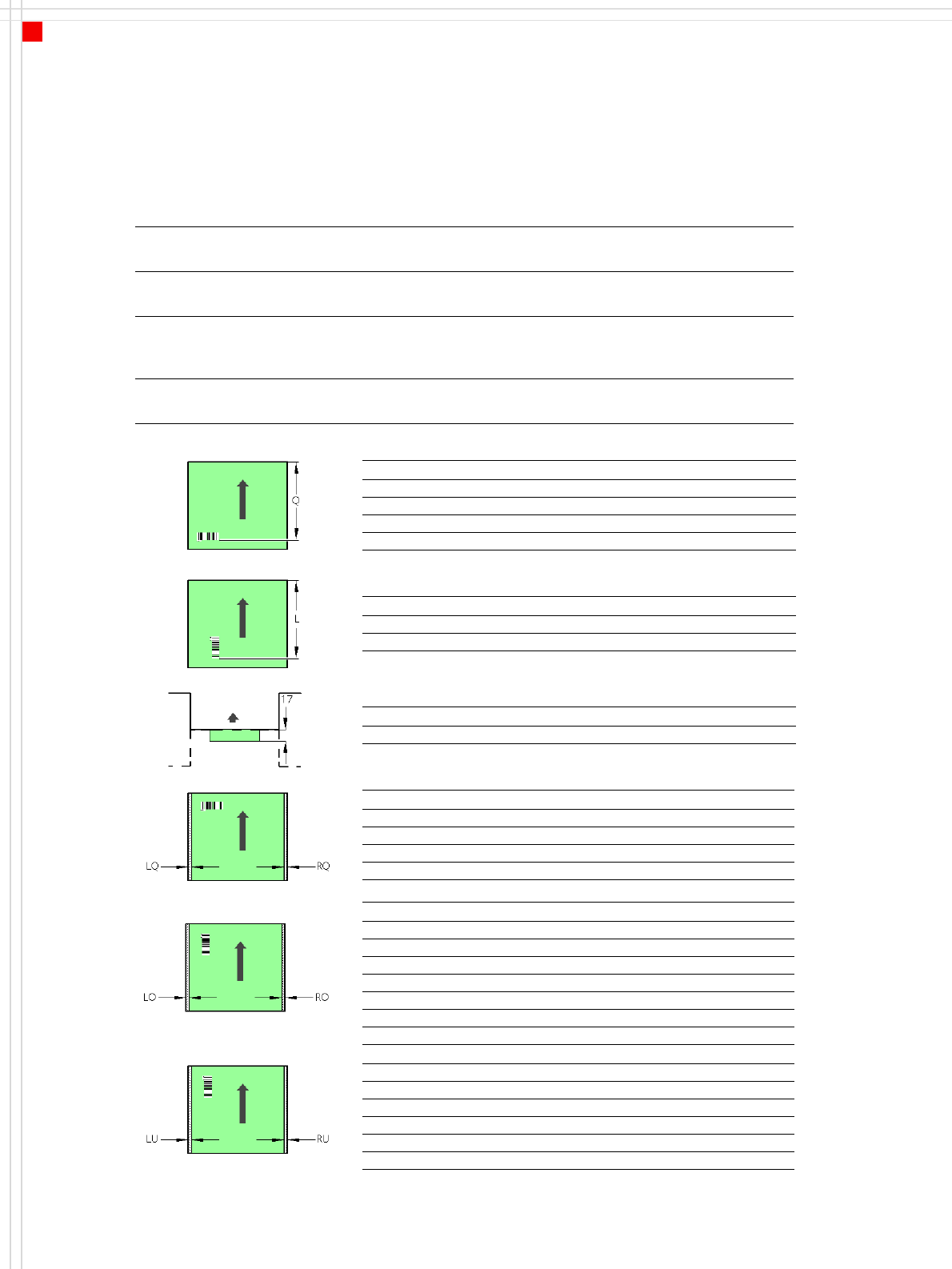

PCB barcode reader Q [mm]
2D on top 390
1D on top 390
2D on bottom 430
1D on bottom 430
PCB barcode reader L [mm]
1D on top 320 - 350
1D on bottom 380 - 410
PCB barcode reader PCB rear projection [mm]
2D on bottom (dual conveyor) 17
PCB barcode reader LQ [mm] RQ [mm]
2D on top 3 3
1D on top 3 3
2D on bottom 5 5
1D on bottom 5 5
PCB dimensions/conveyor LO [mm] RO [mm]
460 mm SC 3 20
508 mm SC 3 44
216 mm DC1 3 24
250 mm DC1, 450 mm SM1 3 58
216 mm DC2 3 3
250 mm DC2, 450 mm SM2 3 3
PCB dimensions/conveyor LU [mm] RU [mm]
460 mm SC 20 3
508 mm SC 44 3
216 mm DC1 3 3
250 mm DC1, 450 mm SM1 3 3
216 mm DC2 24 3
250 mm DC2, 450 mm SM2 58 3
SC - Single conveyor, DC1/2 - Dual conveyor, track 1/2, SM1/2 - Dual conveyor in Single conveyor mode, track 1/2
Downstream
machine
Upstream
machine
PCB
PCB barcode scanner 1D on top
PCB barcode scanner 1D on bottom
25

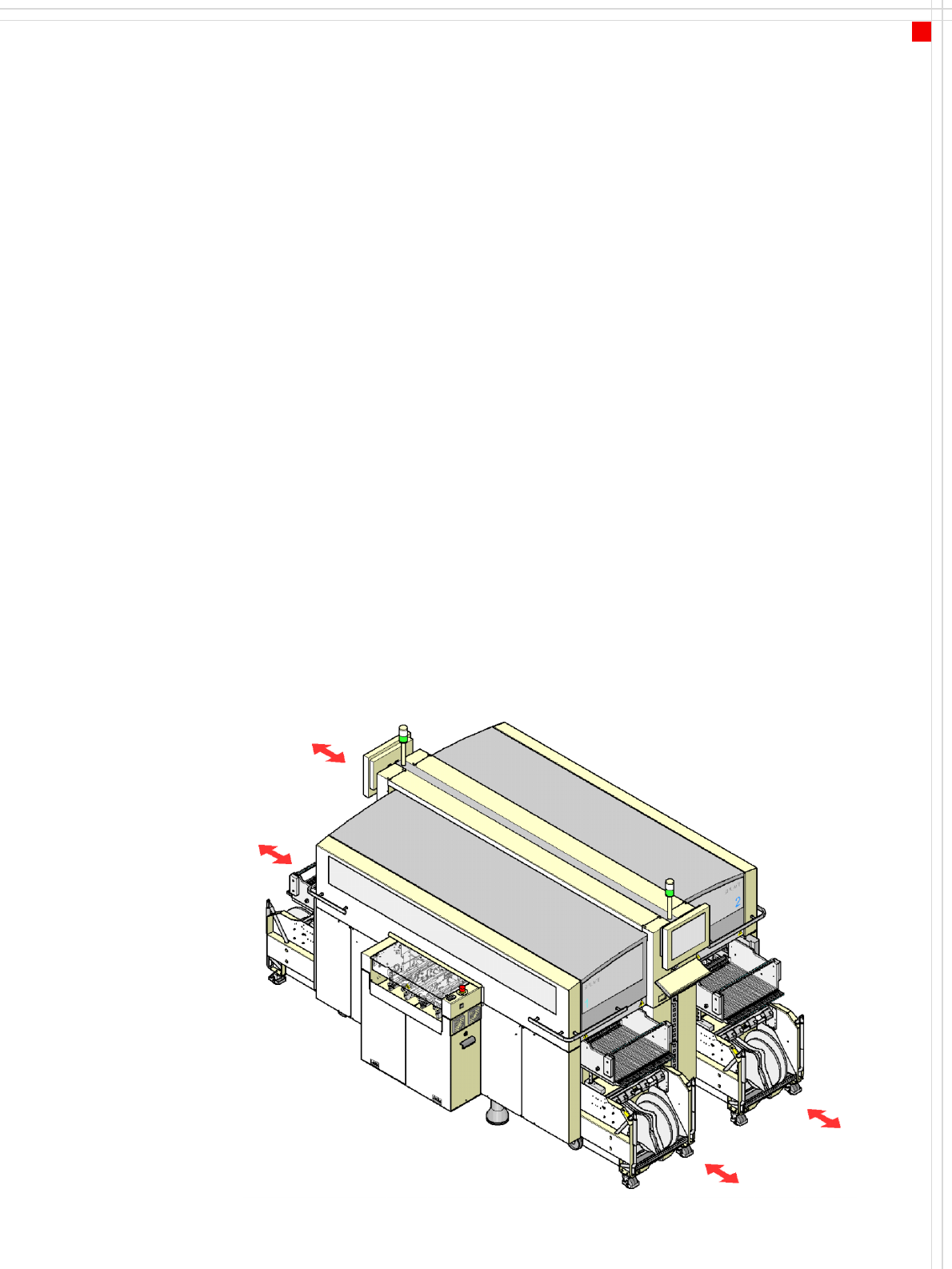

Location 1
Location 3
Location 2
Location 4
Component Feeding
SIPLACE X-Series Component
Changeover Table
Description
The component changeover
tables are stand-alone mod-
ules that can be set up at an
external set-up area with
feeder modules. Up to four
component changeover
tables may be docked in the
machine. A component
changeover table can be
replaced with just a short
interruption of the produc-
tion process. The chassis runs
smoothly and is easy to
maneuver.
The component table has a
capacity of up to 40 locations
for 8 mm X tape feeder mod-
ules. The total capacity with
four component changeover
tables is thus 160 x 8 mm
tracks.
Dummy feeder modules are
used at unassigned locations
to protect the operators.
The component feeders are
at rest during the placement
process - allowing tapes to be
spliced without stopping the
machine.
An optional component bar-
code reader can be used to
scan and check the barcodes
on the tape reels, thus guar-
anteeing that the compo-
nents are allocated to the
correct tracks (traceability).
Component changeover
tables from the SIPLACE HF-
series can also be used.
This means that you can con-
tinue to use the S-series tape
feeder modules and all other
feeder modules from the
same generation, such as
vibratory stick feeders, bulk-
case feeders, Dip modules,
component disposal modules
and surftape feeder modules.
Please note, however, that
the appropriate docking unit
will have to be fitted for com-
ponent changeover tables
from the SIPLACE HF-series.
The SIPLACE HF-series com-
ponent changeover table
cannot be used with the
20-nozzle Collect & Place
head.
26
Component Feeding
Component Changeover Table
Technical Data
*) Not together with the 20-nozzle Collect & Place head
SIPLACE X-series component
changeover table
SIPLACE HF-series component
changeover table*
)
Length x width 752 x 592 mm²
Height for
830 mm PCB conveyor height
900 mm PCB conveyor height
930 mm PCB conveyor height
950 mm PCB conveyor height
820 mm
890 mm
920 mm
940 mm
830 mm
900 mm
930 mm
950 mm
PCB transport height 830 mm ± 15 mm (standard)
900 mm ± 15 mm (SMEMA)
930 mm ± 15 mm (SMEMA)
950 mm ± 15 mm (SMEMA)
830 mm ± 15 mm (standard)
900 mm ± 15 mm (SMEMA)
930 mm ± 15 mm (SMEMA)
950 mm ± 15 mm (SMEMA)
Weight
without feeder modules
with feeder module at all locations
80.4 kg
approx. 139.6 kg
88.9 kg
143.7 kg
Reel diameter
standard
maximum
up to 432 mm (17“)
483 mm (19“)
up to 432 mm (17“)
483 mm (19“)
Locations for feeder modules max. 40 max. 15
Changeover time less than 1 min. less than 1 min.
Communication unit
Waste container
for pieces of used tape
Component
feeder table
Tape container
SIPLACE X-series component changeover table SIPLACE HF-series component changeover table
Waste container
for pieces of used tape
Component
feeder table
Tape container
