30 Comp onent Fee ding Dummy Feeder Modules Dummy feeder m odules for component changeove r tables from the SIPL ACE X-seri es The dummy feeder modu le for the SIPLACE X-series fills one track on th e compone nt changeov…
29
Component Feeding
Bulk Case and Vibratory Stick Feeder Modules
for the SIPLACE HF CO Changeover Table
Technical data
a) Fiducial for feeder module position recognition
Bulk Case feeder modules
a)
Packaging form Bulk case
Feeder rails Chip 0402, CO height: 0.35 mm
Chip 0402, CO height: 0.50 mm
Chip 0603, CO height: 0.45 mm
Chip 0603, CO height: 0.80 mm
Chip 0805, CO height: 0.45 mm
Chip 0805, CO height: 0.60 mm
Chip 0805, CO height: 0.85 mm
Chip 0805, CO height: 1.25 mm
Micro-Melf: 1.05 ± 0.05 mm
Mini-Melf: 1.4 ± 0.1 mm
Location 1 location for 2 different com-
ponent types
Vibratory stick feeder, type
3
with control circuit
Number of tracks and width 3 x 9.5 mm
2 x 15 mm
1 x > 15 mm
1 x 30 mm
Location 1 location
Description
The SIPLACE bulk case feeder
module processes bulk cases
on two tracks. It feeds rectan-
gular and round, passive
components. The PCB maga-
zines (bulk cases) are simply
replaced for refilling - with-
out stopping the machine.
The module essentially con-
sists of the basic element plus
two feeder rails and PCB mag-
azines to suit the component
type and height. The compo-
nents are separated and fed
along the rails by compressed
air.
The principle of the fixed
component table has proven
its worth, even when bulk
cases are used: the vibrations
that can occur with other
placement machine concepts
can have a highly detrimental
effect on the component
quality due to abrasion, for
example.
Even with stick magazines,
the stationary component
supply has significant advan-
tages: the universal vibratory
stick feeder can be topped up
during placement.
Bulk case feeder modules and
vibratory stick feeders can
only be used on the compo-
nent changeover table for
the SIPLACE HF-series.
S tape feeder modules, bulk
case feeder modules and
vibratory stick feeders cannot
be used together with the
20-segment Collect & Place
head.

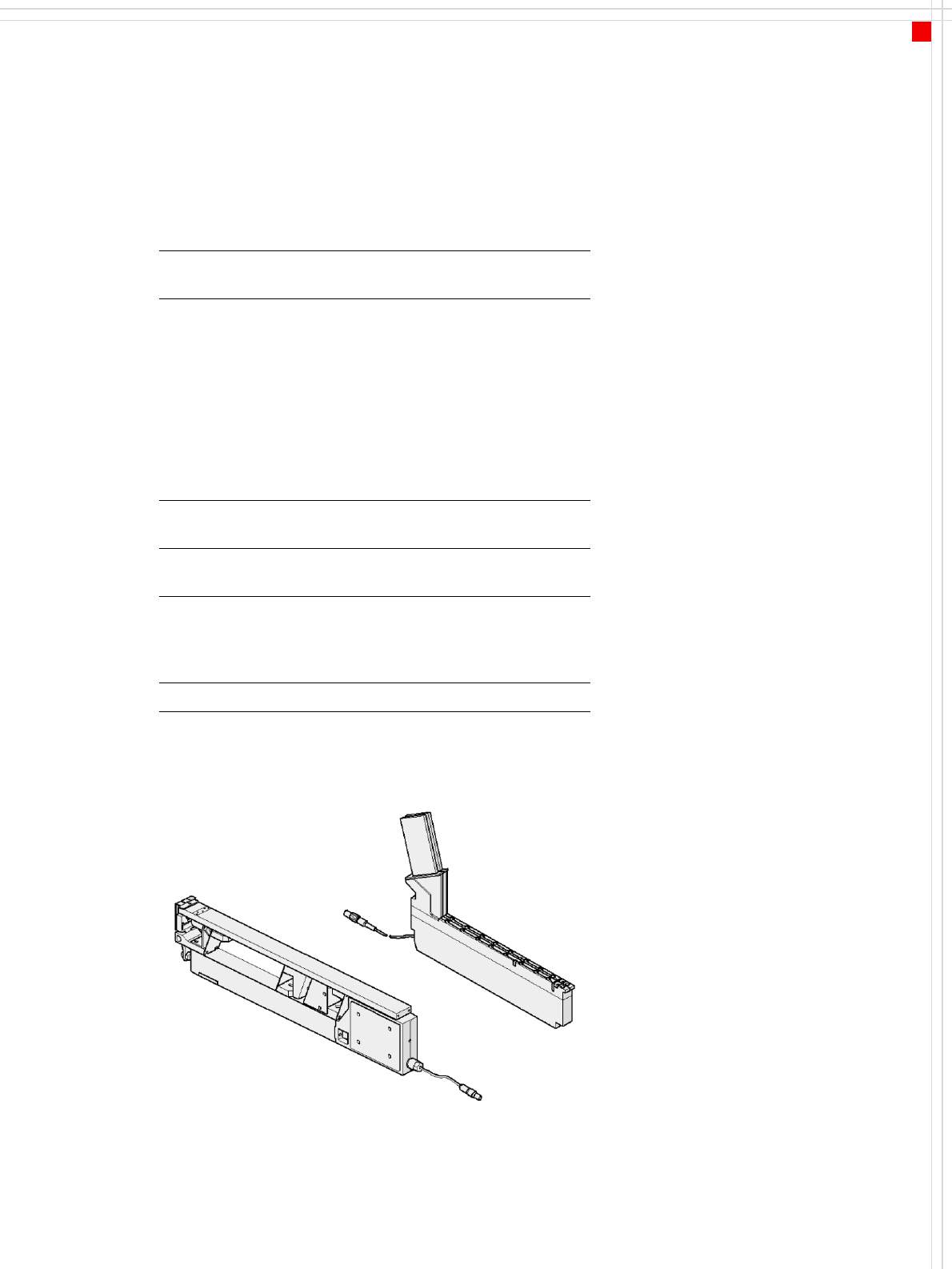

Bulk case feeder module
Vibratory -
stick feeder, type 3
30
Component Feeding
Dummy Feeder Modules
Dummy feeder modules for component changeover tables
from the SIPLACE X-series
The dummy feeder module for the SIPLACE X-series fills one
track on the component changeover table.
Dummy feeder modules for component changeover tables
from the SIPLACE HF-series
The following dummy feeder module variants are available for
component changeover tables from the SIPLACE HF-series:
SIPLACE dummy feeder module for 1 location
SIPLACE dummy feeder module for 6 - 10 locations
SIPLACE dummy feeder module for 11 - 20 locations
Dummy feeder module for one track
Dummy feeder module for 1 location
Dummy feeder module for
6 - 10 locations
Dummy feeder module for
11 - 20 locations
Danger
To ensure that your SIPLACE
placement machine runs
safely, a feeder must be
assigned to every location on
the component changeover
table. If you do not have
enough feeder modules,
then you should use dummy
feeder modules as space
holders.
31
Component Feeding
Manual Trays
Manual tray
Component feeder table
Waffle tray
Technical data
Manual tray - possible positions
Sizes 136 x 360 mm²; requires 5 locations
260 x 360 mm²; requires 9 locations
Max. tray
height
12.5 mm, including component
Parts Waffle tray carrier
Tray holder
JEDEC waffle
tray
Directly in the waffle tray carrier
136 mm wide
Description
The manual tray is a device
for holding JEDEC trays used
to supply components. The
waffle trays are changed
manually. The manual tray is
placed on the component
feeder table just like a feeder
module. There are two differ-
ent versions of the waffle-
pack tray: one fills 5 locations
and the other 9 locations on
the component table.
The manual tray is fitted at
locations 2 and 4 on X2
machines, but just at location
3 on X3 machines. If a nozzle
changer is installed at loca-
tion 2, a manual tray cannot
be used.
The manual tray can only be
used on component change-
over tables from the SIPLACE
HF-series.
The manual tray set-up is
recommended if there are
just a few component types
to be placed from a tray.
