Component Feeding

Manual Trays

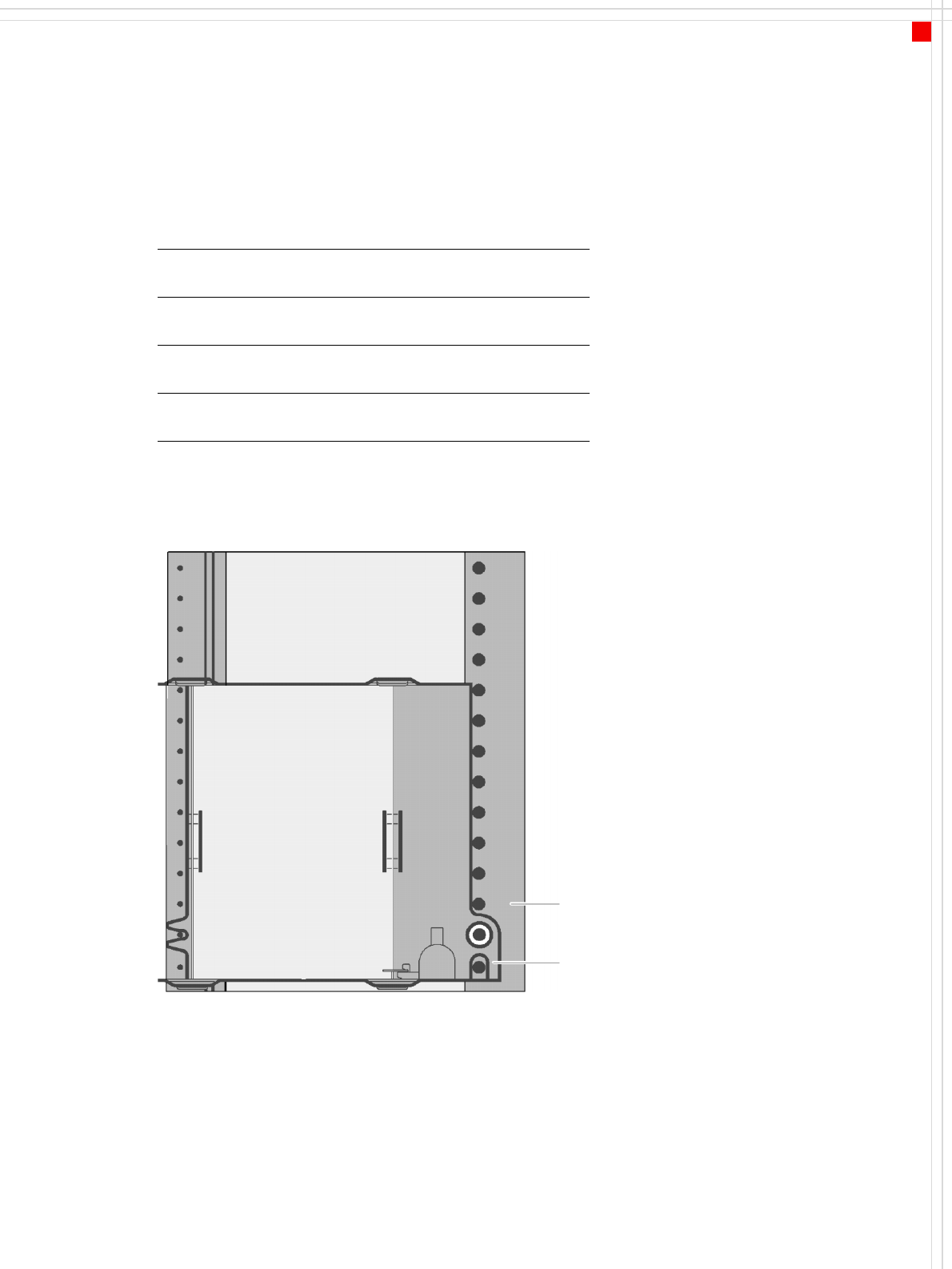

Manual tray

Component feeder table

Waffle tray

Technical data

Manual tray - possible positions

Sizes 136 x 360 mm²; requires 5 locations

260 x 360 mm²; requires 9 locations

Max. tray

height

12.5 mm, including component

Parts Waffle tray carrier

Tray holder

JEDEC waffle

tray

Directly in the waffle tray carrier

136 mm wide

Description

The manual tray is a device

for holding JEDEC trays used

to supply components. The

waffle trays are changed

manually. The manual tray is

placed on the component

feeder table just like a feeder

module. There are two differ-

ent versions of the waffle-

pack tray: one fills 5 locations

and the other 9 locations on

the component table.

The manual tray is fitted at

locations 2 and 4 on X2

machines, but just at location

3 on X3 machines. If a nozzle

changer is installed at loca-

tion 2, a manual tray cannot

be used.

The manual tray can only be

used on component change-

over tables from the SIPLACE

HF-series.

The manual tray set-up is

recommended if there are

just a few component types

to be placed from a tray.

Component Feeding

Matrix Tray Changer

Description

For numerous tray fed com-

ponents we recommend an

automatic tray change using

a matrix tray changer (MTC).

The MTC set-up is precisely

matched to the placement

sequence in order to opti-

mize the timings and dis-

tances traveled.

Two bins with component

trays move independently of

one another in the vertical di-

rection until the desired mag-

azine is within the range of

the feed axis. The horizontal

feed axis transports the tray

from the bin to within the

range of the placement head.

The first magazine is made

available as soon as a PCB

moves onto the PCB convey-

or, and valid panel and set-up

data is available. All other

magazine changes are car-

ried out time-neutrally dur-

ing the placement process.

The magazines can be refilled

without stopping the

machine. Defective compo-

nents are returned to the

original tray.

The matrix tray changer can-

not be used with the 20-

nozzle Collect & Place head.

Tray supply 2

Tray supply 1

Feed

axis 1

Feed

axis 2

Component Feeding

Matrix Tray Changer

Technical Data

* Waffle-pack tray carrier

Tray supply 1 (XL) Tray supply 2

Dimensions

Length x width

Height

1305 x 600 mm²

1490 mm for 830 mm PCB transport height

1560 mm for 900 mm PCB transport height

1590 mm for 930 mm PCB transport height

1640 mm for 950 mm PCB transport height

Weight (basic equipment) approx. 500 kg (with PCB magazines

and waffle tray carriers)

Weight (fully equipped) approx. 534 kg (with components)

Weight (moving mass) approx. 80 kg approx. 43.5 kg

PCB magazine size (L x W x H) 391.2 x 305.6 x 93.3 mm³ 352.7 x 154.8 x 133.8 mm³

PCB magazine weight

(fully equipped)

(without waffle tray carrier)

approx. 11 kg

approx. 1.7 kg

approx. 7.5 kg

approx. 1.35 kg

Weight of the

waffle tray carrier

850 g 150 g

Dimensions of the

waffle tray carrier (L x W x H) 386.5 x 295.8 x 11.1 mm³ 371 x 146 x 10.1 mm³

Distance from PCB magazine to

magazine

96 mm 135 mm

Distance from level to level 12 mm 11.8 mm

Vertical travel 444 mm (1st to 30th waffle

tray carrier)

511.2 mm (1st to 40th waffle

tray carrier)

Horizontal travel between out-

going and pick-up position approx. 647 mm approx. 638 mm

Storage capacity 30 XL waffle-pack tray

carriers with 60 JEDEC or

30 special magazines of

maximum size

40 waffle tray carriers with

40 JEDEC waffle trays

Changeover time (over 5 levels) approx. 2 sec approx. 1.5 sec

Max. height of component and

waffle tray, including tolerances

all levels filled

one level free

two levels free

8.5 mm

19.5 mm

31.5 mm

8.5 mm

19.5 mm
