Component Feeding

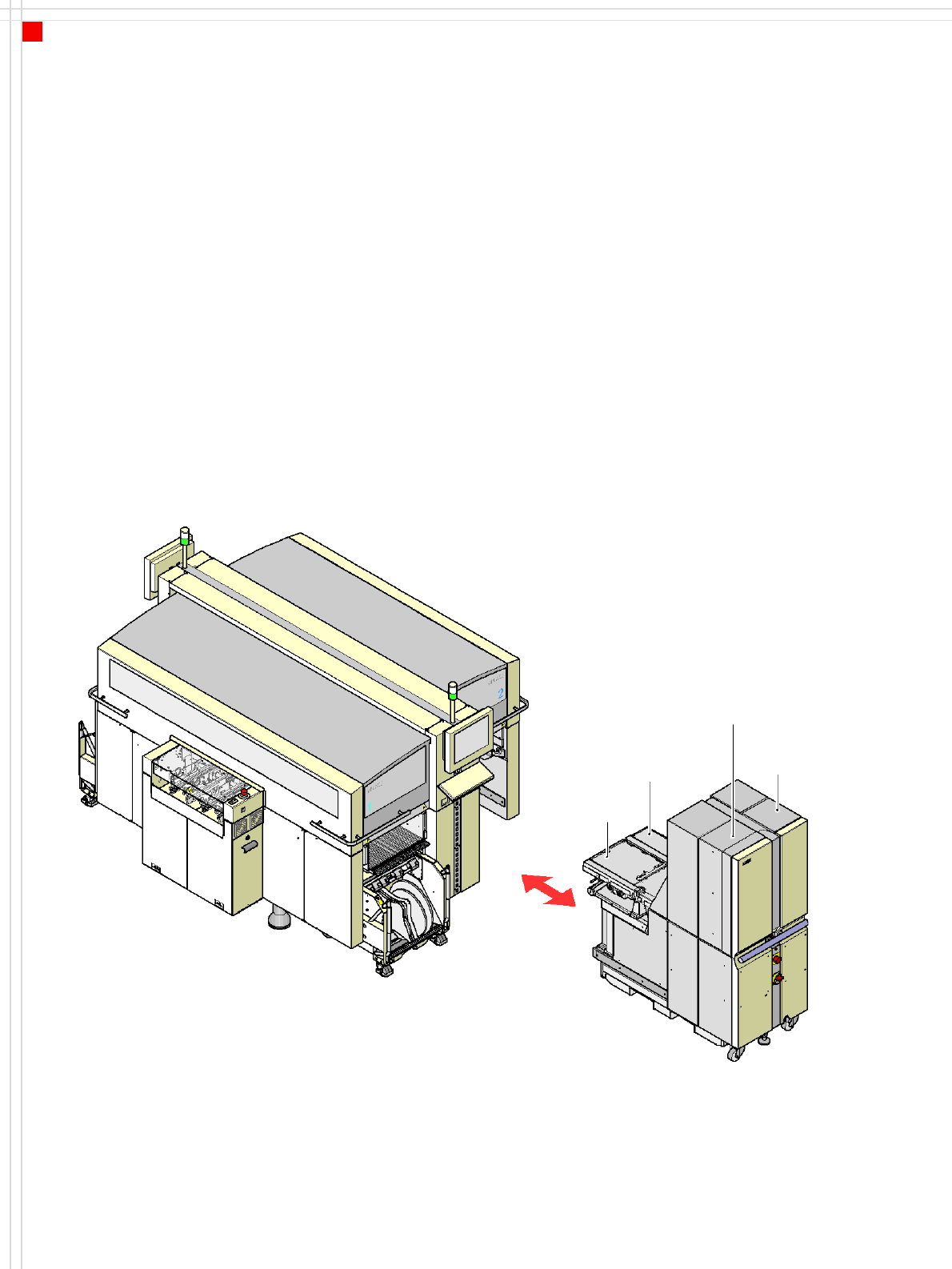

Matrix Tray Changer

Description

For numerous tray fed com-

ponents we recommend an

automatic tray change using

a matrix tray changer (MTC).

The MTC set-up is precisely

matched to the placement

sequence in order to opti-

mize the timings and dis-

tances traveled.

Two bins with component

trays move independently of

one another in the vertical di-

rection until the desired mag-

azine is within the range of

the feed axis. The horizontal

feed axis transports the tray

from the bin to within the

range of the placement head.

The first magazine is made

available as soon as a PCB

moves onto the PCB convey-

or, and valid panel and set-up

data is available. All other

magazine changes are car-

ried out time-neutrally dur-

ing the placement process.

The magazines can be refilled

without stopping the

machine. Defective compo-

nents are returned to the

original tray.

The matrix tray changer can-

not be used with the 20-

nozzle Collect & Place head.

Tray supply 2

Tray supply 1

Feed

axis 1

Feed

axis 2

Component Feeding

Matrix Tray Changer

Technical Data

* Waffle-pack tray carrier

Tray supply 1 (XL) Tray supply 2

Dimensions

Length x width

Height

1305 x 600 mm²

1490 mm for 830 mm PCB transport height

1560 mm for 900 mm PCB transport height

1590 mm for 930 mm PCB transport height

1640 mm for 950 mm PCB transport height

Weight (basic equipment) approx. 500 kg (with PCB magazines

and waffle tray carriers)

Weight (fully equipped) approx. 534 kg (with components)

Weight (moving mass) approx. 80 kg approx. 43.5 kg

PCB magazine size (L x W x H) 391.2 x 305.6 x 93.3 mm³ 352.7 x 154.8 x 133.8 mm³

PCB magazine weight

(fully equipped)

(without waffle tray carrier)

approx. 11 kg

approx. 1.7 kg

approx. 7.5 kg

approx. 1.35 kg

Weight of the

waffle tray carrier

850 g 150 g

Dimensions of the

waffle tray carrier (L x W x H) 386.5 x 295.8 x 11.1 mm³ 371 x 146 x 10.1 mm³

Distance from PCB magazine to

magazine

96 mm 135 mm

Distance from level to level 12 mm 11.8 mm

Vertical travel 444 mm (1st to 30th waffle

tray carrier)

511.2 mm (1st to 40th waffle

tray carrier)

Horizontal travel between out-

going and pick-up position approx. 647 mm approx. 638 mm

Storage capacity 30 XL waffle-pack tray

carriers with 60 JEDEC or

30 special magazines of

maximum size

40 waffle tray carriers with

40 JEDEC waffle trays

Changeover time (over 5 levels) approx. 2 sec approx. 1.5 sec

Max. height of component and

waffle tray, including tolerances

all levels filled

one level free

two levels free

8.5 mm

19.5 mm

31.5 mm

8.5 mm

19.5 mm

Component Feeding

Matrix Tray Changer

Technical data

Electrical ratings

Noise emissions

Permitted environmental factors

Supply voltage 3 x 400 VAC, 50 Hz (Europe)

3 x 208 VAC, 60 Hz (USA)

Total power 1.5 kW

Rated current 2.7 A at 3 x 400 VAC

4.2 A at 3 x 208 VAC

Fuses 3 x 16 A

Rated power consumption of the largest consumer 2 A

Maximum noise emissions 74 dB (A)

Room temperature between 15 °C and 35 °C

Atmospheric humidity 30 - 75 %

(No higher than 45% on average to prevent any

possibility of condensation on the machine)
