Technical Data
Maneuvering Radii
MTC Dimensions and Set-Up Conditions
47
Technical Data

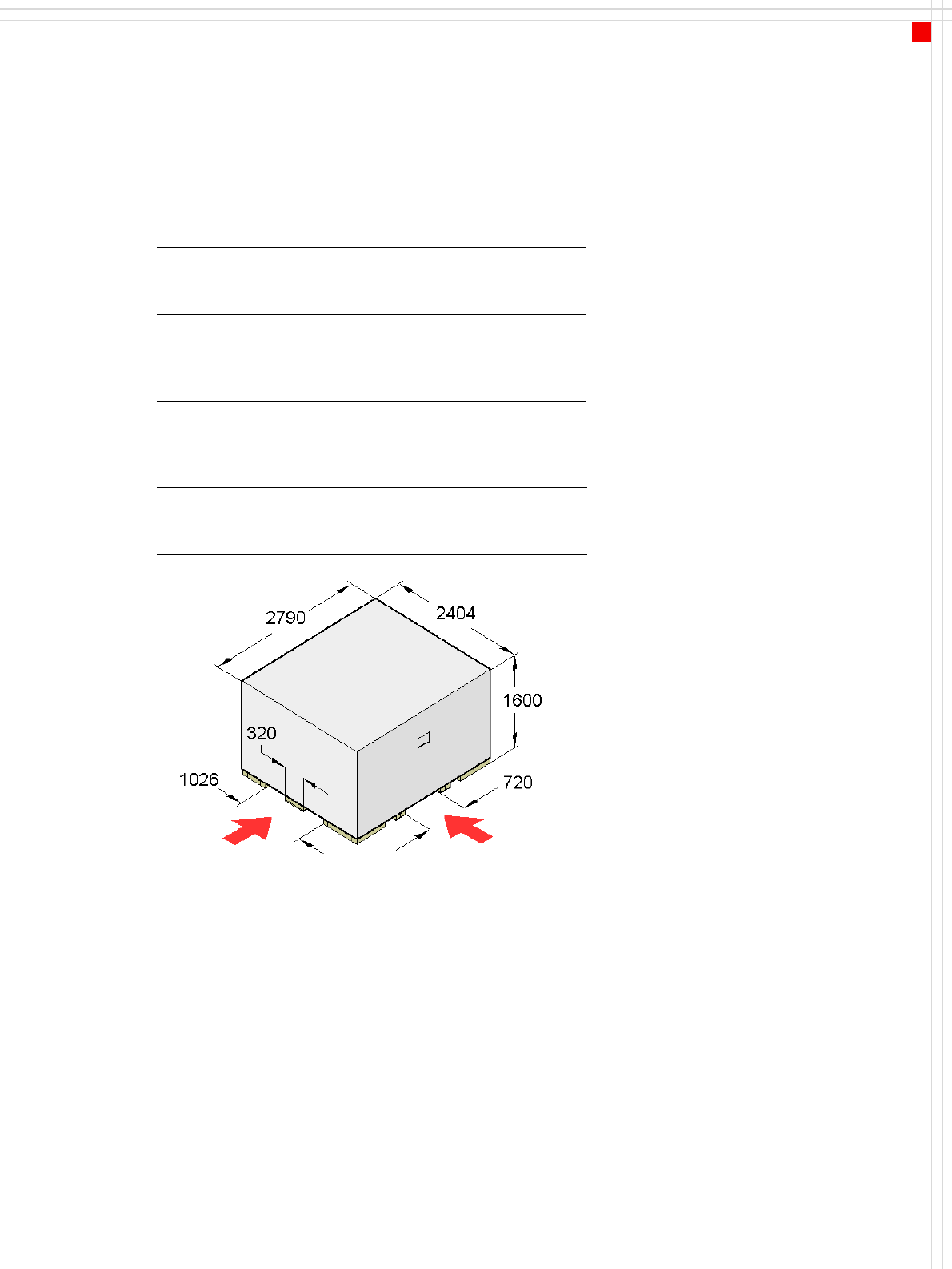

Transport and Delivery Configuration
Engagement point
for the fork-lift
Engagement point
for the fork-lift
Description
The placement machine is
supplied in a wooden crate,
mounted on a stable wooden
pallet.
Configuration when deliv-
ered
• The extension kit on the
PCB input side and the
computer unit are discon-
nected from the basic
machine.
• All electrical cables to the
basic machine are discon-
nected.
• Each track on the single or
dual conveyor is set to a
width of 136 mm.
• The input conveyors of the
single and dual conveyor
are dismantled. The electri-
cal cables to the conveyor
motors and light barriers
are disconnected.
• Both keyboards and the
monitors are disconnect-
ed.
• The main fault indicator is
dismantled.
Transport dimensions and weight
Means of transport
A fork-lift truck with the following specification will be needed
to carry the machine in its crate:
Length
Width
Height
2404 mm
2790 mm
1600 mm
Weight
X4
X3
X2
Dispatch within EuropeDispatch overseas
4004 kg 4504 kg
3980 kg 4420 kg
3836 kg 4336 kg
Fork length
Lifting power
Clear fork width
min. 1800 mm
min. 6000 kg
min. 350 mm
48

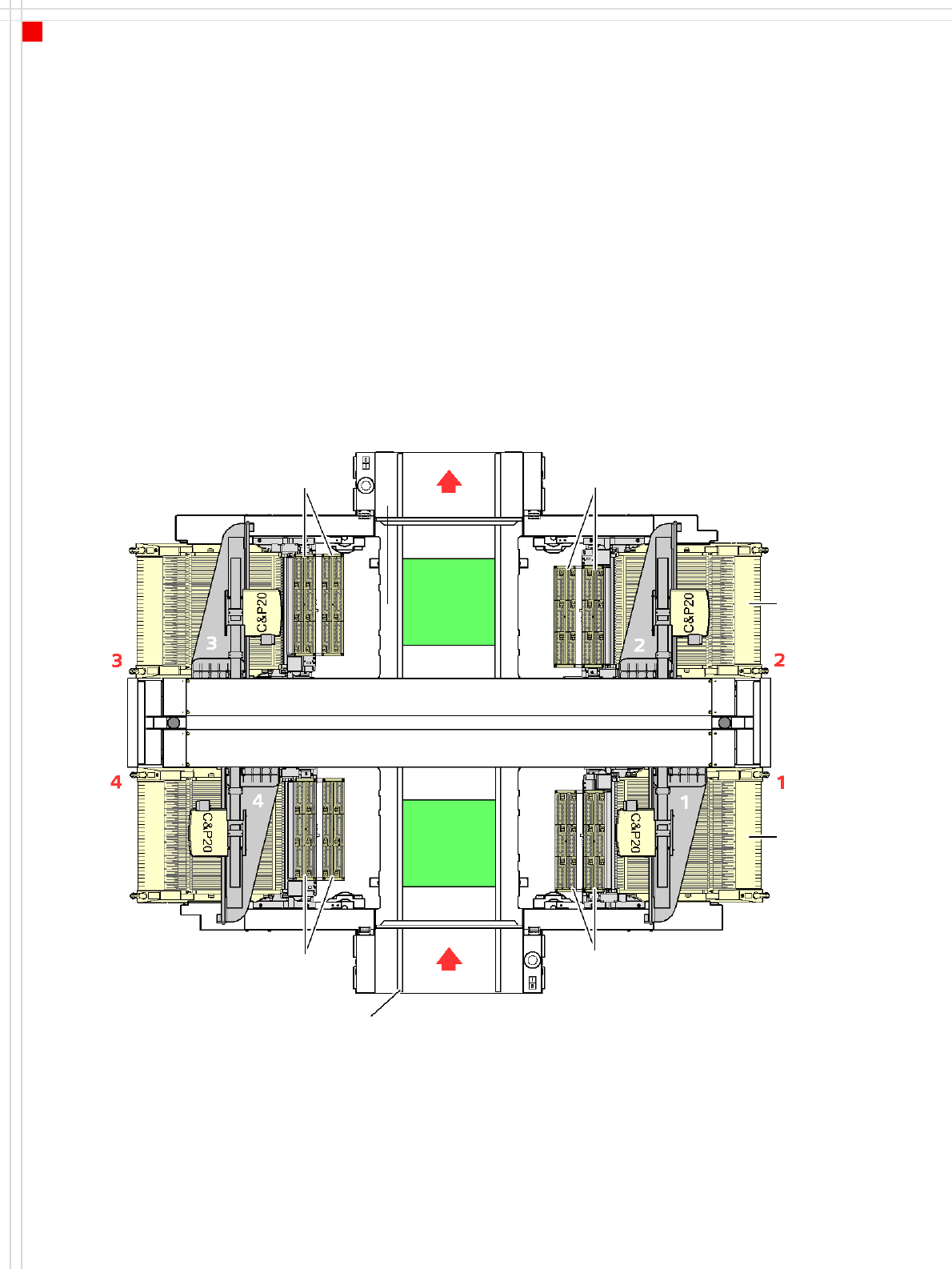

Sample Configuration
Services
As a service, SIEMENS L&A
can fully integrate the
SIPLACE X placement
machine into your produc-
tion line. With our extensive
expertise and by using the
right tools and equipment,
we can ensure that the instal-
lation process runs smoothly
and efficiently. However, this
will require you to clarify the
infrastructure aspects in ad-
vance and make any
necessary changes at your
production facility.
Safety instructions
Read the operating instruc-
tions before starting to set up
and commission the place-
ment machine. The applica-
ble accident prevention
regulations concerning the
transportation of heavy
goods must be followed.
PCB transport direction
Nozzle changer C&P20Nozzle changer C&P20
SIPLACE X CO
changeover table
with 40 locations
Nozzle changer C&P20
5-part conveyor belt
with automatic width adjustment
from 50 mm to 508 mm (2“ to 20“)
Nozzle changer C&P20
SIPLACE X CO
changeover table
with 40 locations
