9 Line Concept Description Description SIPLACE X machines allow a production l ine to be individ - ually configured from a range of identical and different modules. As th e production require ments change, th e individua…

Machine Description

Technical Data

*) The HF-series component changeover table and feeder modules cannot be used together with the

20-nozzle Collect & Place head.

Component height C&P20: 4 mm (larger heights on request)

C&P12: 6 mm (larger heights on request)

C&P6: 8.5 mm (larger heights on request)

TH: 25 mm (larger heights on request)

Placement accuracy / angular accuracy C&P20: ± 41 µm, ± 0.5° / (3σ), ± 55 µm, ± 0.7° / (4σ)

C&P12: ± 45 µm, ± 0.5° / (3σ), ± 60 µm, ± 0.7° / (4σ)

C&P12: ± 41 µm, ± 0.5° / (3 σ), ± 55 µm, ± 0.7° / (4 σ) (high-res. camera)

C&P6: ± 45 µm, ± 0.2° / (3σ), ± 60 µm, ± 0.3° / (4σ)

TH: ± 26 µm, ± 0.05° / (3σ), ± 35 µm, ± 0.07° / (4σ) (fine-pitch camera)

± 22 µm, ± 0.05° / (3σ), ± 30 µm, ± 0.07° / (4σ) (flip-chip camera)

Component Feeding

(SIPLACE X-series component

changeover table)

4 component changeover tables with tape reel holders and integral waste

containers

40 x 8 mm feeder module locations per CO changeover table or matrix tray

changer in place of CO changeover tables, X2: 2 MTC2, X3: 1 MTC2

Feeder module types (X-series) Component tapes

Feeding capacity

(SIPLACE X-series component

changeover table)

160 8 mm X feeder modules

80 12 mm X feeder modules

64 16 mm X feeder modules

64 24 mm X feeder modules

40 32 mm X feeder modules

32 44 mm X feeder modules

24 56 mm X feeder modules

20 72 mm X feeder modules

16 88 mm X feeder modules

Component Feeding

(HF-series component

changeover table

)

4 component changeover tables with tape reel holders and integral waste

containers

15 slots, 30 mm wide per changeover table or matrix tray changer, rather

than component changeover tables, X2: 2 MTC2, X3: 1 MTC2

Feeder module types

(HF-series

)

Tapes, bulk cases, stick magazines, application-specific OEM feeder mod-

ules, surftape feeder modules (8, 12, 16 mm), manual trays

Feeding capacity

(HF-series component

changeover table

)

60 tape feeder modules 3 x 8 mm S (180 tracks)

60 tape feeder modules 2 x 8 mm S (120 tracks)

60 tape feeder modules 12/16 mm S

40 tape feeder modules 24/32 mm S

28 tape feeder modules 44 mm S

24 tape feeder modules 56 mm S

20 tape feeder modules 72 mm S

16 tape feeder modules 88 mm S

PCB format

(LxW)

PLEASE NOTE:

With PCB widths > 450 mm make sure

that the peripheral modules are also

able to process these widths.

Single Conveyor

50 x 50 mm² to 450 x 508 mm²

50 x 80 mm² to 610 x 508 mm² ("Long board" option)

Dual conveyor

50 x 50 mm² to 450 x 250 mm²

50 x 80 mm² to 610 x 250 mm² ("Long board" option)

Dual conveyor in Single conveyor mode

50 x 50 mm² to 450 x 450 mm²

50 x 80 mm² to 610 x 450 mm² ("Long board" option)

PCB thickness 0.3 - 4.5 mm (thicker PCBs on request)

Dimensions of the placement systems see figure page 45

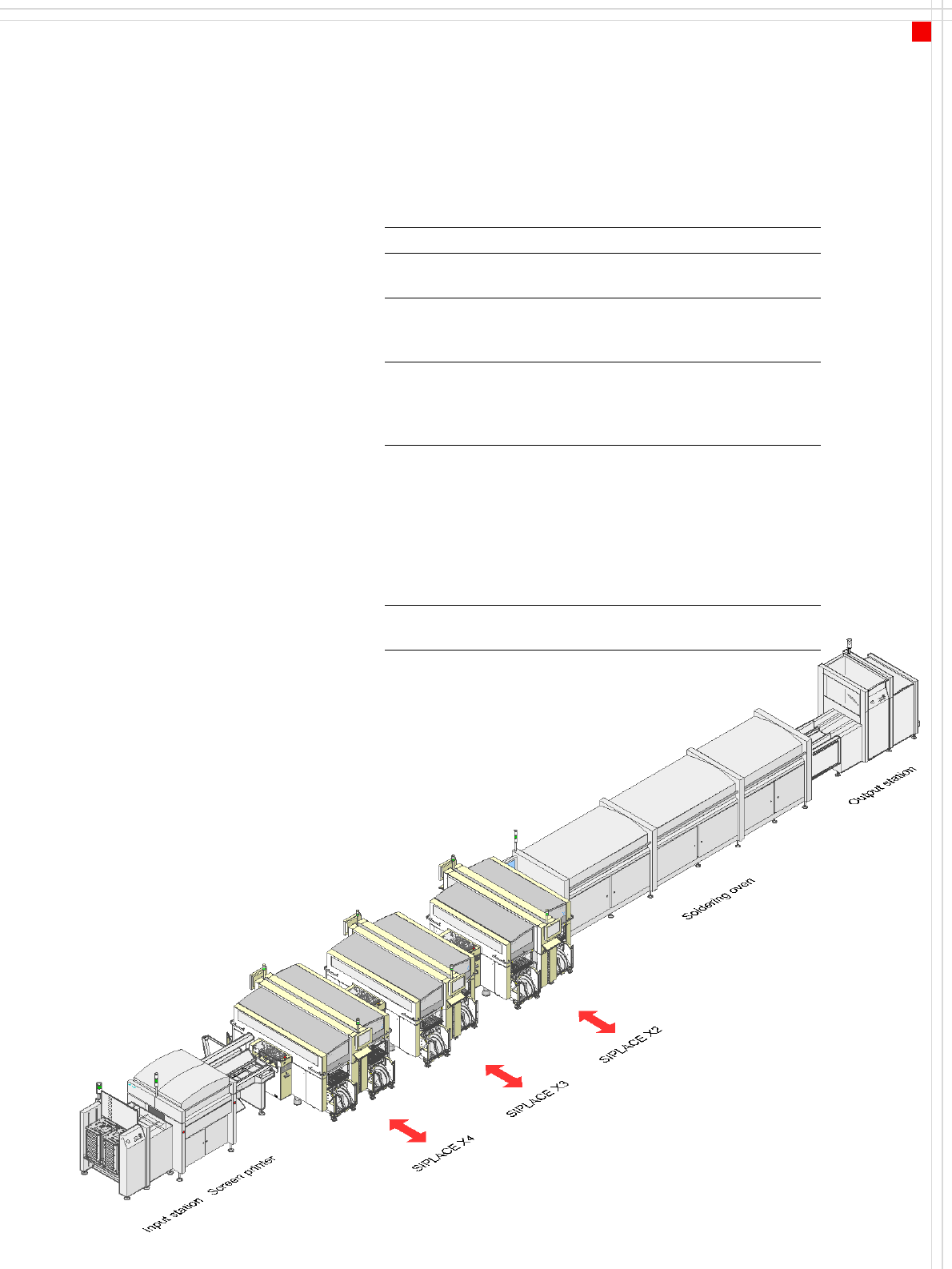

Line Concept

Description

SIPLACE X machines allow a

production line to be individ-

ually configured from a range

of identical and different

modules. As the production

requirements change, the

individual placement

system - which are both mod-

ular and compact - can be

quickly recombined without

great effort.

The SIPLACE X family has ex-

actly the right placement sys-

tem, whatever the output

requirements:

SIPLACE X placement

systems cover the SMD spec-

trum of components from

0201 to 125 x 10 mm² with a

high placement rate.

SIPLACE set-up optimiza-

tion is a tool for increasing

the line's productivity.

The software calculates indi-

vidual set-ups for individual

products, individual set-ups

for different products and

family set-ups for different

products.

The program data can be

exchanged between the indi-

vidual lines - even for

different machine configura-

tions.

System SIPLACE SMD placement lines

Placement

modules

SIPLACE X2, X3 or X4

Peripheral

modules

Input/output stations, screen printers,

soldering ovens, inspection stations, etc,

available from Siemens L&A

Component

range

0201 to 85 x 85 mm² / 125 x 10 mm² max.

200 x 125 mm² (with restrictions). The

range of components depends on which

head configuration is selected.

PCB conveyor Single and dual conveyor with automatic

width adjustment unit;

Dual conveyor in Single conveyor mode;

"Wide board“ mode, "Long board" option

and combinations thereof for both PCB

conveyors. The maximum PCB width is

determined by the module with the small-

est PCB conveyor width.

Space

required

6.0 m² for the X2 module,

6.7 m² per X3 or X4 module

Placement Heads

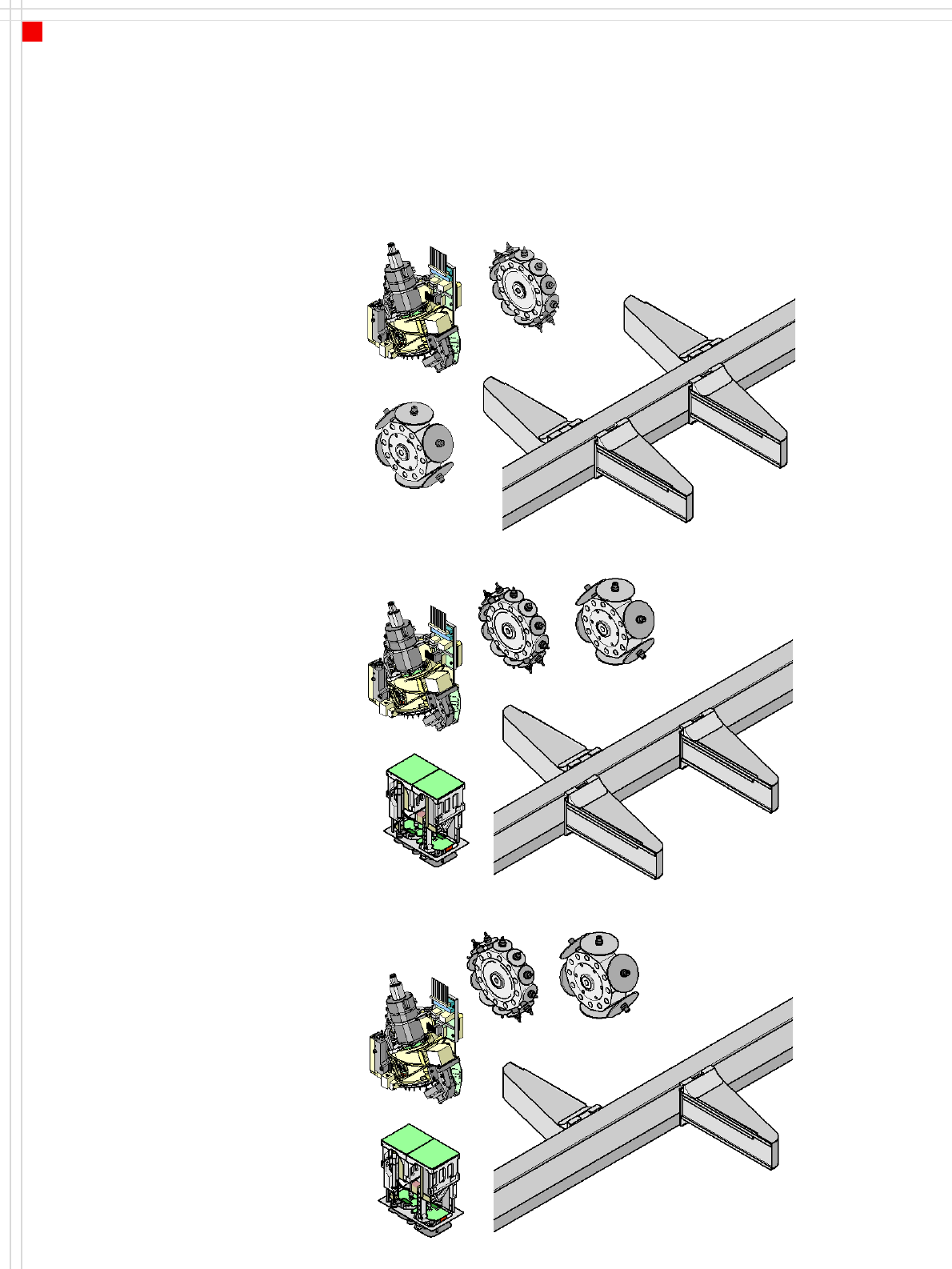

Head Modularity

Description

SIPLACE X machines are char-

acterized by their excellent

flexibility in the production

process. This flexibility is

partly due to the head mod-

ularity. Different placement

head variants can be config-

ured to suit the production

requirements. The illustra-

tions show the placement

head variants for the SIPLACE

X2, X3 and X4 machines.

Section "Machine Description

- Technical Data - “ from page

5 contains a list of placement

head configurations and

placement rates.

There is also a reconfigura-

tion kit if you wish to change

the placement head locally.

This package contains the

appropriate nozzle changers,

assembly parts, cables, etc, in

addition to the placement

head.

C&P12

C&P6

Placement area 2

C&P20/C&P12/C&P6

C&P20

Placement area 1

SIPLACE X4

SIPLACE X3

C&P12

Placement area 2

C&P20/C&P12/C&P6/TH

C&P20/C&P12/C&P6

C&P6

Placement area 1

C&P20

SIPLACE X2

C&P12

Placement area 2

C&P20/C&P12/C&P6/TH

C&P6

Placement area 1

C&P20
