GEM Manual for DEK Printers Appendix A
Issue 1.6 January 22, 2018 Page 164 of 171
Remote Command Parameters:
PP_SELECT Parameters
CPNAME (ASCII) DESCRIPTION CPVAL type min-max
RECEIVED_FILE_NAME Name of the process program to use. ASCII
RENAME_PRODUCT Parameters
CPNAME (ASCII) DESCRIPTION CPVAL type min-max
OLD_FILE_NAME The old name of the process program. ASCII
NEW_FILE_NAME The new name of the process program. ASCII
ADJUST PARAMETER Parameters
CPNAME (ASCII) S2F21 DESCRIPTION CPVAL
type
Range Resol.
ADJUST_PASTE 0 Adjusts paste dispense rate. F8, none 0-100 1
ADJUST_FRONT_SPEED 1 Adjusts front print speed. F8, mm/s 2-300
1
ADJUST_REAR_SPEED 2 Adjusts rear print speed. F8, mm/s 2-300
1
ADJUST_FRONT_P 3 Adjusts forward print pressure. F8, Kg 0-20 0.2
ADJUST_REAR_P 4 Adjusts reverse print pressure. F8, Kg 0-20 0.2
ADJUST_PROFLOW_PRESS 5 Adjusts Proflow print pressure. F8, Kg 0-20
0.2
ADJUST_GAP 6 Adjusts print gap. F8, mm 0-6 0.025
ADJUST_SEPARATE 7 Adjusts separation speed. F8, mm/s 0.1–20 0.1
ADJUST_CLEAN 8 Adjusts clean screen rate. F8, none
0−200 1
ADJUST_CLEAN_2 - Adjusts clean screen rate 2. F8, none
0−200 1
ADJUST_FWD_X 9 Adjusts forward X offset. F8, mm
±
1
0.004
ADJUST_FWD_Y 10 Adjusts forward Y offset. F8, mm
±
1
0.004
ADJUST_FWD_T 11
Adjusts forward
θ
offset.
F8, arcsec
±10
00
2
ADJUST_REV_X 12 Adjusts reverse X offset. F8, mm
±
1
0.004
ADJUST_REV_Y 13 Adjusts reverse Y offset. F8, mm
±
1
0.004
ADJUST_REV_T 14
Adjusts reverse
θ
offset.
F8, arcsec
±10
00
2
CHANGE_SCREEN Parameters
CPNAME =
“CHANGE_METHOD”
DESCRIPTION CPVAL type
CPVAL = “AUTO” Exchange the screen in the printer (if present) with one in
the autochanger. Load the new screen to the position
specified by the process program.
ASCII
CPVAL = “MAN_LOAD” Load the screen in the printer to the position specified by the
process program.
ASCII
GEM Manual for DEK Printers Appendix B
Issue 1.6 January 22, 2018 Page 165 of 171
11 Appendix B
Operator instructions for configuring and using GEM on DEK printers.
11.1 Network Configuration
The GEM IP Address for the machine must be set up in the DekSECSII.cfg file, this can be checked
and edited if necessary in the configuration file E:\Config\DekSECSII.cfg.
NOTE: for older versions of printer software, the location of the DekSECSII.cfg file may be
D:\Program Files\DEK\MachineControl\Printer.
Set the PASSIVE ENTITY IP ADDRESS to the printer’s IP Address.
The IP Address can be obtained by using the ipconfig command at the command prompt.
If there is more than one printer communicating with the GEM host, set the DEVICEID differently for
each printer. The default value is 0x109 (265). Alternate DEVICEID values should be chosen within
the range 0x0000 – 0x7FFF (0 – 32767).
GEM Manual for DEK Printers Appendix B
Issue 1.6 January 22, 2018 Page 166 of 171
11.2 Enabling GEM
Classic User Interface
From the Ready page:
1. Select Maintenance (F8)
2. Select Set Prefs (F5)
3. Change the value of Host Comms to GEM
4. Select Enable Comms (F1).

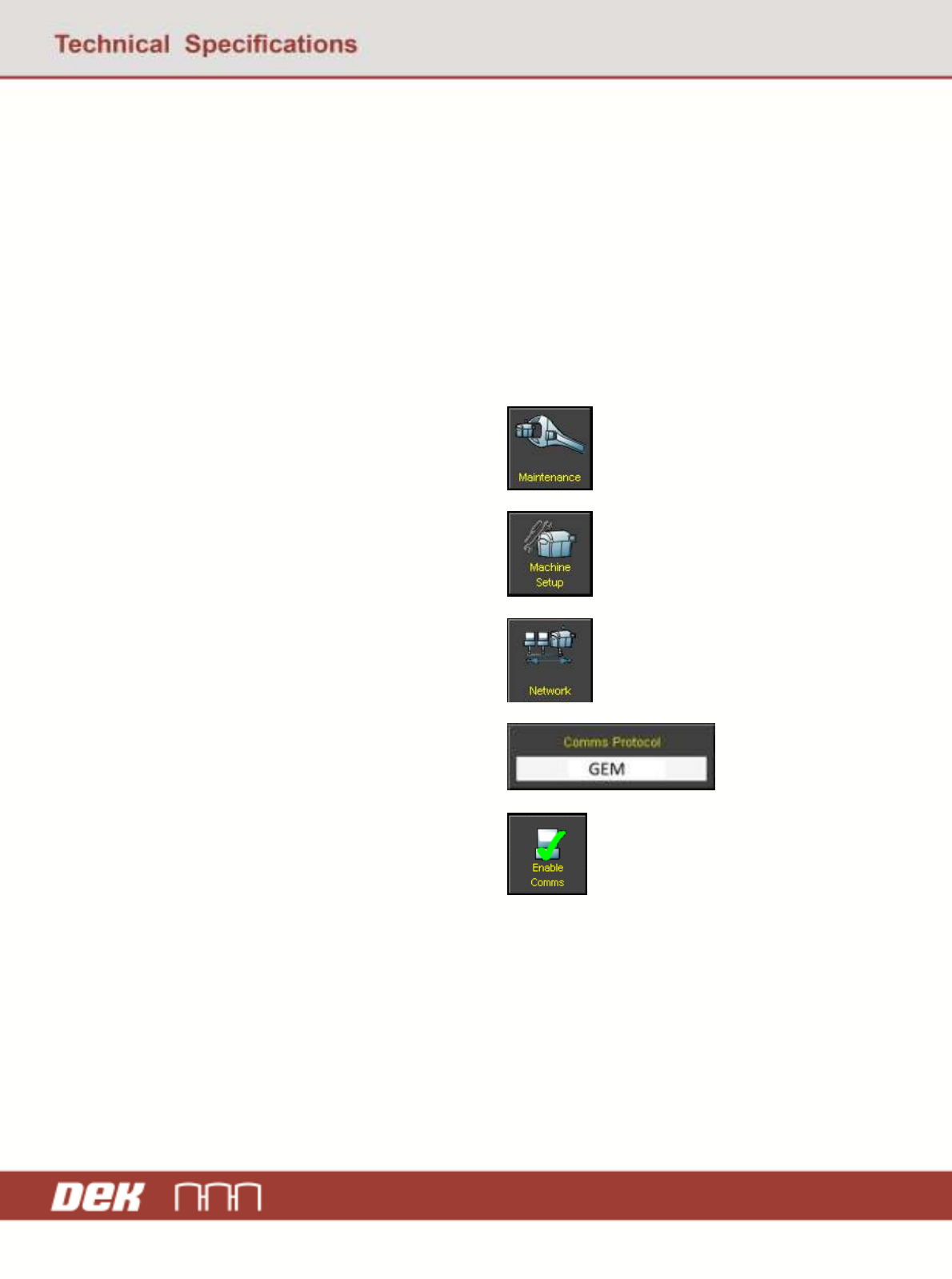

Instinctiv User Interface
From the Ready page:
1. Select Maintenance
2. Select Machine Setup
3. Select Network
4. Change the Comms Protocol to GEM
5. Select Enable Comms
