MODEL TIM-5100 0008-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE BB-2 1 1 6 41 1 141 4107 W ASHER V 5X10X1 4 F W 5 1 1 7 41 1 141 6705 W ASHER SPR 5 4 S W5 1 1 8 630 000 7749 BOL T ,HEX-SCT 4 M5X10 121 41 1 141 …
MODEL TIM-5100
0008-001
本体電装部 MACHINE ELECTRICAL SECTION

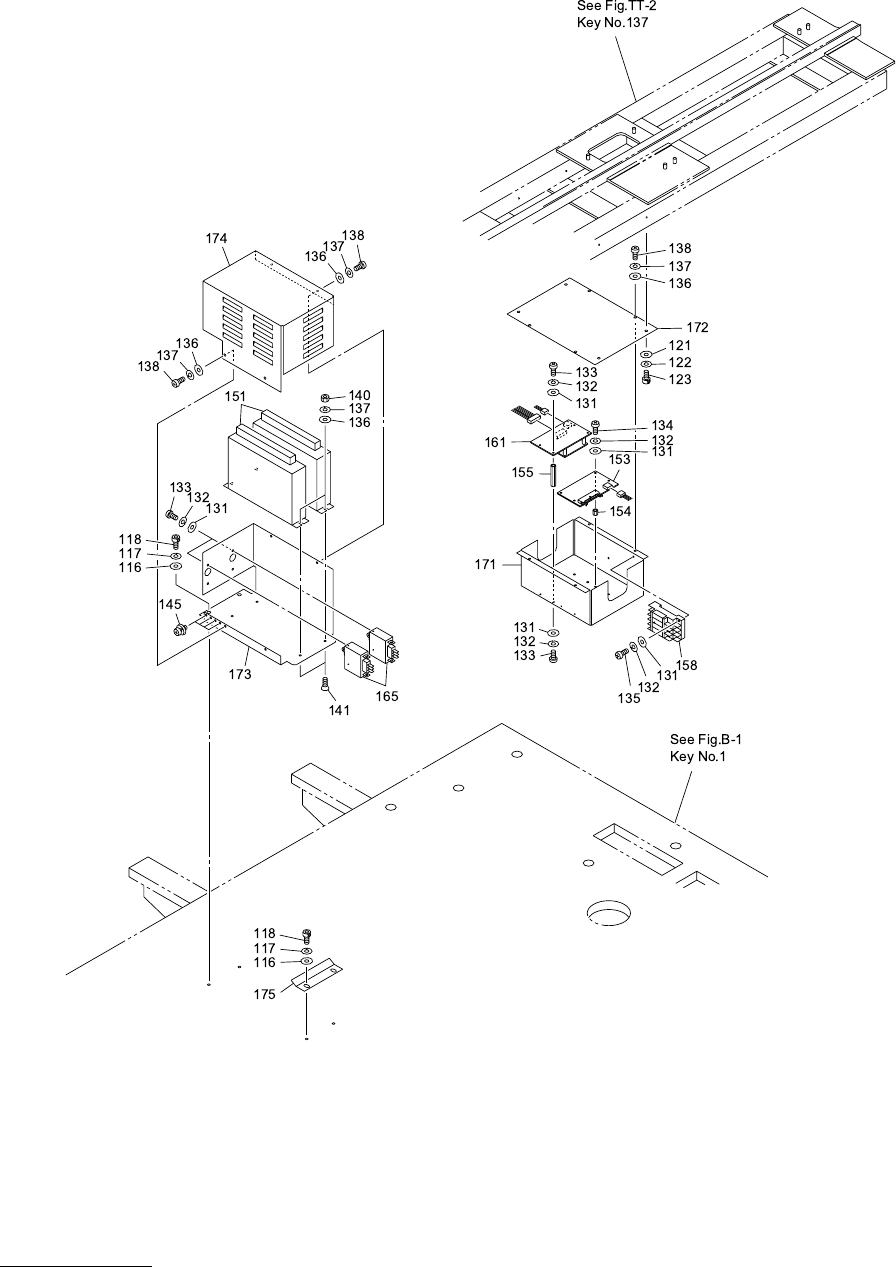

Fig. BB-2
トラバースＳＤＳ，ＰＭＤ
Traverse SDS, PMD
MODEL TIM-5100
0008-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
BB-2
116 411 141 4107 WASHER V 5X10X1 4 FW5
117 411 141 6705 WASHER SPR 5 4 SW5
118 630 000 7749 BOLT,HEX-SCT 4 M5X10
121 411 141 4008 WASHER V 4X9X0.8 4 FW4
122 411 141 2905 WASHER SPR 4 4 SW4
123 630 000 7619 BOLT,HEX-SCT 4 M4X8
131 411 119 1909 WASHER V 3X7X0.5 18 FW3 F
132 411 086 4408 WASHER SPR 3 18 SW3 F
133 411 041 8908 SCR PAN 3X6 12 M3X6 PAN
134 411 040 7803 SCR PAN 3X12 4 M3X12 PAN
135 411 042 0703 SCR PAN 3X8 2 M3X8 PAN
136 411 119 2104 WASHER V 4X9X0.8 12 FW4 F
137 411 008 1706 WASHER SPR 4 12 SW4 F
138 411 043 5004 SCR PAN 4X8 8 M4X8 PAN
140 411 054 8506 NUT HEX 4 4 M4 F
141 411 035 2707 SCR FLT 4X8 4 M4X8 FLT
145 411 114 7807 SCR PAN+SW+W 4X10 4
151 630 059 3853 UNIT,DRIVER 2 741TT-11D-051
153 630 074 5122 P.C.B,MOUNT(SDS-DIN) 1 741TT-11U-053
154 630 006 0218 ACCESSORY,P.C.B 4 741TT-11D-054
155 630 069 1078 ACCESSORY,P.C.B 4 741TT-11D-055
158 630 061 0987 RELAY 1 741TT-11D-058
161 630 071 2551 UNIT,I/O 1 741TT-11D-151
165 630 043 0530 CIRCUIT PROTECTOR 2 741TT-11D-155
171 630 084 7574 BOX 1 741TT-11V-071
172 630 084 2197 PLATE 1 741TT-11B-140
173 630 084 7581 BRACKET 1 741TT-11V-073
174 630 084 7598 COVER 1 741TT-11V-074
175 630 084 7604 PLATE 1 741TT-11V-075
MODEL TIM-5100
0008-001
本体電装部 MACHINE ELECTRICAL SECTION

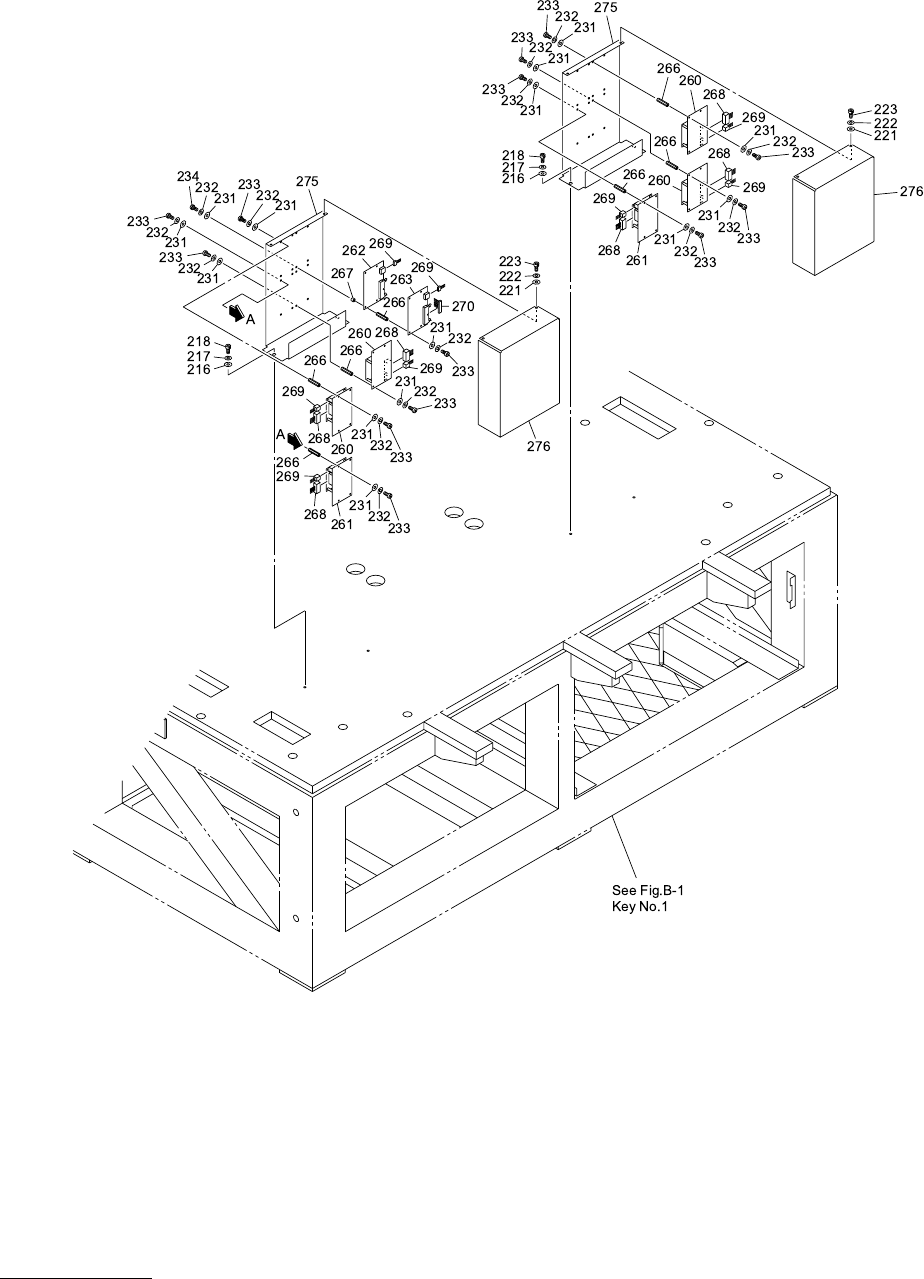

Fig. BB-3 フレーム中段 ＳＤＳ Frame Middle SDS
