MODEL TIM-5100 0008-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE TT-1 2 630 071 8997 SUPPORT 2 741TT-1 1B-002 3 630 071 9000 SUPPORT 1 741TT-1 1B-003 4 630 071 8980 PLA T E 1 741TT-1 1B-004 56 41 1 141 4503 WASH…
MODEL TIM-5100
0008-001
トラバ－ス部 TRAVERSE SECTION

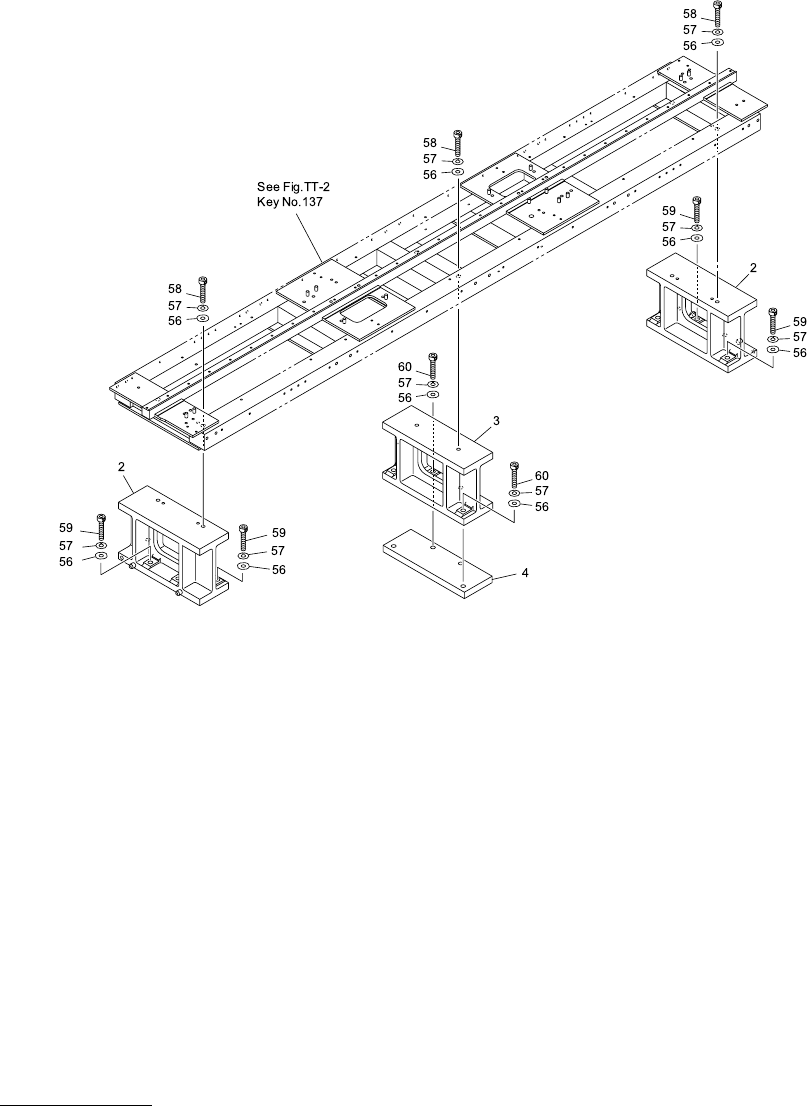

Fig. TT-1 トラバ－ス取付ブロック Traverse Mounting Block
MODEL TIM-5100
0008-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
TT-1
2 630 071 8997 SUPPORT 2 741TT-11B-002
3 630 071 9000 SUPPORT 1 741TT-11B-003
4 630 071 8980 PLATE 1 741TT-11B-004
56 411 141 4503 WASHER V 8X17X1.6 18 FW8
57 411 141 3100 WASHER SPR 8 18 SW8
58 630 000 8012 BOLT,HEX-SCT 6 M8X20
59 630 000 8036 BOLT,HEX-SCT 8 M8X30
60 630 000 8067 BOLT,HEX-SCT 4 M8X45
MODEL TIM-5100
0008-001
トラバ－ス部 TRAVERSE SECTION

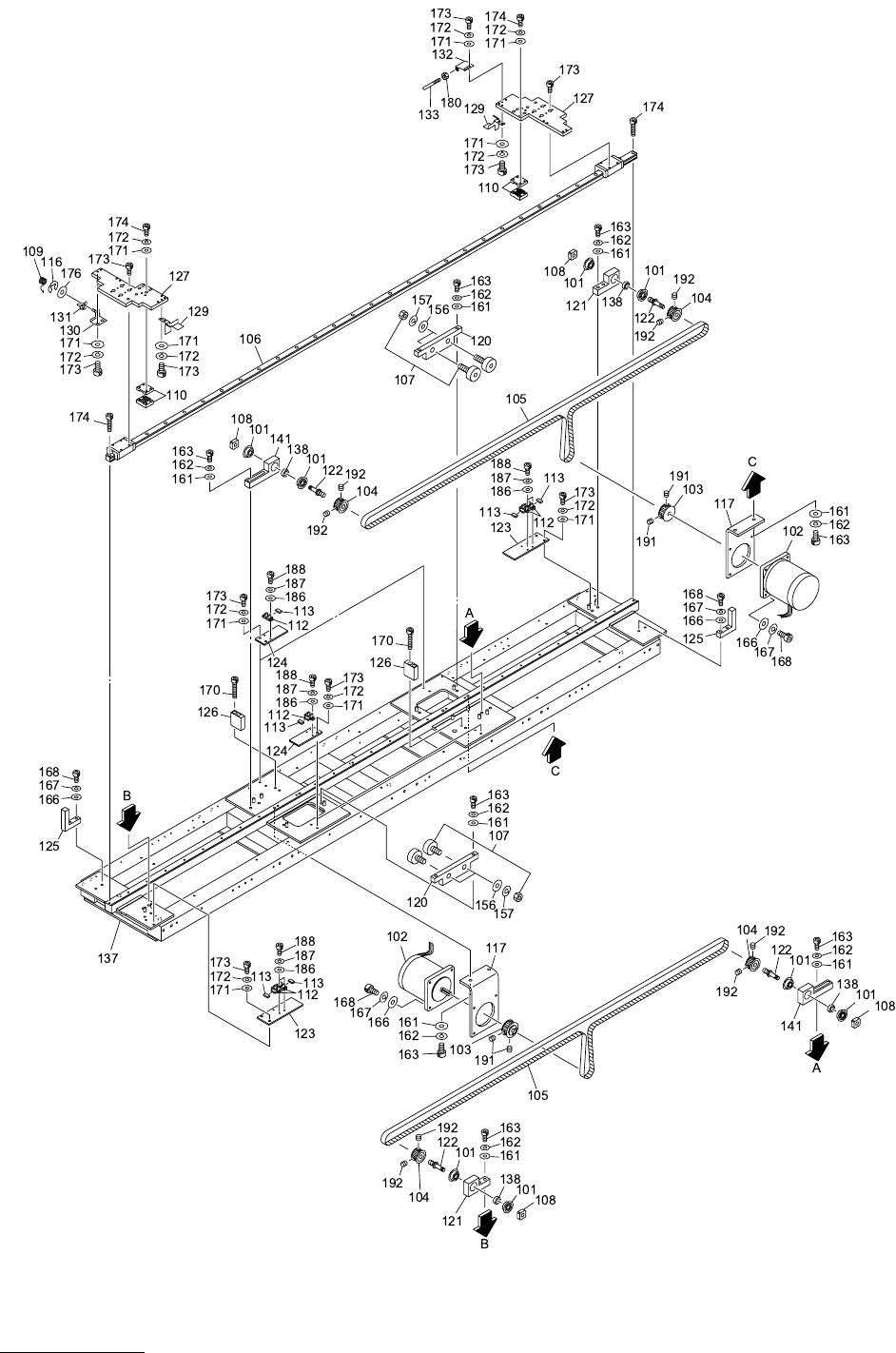

Fig. TT-2 テ－ブル駆動部 Table Driving Section
