MODEL TIM-5100 0008-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE B-2 101 630 070 2194 AIR LINE EQPT 1 741B--1 1H-101 102 630 071 1660 AIR LINE EQPT 1 741B--1 1H-102 103 630 062 4847 PIPE FITTINGS 3 741B--1 1H-10…
MODEL TIM-5100
0008-001
ベースフレーム部 BASE FRAME SECTION

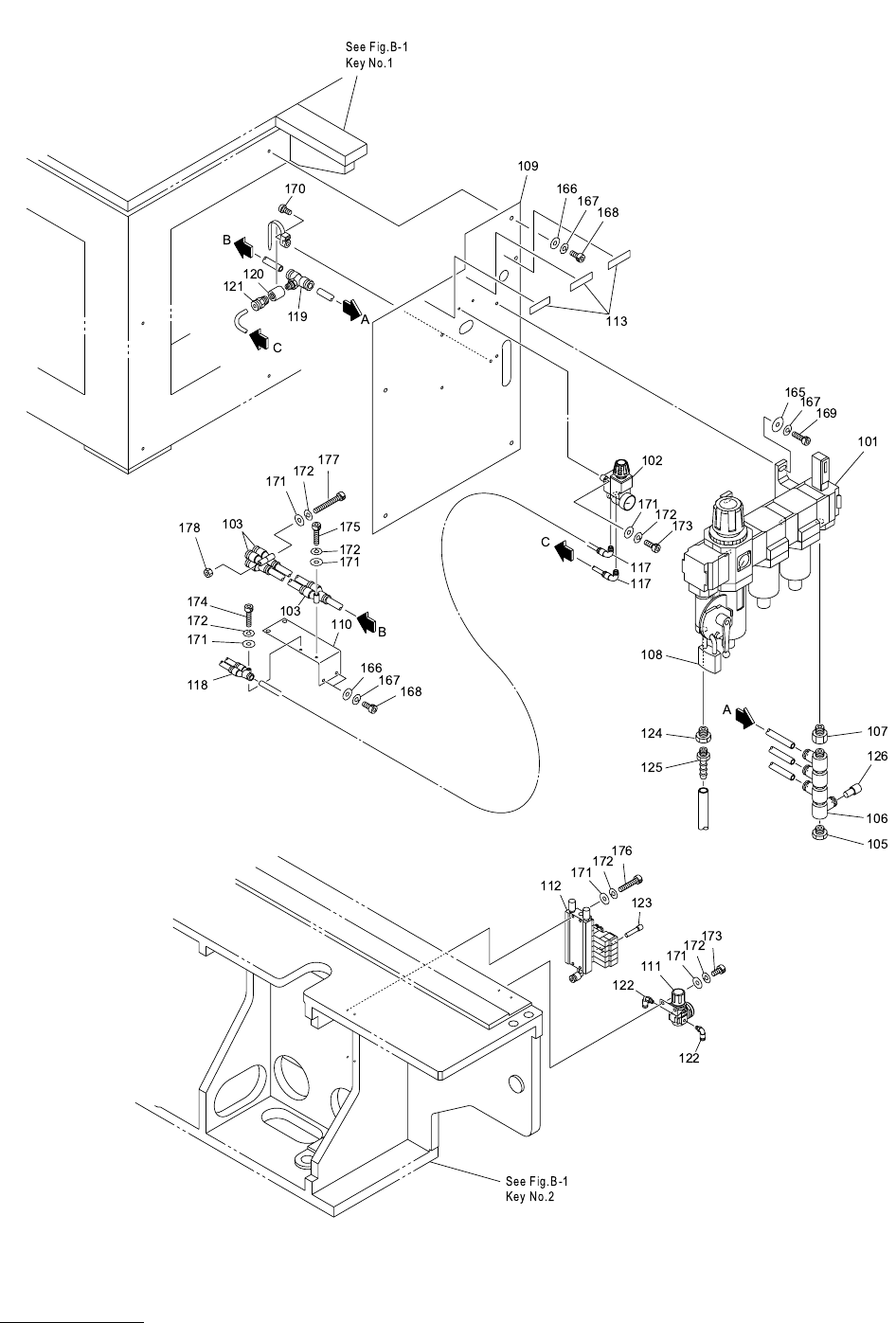

Fig. B-2 エア源 Air Source
MODEL TIM-5100
0008-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
B-2
101 630 070 2194 AIR LINE EQPT 1 741B--11H-101
102 630 071 1660 AIR LINE EQPT 1 741B--11H-102
103 630 062 4847 PIPE FITTINGS 3 741B--11H-103
105 630 003 8248 PIPE FITTINGS 1 741B--11H-105
106 630 003 8224 PIPE FITTINGS 4 741B--11H-106
107 630 003 8231 PIPE FITTINGS 1 741B--11H-107
108 630 053 4917 MECH PARTS 1 741B--11H-108
109 630 074 8376 BRACKET 1 741B--11B-009
110 630 074 8536 BRACKET 1 741B--11B-110
111 630 072 1546 AIR LINE EQPT 1 741B--11H-111
112 630 071 3718 VALVE 1 741B--11H-112
113 630 084 9554 NAME PLATE,PARTS 1 741B--11H-113
117 630 003 7302 PIPE FITTINGS 2
118 630 003 7708 PIPE FITTINGS 1
119 630 003 7579 PIPE FITTINGS 1
120 630 003 7937 PIPE FITTINGS 1
121 630 003 7036 PIPE FITTINGS 1
122 630 003 7265 PIPE FITTINGS 2
123 630 003 7791 PIPE FITTINGS 1
124 630 003 8033 PIPE FITTINGS 1
125 630 008 0285 PIPE FITTINGS 1
126 630 003 7814 PIPE FITTINGS 1
165 630 001 0220 WASHER 4 BW5
166 411 141 4107 WASHER V 5X10X1 6 FW5
167 411 141 6705 WASHER SPR 5 10 SW5
168 630 000 7749 BOLT,HEX-SCT 6 M5X10
169 630 000 7770 BOLT,HEX-SCT 4 M5X20
170 630 000 7725 BOLT,HEX-SCT 1 M5X6
171 411 141 4008 WASHER V 4X9X0.8 11 FW4
172 411 141 2905 WASHER SPR 4 11 SW4
173 630 000 7657 BOLT,HEX-SCT 4 M4X16
174 630 000 7664 BOLT,HEX-SCT 1 M4X20
175 630 000 7671 BOLT,HEX-SCT 1 M4X25
176 630 000 7688 BOLT,HEX-SCT 4 M4X30
177 630 000 7718 BOLT,HEX-SCT 1 M4X45
178 411 141 0307 NUT HEX 4 1 M4
MODEL TIM-5100
0008-001
ベースフレーム部 BASE FRAME SECTION

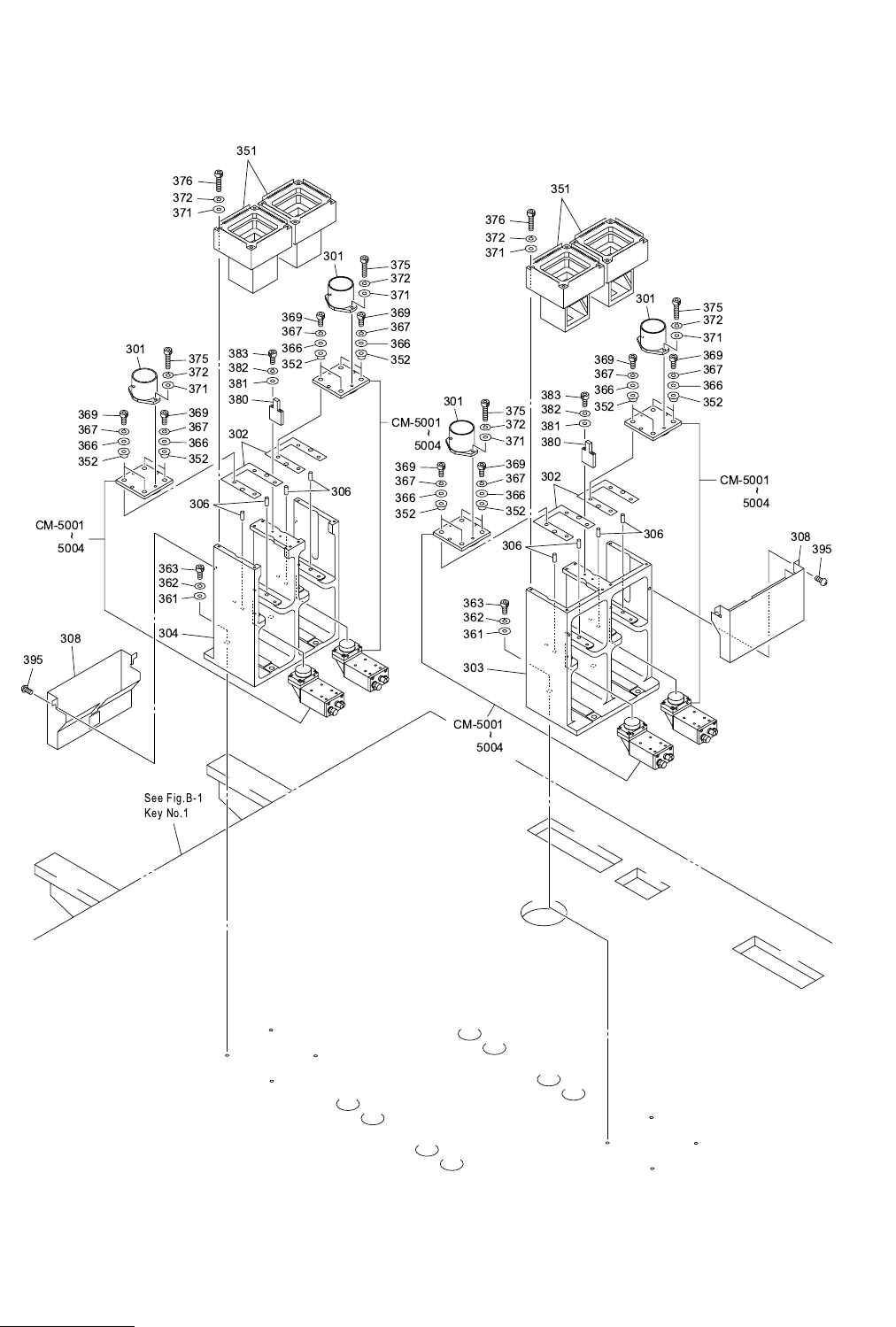

Fig. B-4 部品認識カメラ Component Recognition Camera
