MODEL TIM-5100
0008-001
本体電装部 MACHINE ELECTRICAL SECTION

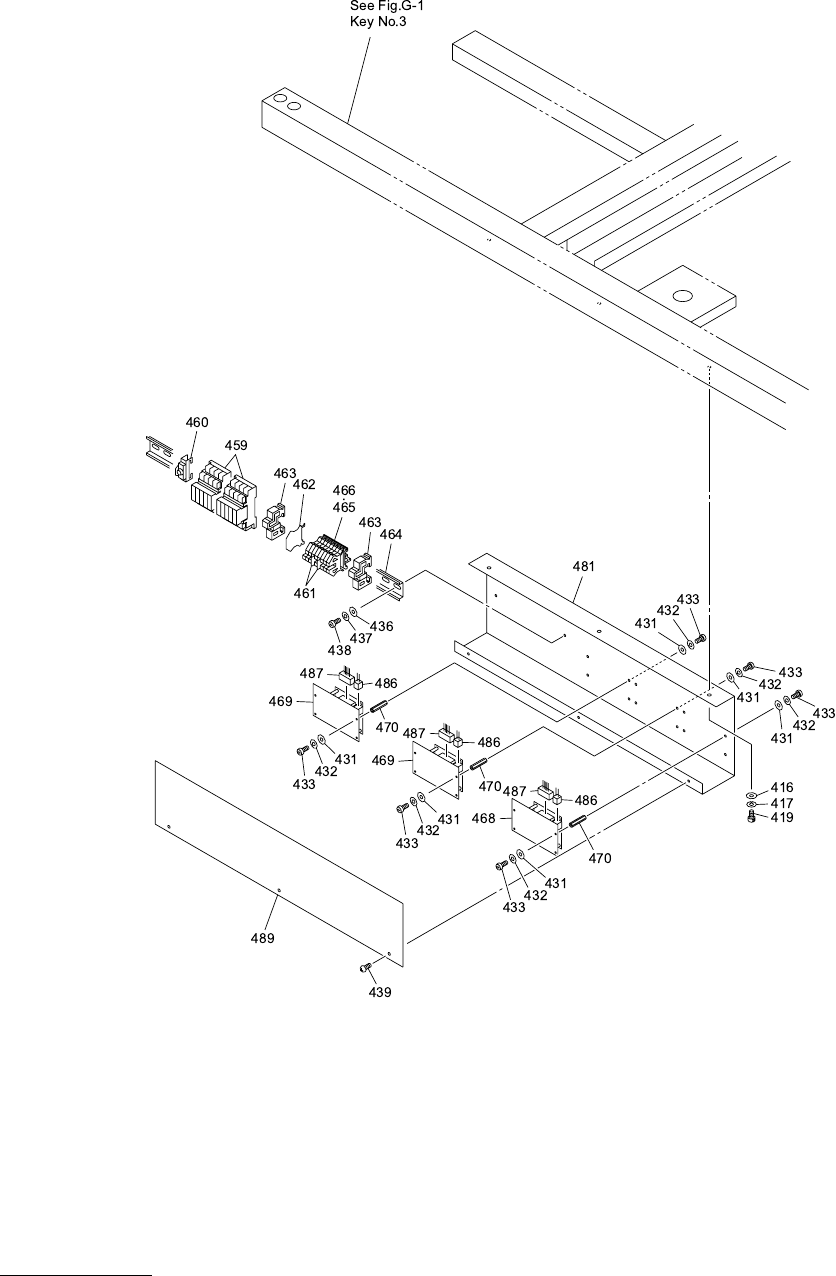

Fig. BB-5 操作パネルＡ ＳＤＳ Operation Panel A SDS
MODEL TIM-5100
0008-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
BB-5
416 411 141 4107 WASHER V 5X10X1 3 FW5
417 411 141 6705 WASHER SPR 5 3 SW5
419 630 000 7749 BOLT,HEX-SCT 3 M5X10
431 411 119 1909 WASHER V 3X7X0.5 24 FW3 F
432 411 086 4408 WASHER SPR 3 24 SW3 F
433 411 041 8908 SCR PAN 3X6 24 M3X6 PAN
436 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
437 411 008 1706 WASHER SPR 4 2 SW4 F
438 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
439 411 051 1708 SCR TRS 4X6 3 M4X6 TRS
459 630 070 3016 RELAY 2 741BB-11D-459
460 630 000 1051 BRACKET,WIRING 1 741BB-11D-965
461 630 083 5564 ACCESSORY,WIRING 2 741BB-11D-254
462 630 083 5502 ACCESSORY,WIRING 1 741BB-11D-255
463 630 049 3672 BRACKET,WIRING 2 741BB-11D-256
464 630 094 4396 RAIL,WIRING 1
465 630 083 5458 TERMINAL 8 741BB-11D-755
468 630 071 2551 UNIT,I/O 1 741BB-11D-860
469 630 071 2568 UNIT,I/O 2 741BB-11D-861
470 630 069 1078 ACCESSORY,P.C.B 12 741BB-11D-866
481 630 084 3057 BRACKET 1 741BB-11V-076
486 630 070 2965 CONNECTOR 3 741BB-11D-652
487 630 070 2972 CONNECTOR 3 741BB-11D-868
489 630 084 6492 COVER 1 741BB-11V-079
MODEL TIM-5100
0008-001
本体電装部 MACHINE ELECTRICAL SECTION
Fig. BB-6 操作パネルＢ ＳＤＳ Operation Panel B SDS
