P-0213-001.pdf - 第166页
MODEL TIM-5100 0008-001 電源部 POWER SUPPLY SECTION Fig. BF-2 電源２（１） Power Supply 2 (1)
MODEL TIM-5100
0008-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
BF-1
16 411 141 4107 WASHER V 5X10X1 16 FW5
17 411 141 6705 WASHER SPR 5 16 SW5
18 630 000 7756 BOLT,HEX-SCT 8 M5X12
19 630 000 7732 BOLT,HEX-SCT 8 M5X8
21 411 119 2104 WASHER V 4X9X0.8 11 FW4 F
22 411 008 1706 WASHER SPR 4 11 SW4 F
23 411 042 3001 SCR PAN 4X10 9 M4X10 PAN
24 411 043 5004 SCR PAN 4X8 5 M4X8 PAN
25 411 042 3001 SCR PAN 4X10 2 M4X10 PAN
28 411 113 2803 SCR PAN 5X8 1 M5X8 PAN
31 411 113 9109 SCR TRS 5X10 1 M5X10 TRS
36 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
37 411 141 3001 WASHER SPR 6 2 SW6
38 630 000 7879 BOLT,HEX-SCT 2 M6X12
51 630 083 5427 BREAKER 1 741BF-11D-051
52 630 083 5434 COVER 1 741BF-11D-052
53 630 083 5441 HANDLE 1 741BF-11D-053
54 630 083 5359 CIRCUIT PROTECTOR 1 741BF-11D-054
55 408 031 0004 VARISTOR R.A.V-781BXZ-4 1 741BF-11D-055
56 630 081 2978 FILTER,NOISE 1 741BF-11D-056
58 630 083 1467 FILTER,NOISE 1 741BF-11D-058
60 630 057 7723 TERMINAL 1 741BF-11D-060
61 630 063 4457 RELAY 3 741BF-11D-151
62 630 045 4260 SOCKET 3 741BF-11D-152
63 630 000 1037 BRACKET,WIRING 3 741BF-11D-153
64 630 083 5496 FUSE HOLDER 3 741BF-11D-154
65 423 025 2000 FUSE 250V 0.4A 3 741BF-11D-155
66 630 091 2081 RAIL,WIRING 2
67 630 067 3562 PILOT LAMP 1 741BF-11D-157
68 630 049 3672 BRACKET,WIRING 2 741BF-11D-158
70 630 000 1051 BRACKET,WIRING 4 741BF-11D-253
71 630 085 4114 BOX 1 741BF-11V-071
72 630 084 5815 PANEL 1 741BF-11V-072
73 630 084 5822 COVER 1 741BF-11V-073
74 630 094 4389 RAIL,WIRING 1
75 630 071 3343 COVER 5 741BF-11D-255
76 630 071 3350 COVER 1 741BF-11D-256
93 630 076 8336 NAME PLATE,PARTS 1 741BF-11D-254
94 630 061 9737 MECH PARTS 1 741S--11D-153
MODEL TIM-5100
0008-001
電源部 POWER SUPPLY SECTION

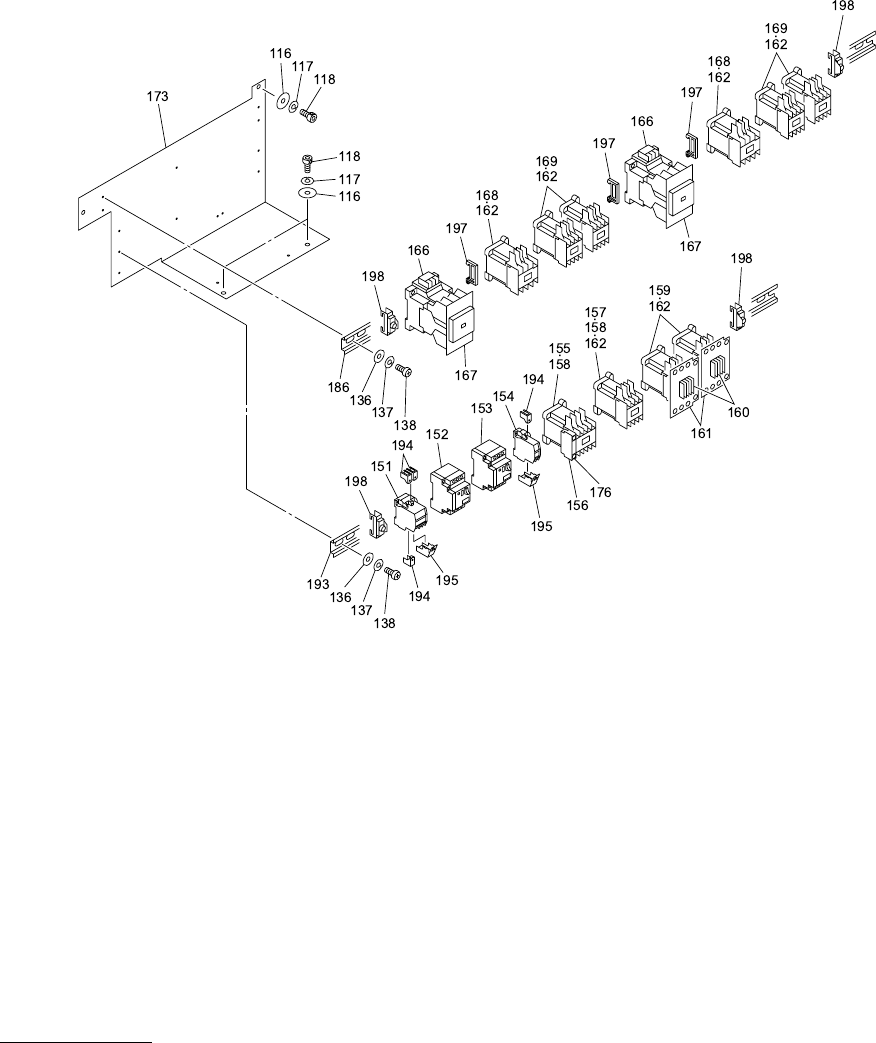

Fig. BF-2 電源２（１） Power Supply 2 (1)
MODEL TIM-5100
0008-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
BF-2
116 630 001 0220 WASHER 3 BW5
117 411 141 6705 WASHER SPR 5 3 SW5
118 630 000 7749 BOLT,HEX-SCT 3 M5X10
136 411 119 2104 WASHER V 4X9X0.8 6 FW4 F
137 411 008 1706 WASHER SPR 4 6 SW4 F
138 411 043 5004 SCR PAN 4X8 6 M4X8 PAN
151 630 083 5373 CIRCUIT PROTECTOR 1 741BG-11D-051
152 630 083 5403 CIRCUIT PROTECTOR 1 741BG-11D-052
153 630 083 5380 CIRCUIT PROTECTOR 1 741BG-11D-053
154 630 085 2233 CIRCUIT PROTECTOR 1 741BG-11D-054
155 630 053 8601 EM-CONTACTOR 1 741BG-11D-055
156 630 057 2568 EM-CONTACTOR 1 741BG-11D-056
157 630 053 8618 EM-CONTACTOR 1 741BG-11D-057
158 407 140 4804 VARISTOR TNR15G470K 2 741BG-11D-058
159 630 072 4424 EM-CONTACTOR 2 741BG-11D-059
160 630 049 2187 EM-CONTACTOR 2 741BG-11D-060
161 630 049 2163 COVER 2 741BG-11D-151
162 630 000 1853 COMP,CR 13 741BG-11D-062
166 630 053 8595 EM-CONTACTOR 2 641BG-11D-760
167 630 049 2132 COVER 2 641BG-11D-761
168 630 067 0639 EM-CONTACTOR 2 741BG-11D-762
169 630 053 8588 EM-CONTACTOR 4 741BG-11D-763
173 630 084 3316 PANEL 1 741BG-11V-076
176 630 069 9579 COVER 1 741BG-11D-451
186 630 089 6565 RAIL,WIRING 1
193 630 089 6756 RAIL,WIRING 1
194 630 071 3343 COVER 4 741BG-11D-554
195 630 071 3350 COVER 2 741BG-11D-555
197 630 000 1273 ACCESSORY,WIRING 3 741BG-11D-754
198 630 000 1051 BRACKET,WIRING 4 741BG-11D-755
