MODEL TIM-5100 0008-001 コンベアボックス部 CONVEYOR BOX SECTION Fig. BK-1 コンベア１ ボックス Conveyor 1 Box
MODEL TIM-5100
0008-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
BF-7
616 411 141 4107 WASHER V 5X10X1 4 FW5
617 411 141 6705 WASHER SPR 5 4 SW5
619 630 000 7749 BOLT,HEX-SCT 4 M5X10
621 411 141 4008 WASHER V 4X9X0.8 4 FW4
622 411 141 2905 WASHER SPR 4 4 SW4
623 630 000 7633 BOLT,HEX-SCT 4 M4X12
631 411 119 1909 WASHER V 3X7X0.5 4 FW3 F
632 411 086 4408 WASHER SPR 3 4 SW3 F
635 411 113 0502 SCR PAN 3X14 4 M3X14 PAN
636 411 119 2104 WASHER V 4X9X0.8 8 FW4 F
637 411 008 1706 WASHER SPR 4 8 SW4 F
638 411 043 5004 SCR PAN 4X8 14 M4X8 PAN
654 630 071 3237 WIRE PARTS 1 741BJ-11D-054
660 630 000 1051 BRACKET,WIRING 4 741BJ-11D-360
661 630 094 4402 RAIL,WIRING 2
665 630 071 2537 UNIT,I/O 1 741BJ-11D-155
666 630 071 2544 UNIT,I/O 1 741BJ-11D-156
667 630 006 0225 ACCESSORY,P.C.B 8 741BJ-11D-157
681 630 085 8365 BOX 1 741BJ-11V-071
682 630 084 5693 PANEL 1 741BJ-11V-072
685 630 085 1779 BRACKET 1 741BJ-11V-075
686 630 045 4260 SOCKET 4 741BJ-11D-356
687 630 000 1020 BRACKET,WIRING 2 741BJ-11D-357
688 630 063 5782 TIMER 2 741BJ-11D-358
689 630 049 2125 RELAY 2 741BJ-11D-355
690 630 000 1037 BRACKET,WIRING 2 741BJ-11D-485
691 630 083 5403 CIRCUIT PROTECTOR 2 741BJ-11D-460
692 630 081 6396 EM-CONTACTOR 2 741BJ-11D-354
693 630 081 5887 UNIT,DRIVER 2 741BJ-11D-461
694 630 081 5931 UNIT,I/O 2 741BJ-11D-353
695 630 081 5894 CONNECTOR 2 741BJ-11D-352
696 630 081 5870 CORD 2 741BJ-11D-351
MODEL TIM-5100
0008-001
コンベアボックス部 CONVEYOR BOX SECTION

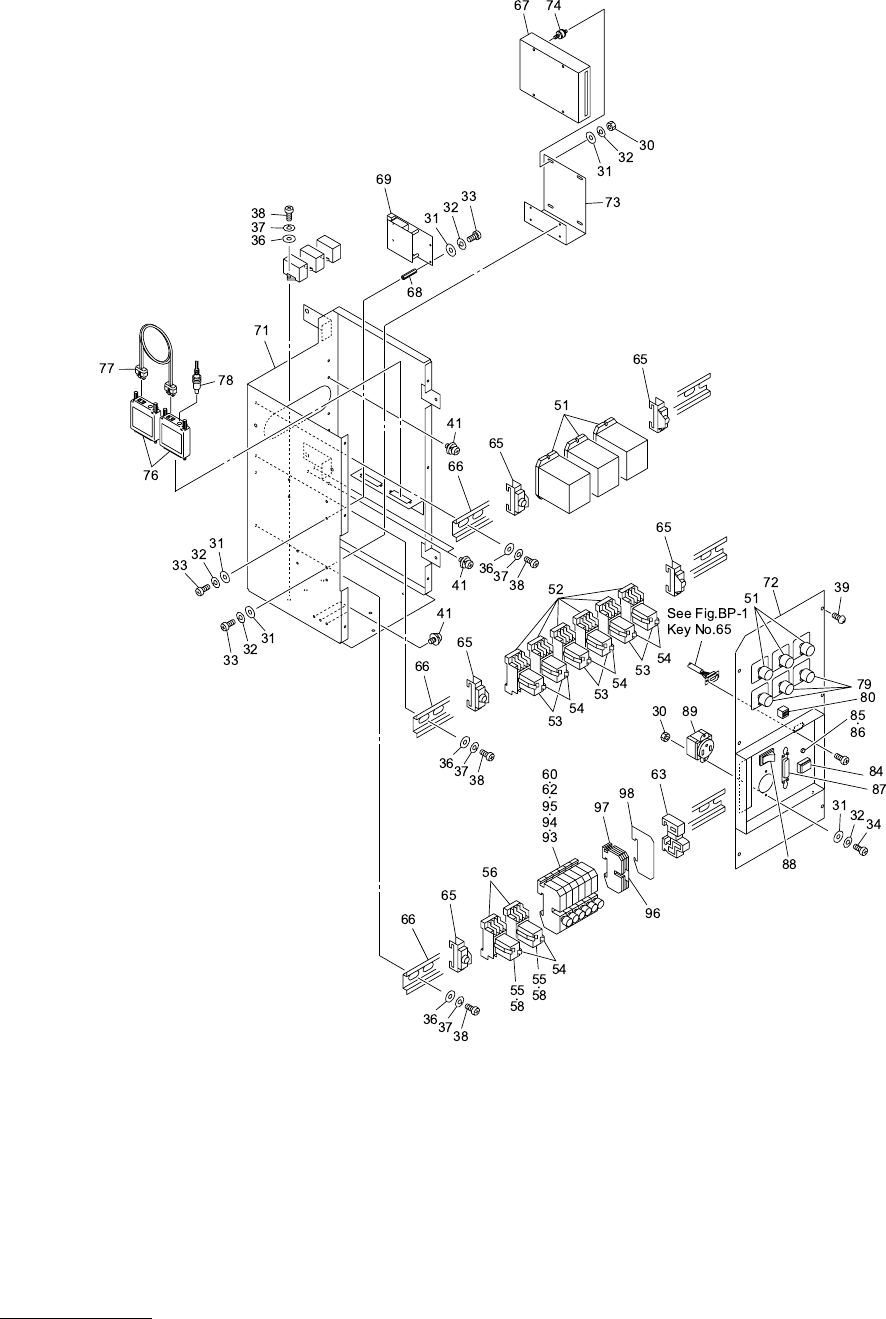

Fig. BK-1 コンベア１ ボックス Conveyor 1 Box
MODEL TIM-5100
0008-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
BK-1
30 411 054 6809 NUT HEX 3 6 M3 F
31 411 119 1909 WASHER V 3X7X0.5 18 FW3 F
32 411 086 4408 WASHER SPR 3 18 SW3 F
33 411 041 8908 SCR PAN 3X6 12 M3X6 PAN
34 411 042 0703 SCR PAN 3X8 2 M3X8 PAN
36 411 119 2104 WASHER V 4X9X0.8 9 FW4 F
37 411 008 1706 WASHER SPR 4 9 SW4 F
38 411 043 5004 SCR PAN 4X8 15 M4X8 PAN
39 411 051 1708 SCR TRS 4X6 6 M4X6 TRS
51 630 083 5946 UNIT,DRIVER 3 741BK-11D-051
52 630 045 4260 SOCKET 6 741BK-11D-456
53 630 049 2125 RELAY 6 741BK-11D-455
54 630 000 1020 BRACKET,WIRING 8 741BK-11D-054
55 630 007 3584 RELAY 2 741BK-11D-055
56 630 049 2071 SOCKET 2 741BK-11D-056
58 630 000 1853 COMP,CR 2 741BK-11D-058
60 630 083 5496 FUSE HOLDER 6 741BK-11D-060
62 423 022 8302 FUSE 250V 5A 3 741BK-11D-152
63 630 049 3672 BRACKET,WIRING 1 741BK-11D-251
65 630 000 1051 BRACKET,WIRING 5 741BK-11D-460
66 630 089 6503 RAIL,WIRING 3
67 630 057 0694 UNIT,I/O 1 741BK-11D-257
68 630 069 1078 ACCESSORY,P.C.B 4 741BK-11D-452
69 630 071 2568 UNIT,I/O 1 741BK-11D-359
71 630 085 0512 BOX 1 741BK-11V-071
72 630 084 8106 PANEL 1 741BK-11V-072
73 630 084 5679 BRACKET 1 741BK-11V-073
74 630 036 4736 MECH PARTS 4 741BK-11V-074
76 630 066 8513 CONNECTOR 1 741BK-11D-260
77 630 056 9537 CORD 1 741BK-11D-351
78 630 057 3954 CORD 1 741BK-11D-352
79 630 083 5335 RESISTOR,R-VARIABLE 3 741BK-11D-159
80 630 083 5342 CASE,CONN 1 741BK-11D-160
84 630 000 2744 SWITCH,BUTTON 1 741BK-11D-259
85 407 035 4704 LED SLP-721F 1 741BK-11D-353
86 401 008 1707 CARBON 1.8K JB 1/2W 1 741BK-11D-354
87 630 072 0204 CORD 1 741BK-11D-951
88 630 076 0644 SWITCH,SEESAW 1 741BK-11D-358
89 630 000 4243 SOCKET 1 741VC-11D-051
93 423 025 2109 FUSE 250V 6.3A 1 741BK-11D-153
94 423 022 8005 FUSE 250V 1A 1 741BK-11D-154
95 423 022 8104 FUSE 250V 2A 1 741BK-11D-155
96 630 058 8415 ACCESSORY,WIRING 1 741BK-11D-262
97 630 083 5472 TERMINAL 4 741BK-11D-263
98 630 083 5519 ACCESSORY,WIRING 1 741BK-11D-264
