MODEL TIM-5100 0008-001 コンベアボックス部 CONVEYOR BOX SECTION Fig. BK-2 コンベア２ ボックス Conveyor 2 Box
MODEL TIM-5100
0008-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
BK-1
30 411 054 6809 NUT HEX 3 6 M3 F
31 411 119 1909 WASHER V 3X7X0.5 18 FW3 F
32 411 086 4408 WASHER SPR 3 18 SW3 F
33 411 041 8908 SCR PAN 3X6 12 M3X6 PAN
34 411 042 0703 SCR PAN 3X8 2 M3X8 PAN
36 411 119 2104 WASHER V 4X9X0.8 9 FW4 F
37 411 008 1706 WASHER SPR 4 9 SW4 F
38 411 043 5004 SCR PAN 4X8 15 M4X8 PAN
39 411 051 1708 SCR TRS 4X6 6 M4X6 TRS
51 630 083 5946 UNIT,DRIVER 3 741BK-11D-051
52 630 045 4260 SOCKET 6 741BK-11D-456
53 630 049 2125 RELAY 6 741BK-11D-455
54 630 000 1020 BRACKET,WIRING 8 741BK-11D-054
55 630 007 3584 RELAY 2 741BK-11D-055
56 630 049 2071 SOCKET 2 741BK-11D-056
58 630 000 1853 COMP,CR 2 741BK-11D-058
60 630 083 5496 FUSE HOLDER 6 741BK-11D-060
62 423 022 8302 FUSE 250V 5A 3 741BK-11D-152
63 630 049 3672 BRACKET,WIRING 1 741BK-11D-251
65 630 000 1051 BRACKET,WIRING 5 741BK-11D-460
66 630 089 6503 RAIL,WIRING 3
67 630 057 0694 UNIT,I/O 1 741BK-11D-257
68 630 069 1078 ACCESSORY,P.C.B 4 741BK-11D-452
69 630 071 2568 UNIT,I/O 1 741BK-11D-359
71 630 085 0512 BOX 1 741BK-11V-071
72 630 084 8106 PANEL 1 741BK-11V-072
73 630 084 5679 BRACKET 1 741BK-11V-073
74 630 036 4736 MECH PARTS 4 741BK-11V-074
76 630 066 8513 CONNECTOR 1 741BK-11D-260
77 630 056 9537 CORD 1 741BK-11D-351
78 630 057 3954 CORD 1 741BK-11D-352
79 630 083 5335 RESISTOR,R-VARIABLE 3 741BK-11D-159
80 630 083 5342 CASE,CONN 1 741BK-11D-160
84 630 000 2744 SWITCH,BUTTON 1 741BK-11D-259
85 407 035 4704 LED SLP-721F 1 741BK-11D-353
86 401 008 1707 CARBON 1.8K JB 1/2W 1 741BK-11D-354
87 630 072 0204 CORD 1 741BK-11D-951
88 630 076 0644 SWITCH,SEESAW 1 741BK-11D-358
89 630 000 4243 SOCKET 1 741VC-11D-051
93 423 025 2109 FUSE 250V 6.3A 1 741BK-11D-153
94 423 022 8005 FUSE 250V 1A 1 741BK-11D-154
95 423 022 8104 FUSE 250V 2A 1 741BK-11D-155
96 630 058 8415 ACCESSORY,WIRING 1 741BK-11D-262
97 630 083 5472 TERMINAL 4 741BK-11D-263
98 630 083 5519 ACCESSORY,WIRING 1 741BK-11D-264
MODEL TIM-5100
0008-001

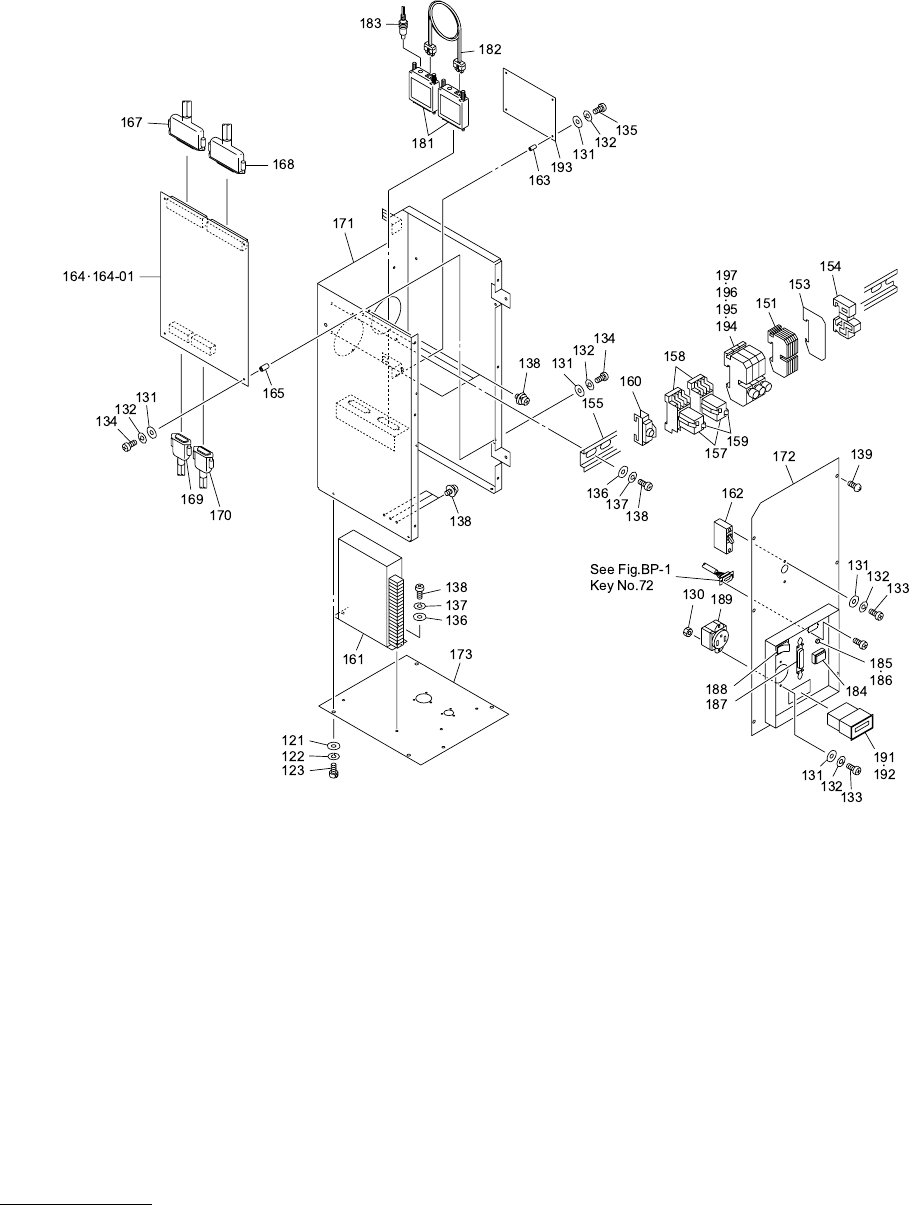

コンベアボックス部 CONVEYOR BOX SECTION
Fig. BK-2 コンベア２ ボックス Conveyor 2 Box
MODEL TIM-5100
0008-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
BK-2
121 411 141 4008 WASHER V 4X9X0.8 4 FW4
122 411 141 2905 WASHER SPR 4 4 SW4
123 630 000 7619 BOLT,HEX-SCT 4 M4X8
130 411 054 6809 NUT HEX 3 2 M3 F
131 411 119 1909 WASHER V 3X7X0.5 16 FW3 F
132 411 086 4408 WASHER SPR 3 16 SW3 F
133 411 041 8908 SCR PAN 3X6 2 M3X6 PAN
134 411 042 0703 SCR PAN 3X8 10 M3X8 PAN
135 411 162 1604 SCR PAN 3X20 4 M3X20 PAN
136 411 119 2104 WASHER V 4X9X0.8 4 FW4 F
137 411 008 1706 WASHER SPR 4 4 SW4 F
138 411 043 5004 SCR PAN 4X8 10 M4X8 PAN
139 411 051 1708 SCR TRS 4X6 6 M4X6 TRS
151 630 083 5472 TERMINAL 6 741BL-11D-065
153 630 083 5519 ACCESSORY,WIRING 1 741BL-11D-066
154 630 049 3672 BRACKET,WIRING 1 741BL-11D-054
155 630 060 2449 RAIL,WIRING 1 741BL-11D-055
157 630 000 3529 RELAY 2 741BL-11D-157
158 630 045 4260 SOCKET 2 741BL-11D-158
159 630 000 1020 BRACKET,WIRING 2 741BL-11D-159
160 630 000 1051 BRACKET,WIRING 1 741BL-11D-257
161 630 057 8997 UNIT,DRIVER 1 741BL-11D-061
162 630 043 0530 CIRCUIT PROTECTOR 1 741BL-11D-062
163 630 058 0181 ACCESSORY,P.C.B 2 741BL-11D-253
164 630 069 2396 P.C.B,MOUNT(RECOG LED) 1 741BL-11U-362
164 -01 423 022 8500 FUSE 250V 10A 1
165 630 085 8587 ACCESSORY,P.C.B 4 741BL-11D-353
167 630 072 0785 CORD 1 741BP-11D-267
168 630 072 0792 CORD 1 741BP-11D-268
169 630 072 0648 CORD 1 741BP-11D-254
170 630 071 5514 CORD 1 741BP-11D-164
171 630 084 3354 BOX 1 741BL-11V-071
172 630 084 3361 PANEL 1 741BL-11V-072
173 630 084 3378 PANEL 1 741BL-11V-073
181 630 066 8513 CONNECTOR 1 741BL-11D-152
182 630 056 9537 CORD 1 741BL-11D-153
183 630 057 3954 CORD 1 741BL-11D-154
184 630 000 2744 SWITCH,BUTTON 1 741BL-11D-151
185 407 035 4704 LED SLP-721F 1 741BL-11D-155
186 401 008 1707 CARBON 1.8K JB 1/2W 1 741BL-11D-156
187 630 072 0198 CORD 1 741BL-11D-951
188 630 076 0644 SWITCH,SEESAW 1 741BL-11D-258
189 630 000 4243 SOCKET 1 741VC-11D-051
191 630 000 5059 COUNTER 1 741BL-11D-351
192 407 139 6505 VARISTOR TNR9G470K 1 741BL-11D-355
193 630 078 4466 P.C.B,MOUNT(COUNTER) 1 741BL-11U-361
194 630 083 5496 FUSE HOLDER 3 741BL-11D-063
195 423 025 2109 FUSE 250V 6.3A 1 741BL-11D-058
196 423 022 8005 FUSE 250V 1A 1 741BL-11D-059
197 423 022 8104 FUSE 250V 2A 1 741BL-11D-060
