MODEL TIM-5100
0008-001
操作ボックス部 OPERATION BOX SECTION
Fig. BM-2 操作パネルＢ（前） Operation Panel B (Front)
MODEL TIM-5100
0008-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
BM-2
106 411 141 4008 WASHER V 4X9X0.8 6 FW4
107 411 141 2905 WASHER SPR 4 6 SW4
108 411 141 0307 NUT HEX 4 6 M4
121 411 119 2104 WASHER V 4X9X0.8 4 FW4 F
122 411 008 1706 WASHER SPR 4 4 SW4 F
124 411 042 3001 SCR PAN 4X10 2 M4X10 PAN
126 411 054 8506 NUT HEX 4 2 M4 F
151 630 078 8150 UNIT,DISPLAY 1 741BM-11D-051
152 630 033 4609 SWITCH,BUTTON 1 741BM-11D-052
153 630 033 4586 DISPLAY ELEMENT 1 741BM-11D-053
154 630 033 4593 ACCESSORY,SW 1 741BM-11D-054
155 630 066 7042 SWITCH,BUTTON 1 741BM-11D-055
156 630 000 2713 SWITCH,BUTTON 4 741BM-11D-056
157 630 000 0382 ACCESSORY,SW 5 741BM-11D-057
158 630 000 2515 SWITCH,BUTTON 2 741BM-11D-058
159 630 007 6066 SWITCH,BUTTON 2 741BM-11D-059
160 630 000 2744 SWITCH,BUTTON 1 741BM-11D-060
161 407 035 4704 LED SLP-721F 1 741BM-11D-061
162 401 008 1707 CARBON 1.8K JB 1/2W 1 741BM-11D-062
163 630 000 3130 SWITCH,SELECTOR 1 741BM-11D-063
164 630 035 0074 BUZZER 1 741BM-11D-064
165 407 139 6505 VARISTOR TNR9G470K 1 741BM-11D-065
168 630 070 3009 LAMP 1 741BB-11D-458
171 630 084 3026 PANEL 1 741BM-11V-171
172 630 075 7811 BRACKET 2 741BM-11V-172
MODEL TIM-5100
0008-001

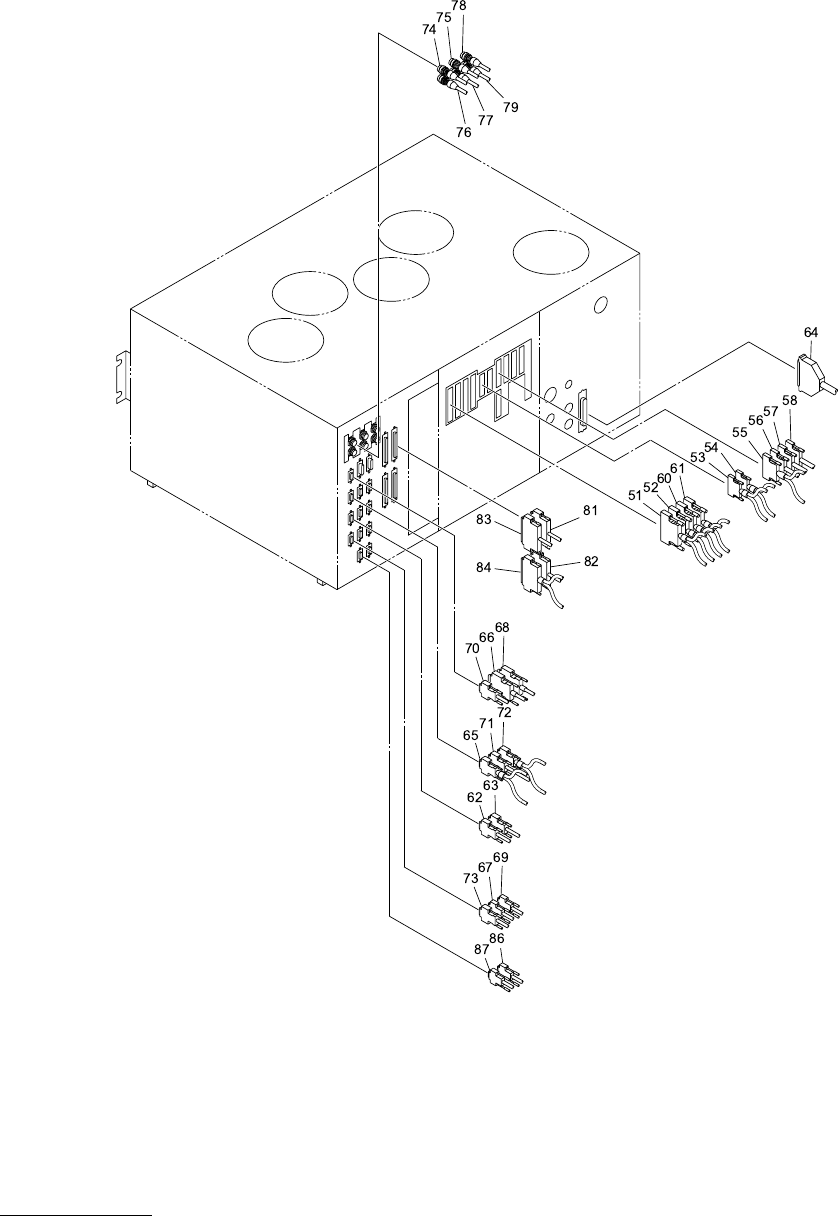

本体配線部 MACHINE WIRING SECTION
Fig. BP-1 制御ボックスへの配線 Wiring to Control Box
