P-0213-001.pdf - 第194页

MODEL TIM-5100 0008-001 前後工程Ｉ / Ｆ PREVIOUS/NEXT WORK PROCESS I/F Fig. BR-2 コンベア２ボックス底面 Coveyor 2 Box Lower

MODEL TIM-5100

0008-001

Key No. PART No. PART NAME Q’ty REMARKS

NOTE

BR-1

31 411 119 1909 WASHER V 3X7X0.5 6 FW3 F

32 411 086 4408 WASHER SPR 3 7 SW3 F

33 411 042 0703 SCR PAN 3X8 2 M3X8 PAN

34 411 113 0700 SCR PAN 3X16 1 M3X16 PAN

35 411 113 0809 SCR PAN 3X25 4 M3X25 PAN

36 411 034 7208 SCR FLT 3X8 9 M3X8 FLT

53 630 055 2201 UNIT,POWER 1 741UC-11D-053

56 630 000 3963 CONNECTOR 2 741UC-11D-056

57 630 000 3970 CONNECTOR 2 741UC-11D-057

58 630 004 6281 CONNECTOR 1 741UC-11D-058

59 630 004 6267 CONNECTOR 1 741UC-11D-059

61 630 051 1819 TERMINAL 1 741UC-11D-061

62 407 005 1306 DIODE DS135C 1 741UC-11D-062

63 630 062 4793 P.C.B,MOUNT(I/F) 1 741UC-11U-154

64 630 063 6680 ACCESSORY,P.C.B 4 741UC-11D-064

65 630 072 0211 CORD 1 741UC-11D-951

MODEL TIM-5100

0008-001

前後工程Ｉ / Ｆ PREVIOUS/NEXT WORK PROCESS I/F

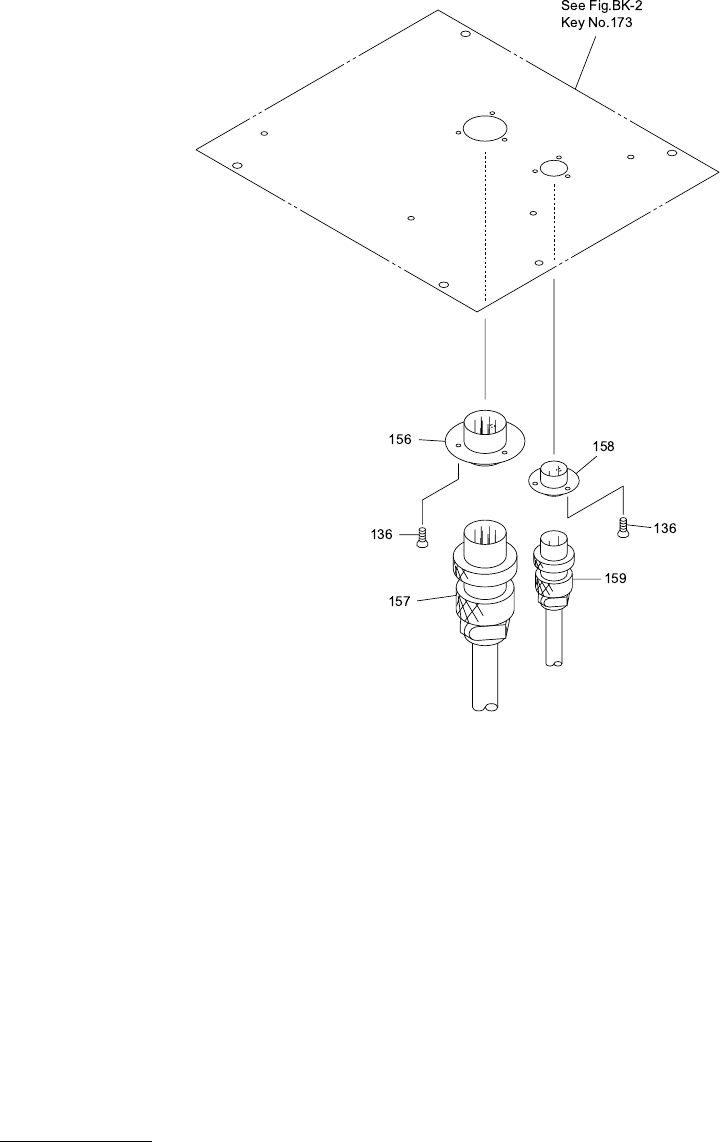

Fig. BR-2 コンベア２ボックス底面 Coveyor 2 Box Lower

MODEL TIM-5100

0008-001

Key No. PART No. PART NAME Q’ty REMARKS

NOTE

BR-2

136 411 034 7208 SCR FLT 3X8 6 M3X8 FLT

156 630 000 3963 CONNECTOR 1 741UC-11D-056

157 630 000 3970 CONNECTOR 1 741UC-11D-057

158 630 004 6281 CONNECTOR 1 741UC-11D-058

159 630 004 6267 CONNECTOR 1 741UC-11D-059
