MODEL TIM-5100 0008-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE F-1 2 unit/1 machine 1 630 006 9433 BEARING,RADIAL 4 741F--1 1H-001 2 630 001 1838 BEARING,RADIAL 2 741F--1 1H-002 3 630 069 8183 CYLINDER 1 741F-…
MODEL TIM-5100
0008-001
ノズルストッカ部 NOZZLE STOCKER SECTION

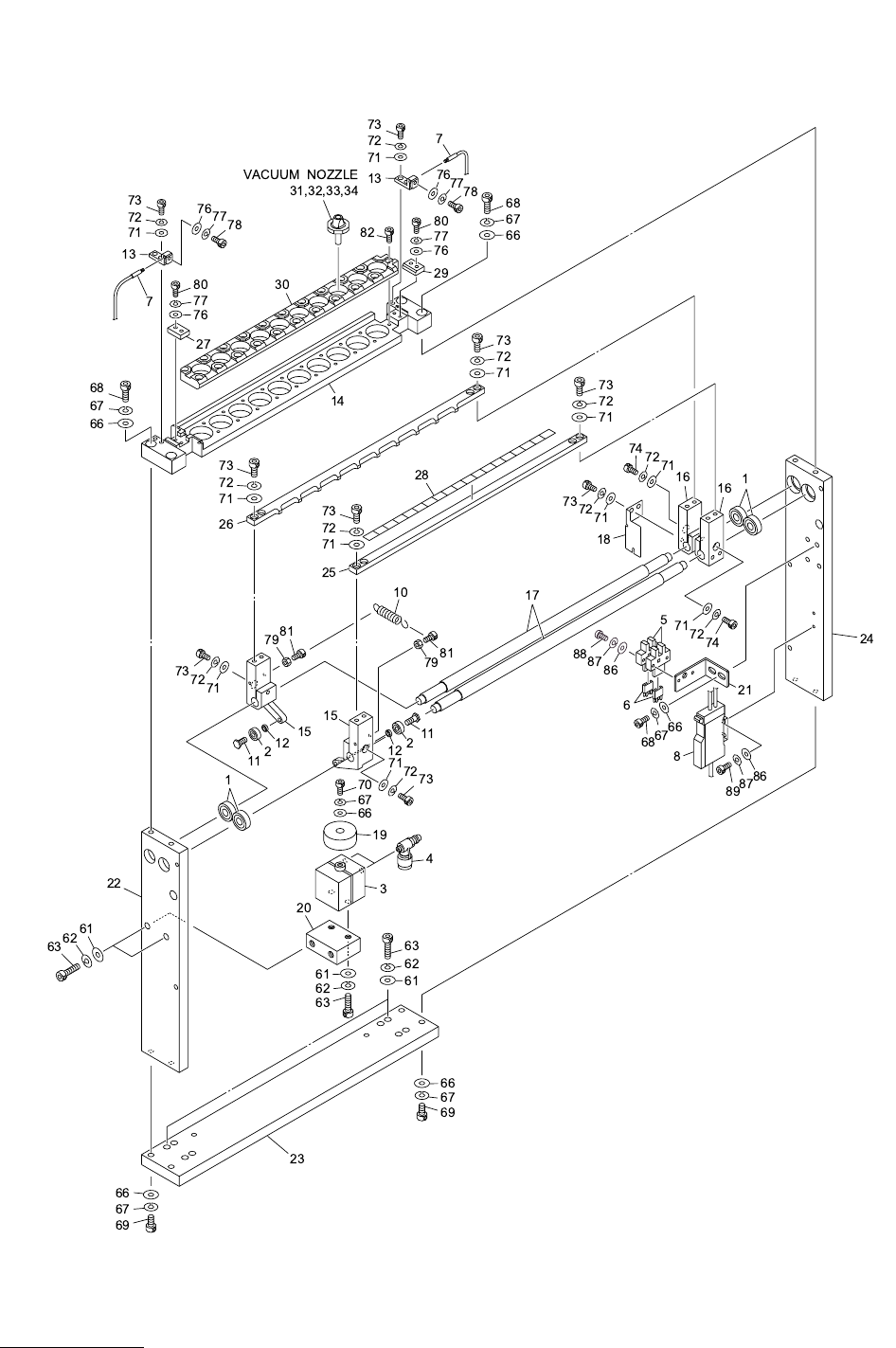

Fig. F-1 ノズルスッカ Nozzle Stocker
MODEL TIM-5100
0008-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
F-1 2 unit/1 machine
1 630 006 9433 BEARING,RADIAL 4 741F--11H-001
2 630 001 1838 BEARING,RADIAL 2 741F--11H-002
3 630 069 8183 CYLINDER 1 741F--11H-003
4 630 003 5162 AIR LINE EQPT 2 741F--11H-004
5 630 000 0245 SENSOR,PHOTO 2 741F--11H-005
6 630 000 0269 SENSOR,PHOTO(CONNECTOR) 2 741F--11H-006
7 630 069 8220 SENSOR,PELEC 1 741F--11H-007
8 630 069 8237 SENSOR,PELEC 1 741F--11H-008
10 630 002 9260 SPRING,TENSION 1 741F--11H-010
11 630 071 2292 BOLT,HEX 2 741F--11B-011
12 630 069 7810 COLLAR 2 741F--11B-012
13 630 069 7575 BLOCK 2 741F--11B-013
14 630 078 5951 PLATE 1 741F--11B-014
15 630 073 8759 LEVER(L) 2 741F--11B-015
16 630 073 8766 LEVER(R) 2 741F--11B-016
17 630 069 7599 SHAFT 2 741F--11B-017
18 630 082 1727 PLATE 1 741F--11B-018
19 630 082 1734 PLATE 1 741F--11B-019
20 630 069 7551 PLATE 1 741F--11B-020
21 630 085 4343 BRACKET 1 741F--11B-021
22 630 082 1604 PLATE 1 741F--11B-022
23 630 082 1611 PLATE 1 741F--11B-023
24 630 082 1628 PLATE 1 741F--11B-024
25 630 071 2278 PLATE 1 741F--11B-025
26 630 071 2285 PLATE 1 741F--11B-026
27 630 073 8704 PLATE 1 741F--11B-027
28 630 076 5076 NAME PLATE,INDEX 1 741F--11H-028
29 630 078 4640 PLATE 1 741F--11B-029
30 630 078 4657 PLATE 1 741F--11B-030
31 630 075 9334 ASSY,NOZZLE 1 741SA-110-001
32 630 075 9341 ASSY,NOZZLE 1 741SA-110-002
33 630 075 9358 ASSY,NOZZLE 1 741SA-110-003
34 630 075 9365 ASSY,NOZZLE 1 741SA-110-004
61 411 141 4305 WASHER V 6X12.5X1.6 8 FW6
62 411 141 3001 WASHER SPR 6 8 SW6
63 630 000 7909 BOLT,HEX-SCT 8 M6X25
66 411 141 4107 WASHER V 5X10X1 11 FW5
67 411 141 6705 WASHER SPR 5 11 SW5
68 630 000 7770 BOLT,HEX-SCT 4 M5X20
69 630 000 7763 BOLT,HEX-SCT 4 M5X16
70 630 000 7756 BOLT,HEX-SCT 3 M5X12
71 411 141 4008 WASHER V 4X9X0.8 18 FW4
72 411 141 2905 WASHER SPR 4 18 SW4
73 630 000 7626 BOLT,HEX-SCT 14 M4X10
74 630 000 7657 BOLT,HEX-SCT 4 M4X16
76 411 141 3902 WASHER V 3X7X0.5 6 FW3
77 411 141 2806 WASHER SPR 3 6 SW3
78 630 000 7510 BOLT,HEX-SCT 2 M3X8
79 630 000 7558 BOLT,HEX-SCT 2 M3X16
80 630 000 7534 BOLT,HEX-SCT 4 M3X12
MODEL TIM-5100
0008-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
F-1 2 unit/1 machine
81 411 140 9905 NUT HEX 3 2 M3
82 630 000 7527 BOLT,HEX-SCT 21 M3X10
86 411 119 1909 WASHER V 3X7X0.5 4 FW3 F
87 411 086 4408 WASHER SPR 3 4 SW3 F
88 411 162 1604 SCR PAN 3X20 2 M3X20 PAN
89 411 040 6202 SCR PAN 3X10 2 M3X10 PAN
