MODEL TIM-5100 0008-001 カバー部 COVER SECTION Fig. G-6 安全バー Safety Bar
MODEL TIM-5100
0008-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
G-5
401 630 085 5432 COVER 1 741G--11B-401
402 630 086 5745 COVER 1 741G--11B-402
403 630 086 5318 COVER 1 741G--11B-403
404 630 085 5463 COVER 1 741G--11B-404
405 630 093 1273 COVER 1 741G--11B-405
406 630 085 5487 COVER 1 741G--11B-406
407 630 085 5999 COVER 2 741G--11B-407
408 630 086 5349 COVER 1 741G--11B-408
410 630 085 6026 COVER 1 741G--11B-410
411 630 085 6033 COVER 1 741G--11B-411
412 630 086 5370 COVER 1 741G--11B-412
413 630 085 6170 COVER 1 741G--11B-413
414 630 085 6187 COVER 1 741G--11B-414
415 630 085 6194 COVER 1 741G--11B-415
416 630 085 6200 COVER 1 741G--11B-416
417 630 086 6216 COVER 1 741G--11B-417
418 630 086 6223 COVER 1 741G--11B-418
419 630 085 8075 COVER 1 741G--11B-419
420 630 085 8082 COVER 1 741G--11B-420
430 411 113 9109 SCR TRS 5X10 75 M5X10 TRS
MODEL TIM-5100
0008-001
カバー部 COVER SECTION

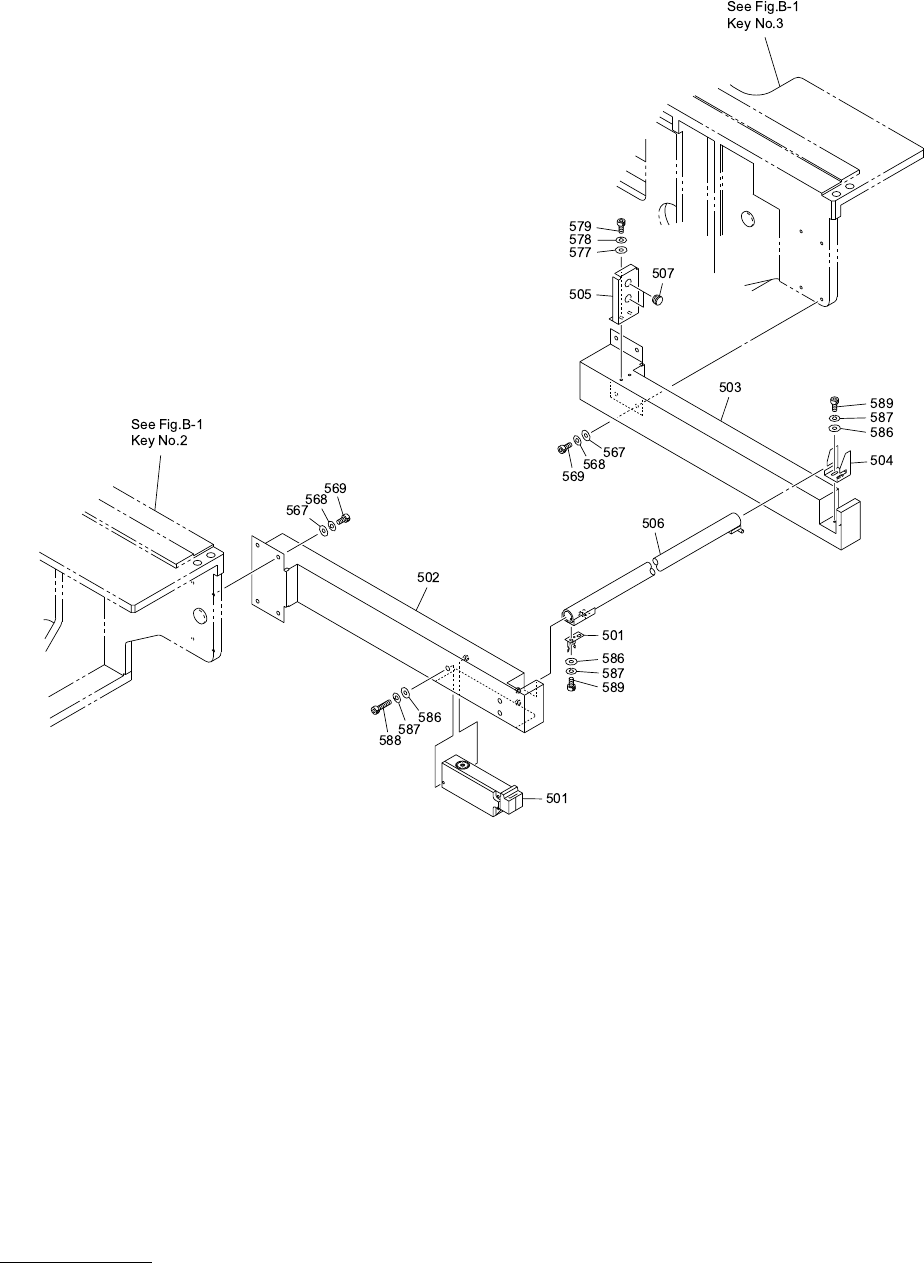

Fig. G-6 安全バー Safety Bar
MODEL TIM-5100
0008-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
G-6
501 630 050 0806 SOLENOID 2 741G--11H-501
502 630 086 2744 FRAME(LEFT) 2 741G--11B-502
503 630 086 2768 FRAME(RIGHT) 2 741G--11B-503
504 630 085 8211 BRACKET 2 741G--11B-504
505 630 085 8440 BRACKET 2 741G--11B-505
506 630 081 6273 SHAFT 2 741G--11B-506
507 630 005 4057 ACCESSORY,SW 4 741G--11H-507
567 411 141 4305 WASHER V 6X12.5X1.6 16 FW6
568 411 141 3001 WASHER SPR 6 16 SW6
569 630 000 7886 BOLT,HEX-SCT 16 M6X16
577 411 141 4107 WASHER V 5X10X1 4 FW5
578 411 141 6705 WASHER SPR 5 4 SW5
579 630 000 7756 BOLT,HEX-SCT 4 M5X12
586 411 141 4008 WASHER V 4X9X0.8 14 FW4
587 411 141 2905 WASHER SPR 4 14 SW4
588 630 000 7695 BOLT,HEX-SCT 6 M4X35
589 630 000 7619 BOLT,HEX-SCT 8 M4X8
