MODEL TIM-5100 0008-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE MB-9 2 unit/1 machine 804 630 068 4742 BRACKET 1 741MB-1 1B-704 807 630 083 3997 SWITCH,PRESSURE 1 741MB-1 1H-207 808 630 003 7302 PIPE FITTINGS 1…
MODEL TIM-5100
0008-001
異形ヘッドＬ部 DEFORM HEAD L SECTION

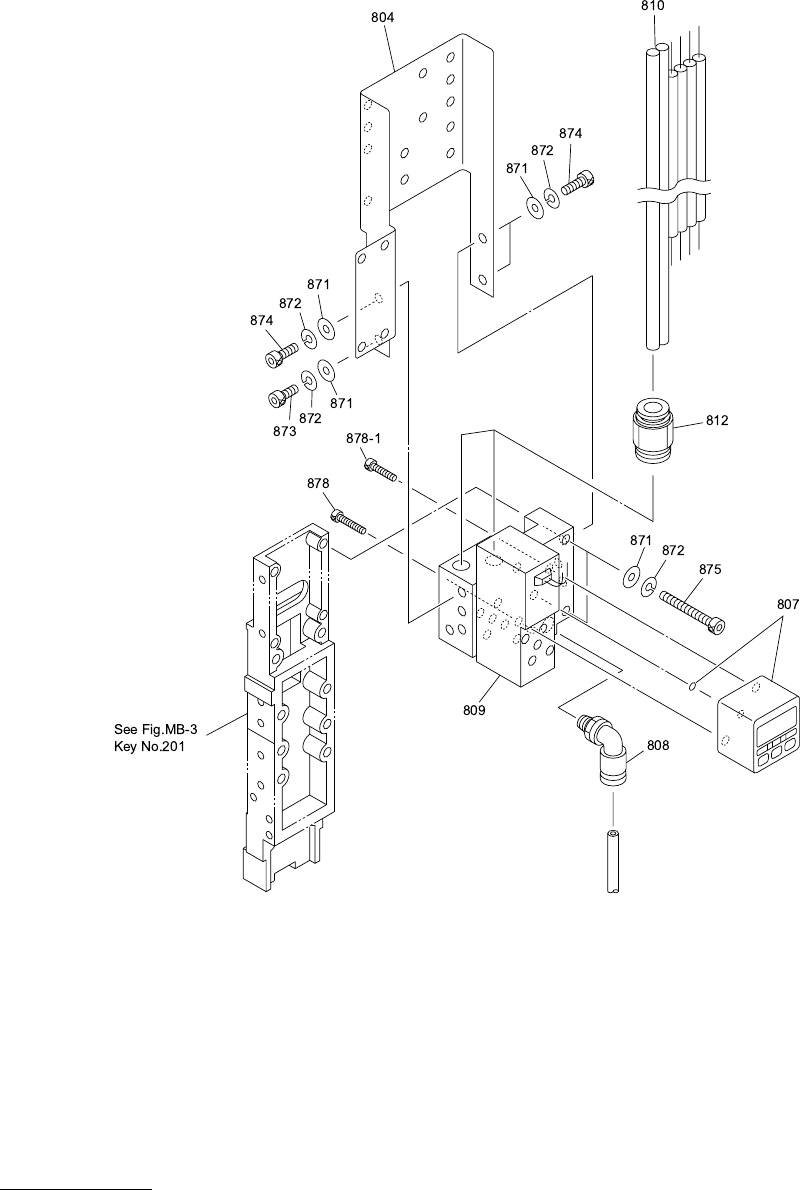

Fig. MB-9 マニホールド Manihold
MODEL TIM-5100
0008-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MB-9 2 unit/1 machine
804 630 068 4742 BRACKET 1 741MB-11B-704
807 630 083 3997 SWITCH,PRESSURE 1 741MB-11H-207
808 630 003 7302 PIPE FITTINGS 1 741MB-11H-208
809 630 068 8047 BLOCK 1 741MB-11H-709
810 630 069 5076 TUBE 1 741MB-11H-710
812 630 003 6985 PIPE FITTINGS 2
871 411 141 4008 WASHER V 4X9X0.8 8 FW4
872 411 141 2905 WASHER SPR 4 8 SW4
873 630 000 7626 BOLT,HEX-SCT 1 M4X10
874 630 000 7633 BOLT,HEX-SCT 3 M4X12
875 630 000 7688 BOLT,HEX-SCT 4 M4X30
878 630 000 7558 BOLT,HEX-SCT 1 M3X16
879 630 000 7541 BOLT,HEX-SCT 1 M3X14
MODEL TIM-5100
0008-001
異形ヘッドＲ部 DEFORM HEAD R SECTION
Fig. MC-1 Ｌ軸駆動ユニット L Axis Driver Unit
