MODEL TIM-5100
0008-001
コンベア部 CONVEYOR SECTION

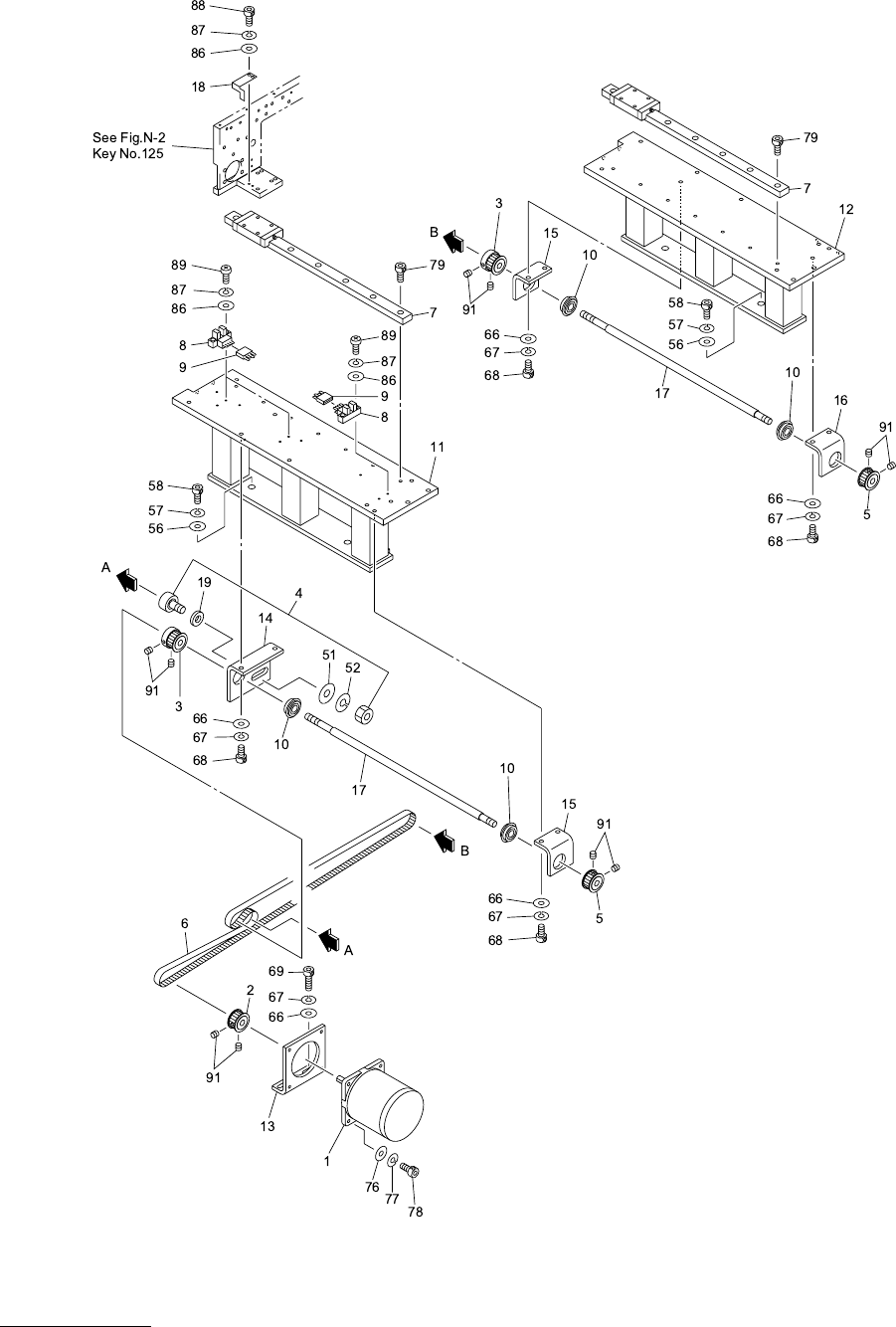

Fig. N-1 コンベアベ－ス Conveyor Base
MODEL TIM-5100
0008-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
N-1
1 630 009 5869 MOTOR,STEPPING 1 741N--11H-001
2 630 069 1894 PULLEY,TIMING 1 741N--11H-002
3 630 069 1832 PULLEY,TIMING 2 741N--11H-003
4 630 072 1614 CAM FOLLOWER 1 741N--11H-004
5 630 069 1818 PULLEY,TIMING 2 741N--11H-005
6 630 083 6769 BELT,TIMING 1 741N--11H-006
7 630 083 5793 GUIDE,LINEAR 2 741N--11H-007
8 630 000 0252 SENSOR,PHOTO 2 741N--11H-008
9 630 000 0269 SENSOR,PHOTO(CONNECTOR) 2 741N--11H-009
10 630 001 1425 BEARING,RADIAL 4 741N--11H-010
11 630 085 4350 SUPPORT 1 741N--11B-011
12 630 085 4367 SUPPORT 1 741N--11B-012
13 630 084 7123 BRACKET 1 741N--11B-013
14 630 083 7872 BRACKET 1 741N--11B-014
15 630 083 7889 BRACKET 2 741N--11B-015
16 630 083 7896 BRACKET 1 741N--11B-016
17 630 084 1787 SHAFT 2 741N--11B-017
18 630 084 1039 BRACKET 1 741N--11B-018
19 630 084 5884 COLLAR 1 741N--11B-019
51 411 141 4800 WASHER V 12X24X2.5 1 FW12
52 411 141 3308 WASHER SPR 12 1 SW12
56 630 001 0244 WASHER 4 BW8
57 411 141 3100 WASHER SPR 8 4 SW8
58 630 000 8012 BOLT,HEX-SCT 4 M8X20
66 411 141 4305 WASHER V 6X12.5X1.6 10 FW6
67 411 141 3001 WASHER SPR 6 10 SW6
68 630 000 7886 BOLT,HEX-SCT 8 M6X16
69 630 000 7909 BOLT,HEX-SCT 2 M6X25
76 411 141 4107 WASHER V 5X10X1 4 FW5
77 411 141 6705 WASHER SPR 5 4 SW5
78 630 000 7725 BOLT,HEX-SCT 4 M5X6
79 630 000 7763 BOLT,HEX-SCT 14 M5X16
86 411 141 3902 WASHER V 3X7X0.5 6 FW3
87 411 141 2806 WASHER SPR 3 6 SW3
88 630 000 7503 BOLT,HEX-SCT 2 M3X6
89 411 040 7803 SCR PAN 3X12 4 M3X12 PAN
91 630 000 8951 SET SCREW 10 M5X8 SET

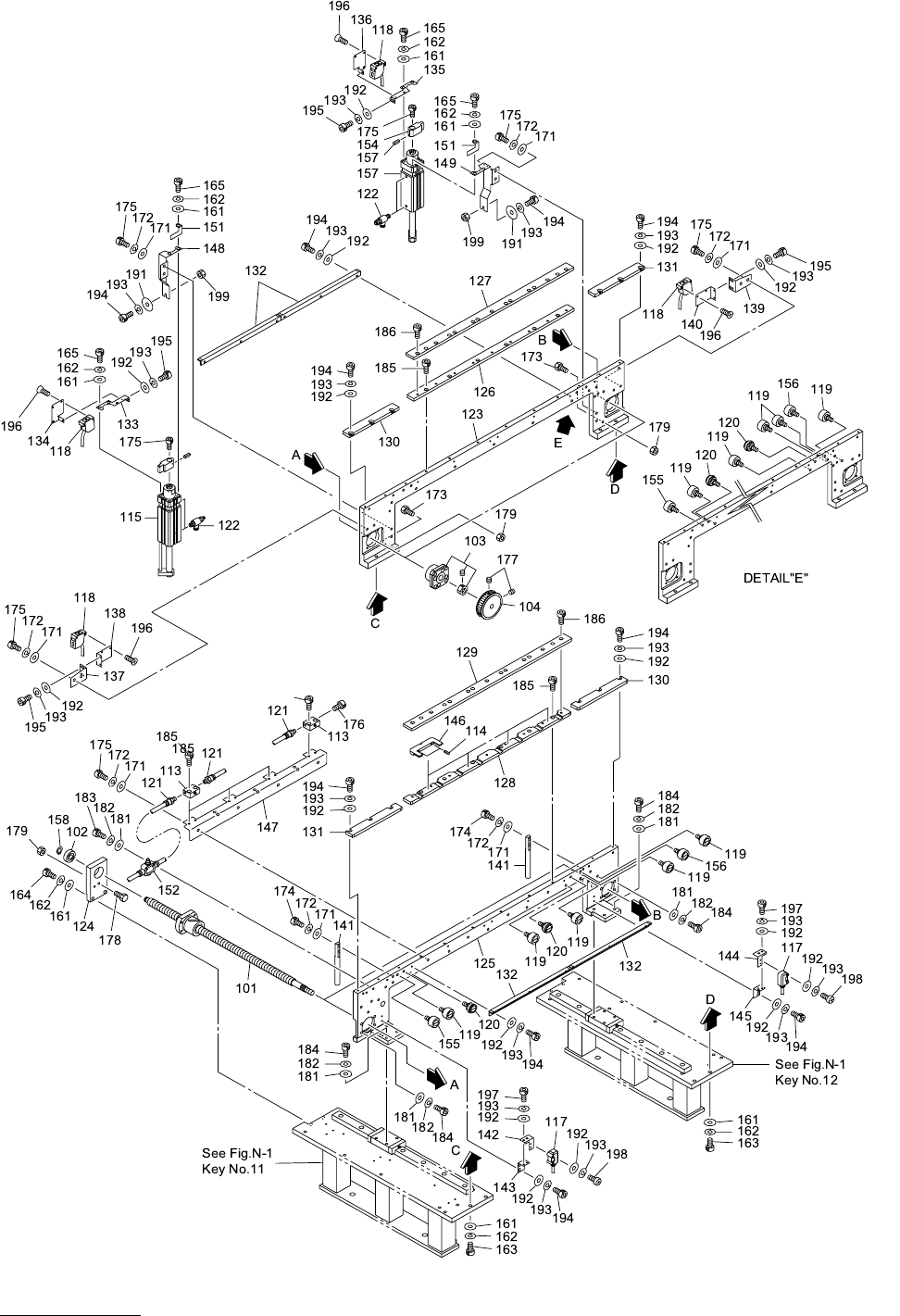

MODEL TIM-5100
0008-001
コンベア部 CONVEYOR SECTION
Fig. N-2 コンベア（中央） Conveyor Base Upper (Center)
