4.3 Main Pc Name
The current Repair PC name.
4.4 Map Location
The path that all images save in, including PC name and the hard disk
name (Default is D).
4.5 SFC Output Setting
Turn off the [InsertData.exe] first, and wait till the completion of
following settings to reopen [Insert Data.exe].
Step1. Run [c:\rsinstall\pinstall.exe], and switch to [parameter setting]
page.
Step2. Select the output type of SFC in [SFC Type] field (for example,
[confirm] is component confirming file, [ALL] is component
confirm+original file, [winall] is window confirm+original
file….etc, use the type of setting that user side required).

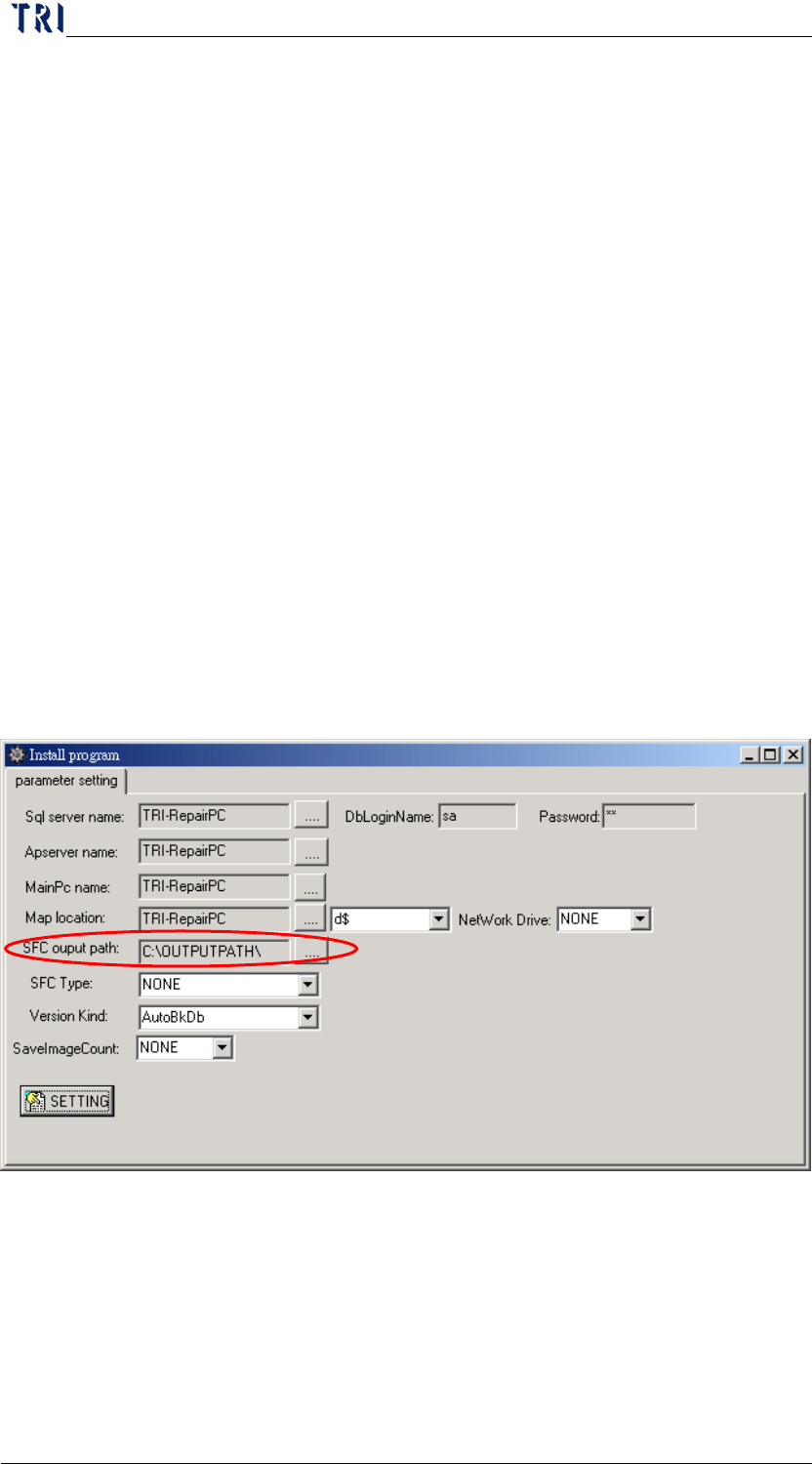

Step3. Set the path that you want to save the SFC files in at [sfc output
path] field.
Step4. Press [SETTING].
Step5. Press the [ENTER] key will generate a text file under [sfc
output path], while maintaining the data files.
The data file will be saved under [c:\sfcbk] if the shop flow category is
not being connected
System doesn’t output the SFC file when you select [None] at [SFC
Type] field.

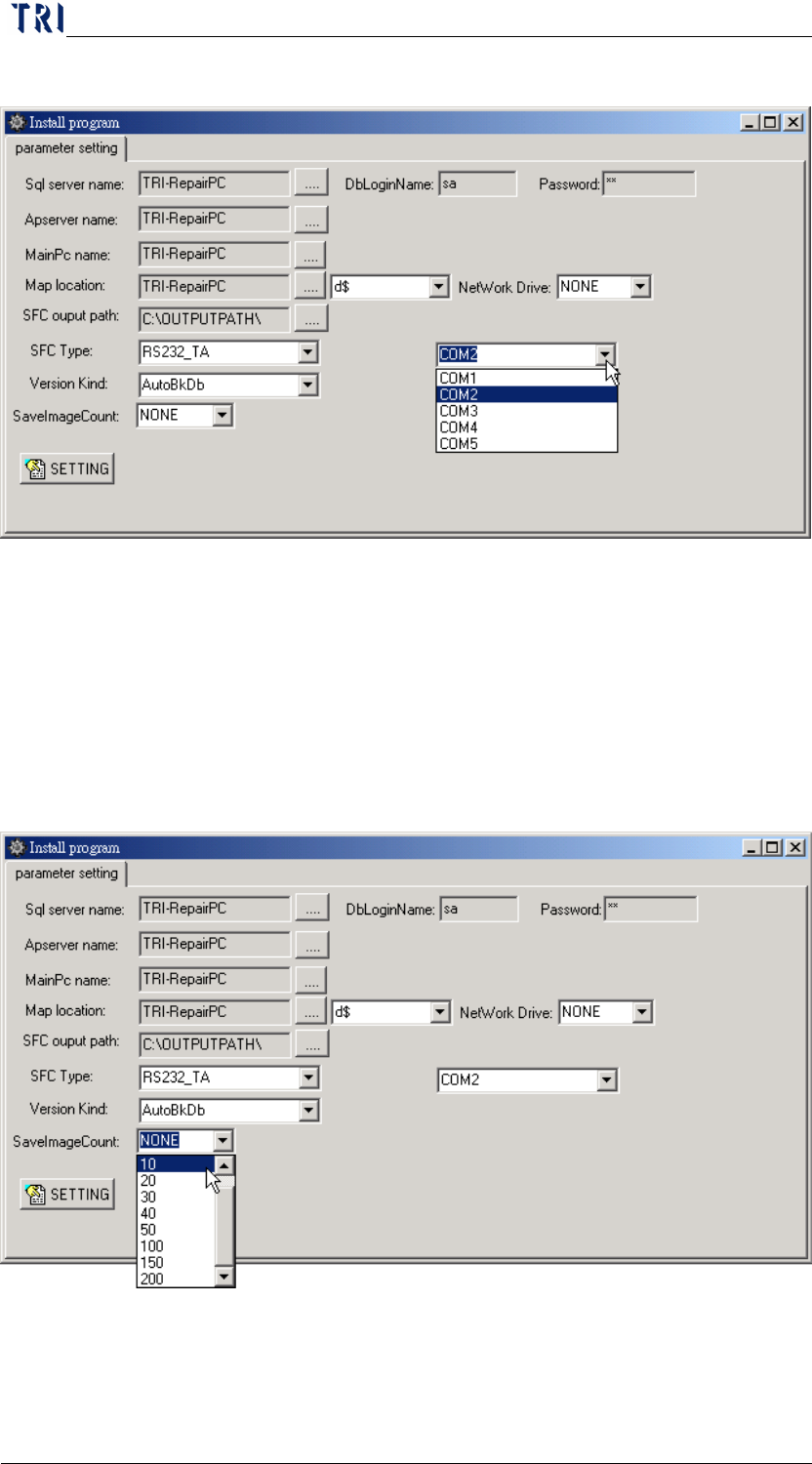

When you select [RS232_TA] at [SFC Type] field, it uses the RS232 as
the output surface and you have to select a corresponding Port Number.
Chapter 2 Repair Station Main Program
AOI Repair Station
29
The Port Number can’t be the same as the barcode reader.
4.6 Version Kind
Select if you want to backup database automatically. The backup files
will be saved in [C:\Aoidata_bk] folder.
AutoBkDb－Enable the auto backup database function.
NONE－Disable the auto backup database function.
4.7 SaveImageCount
It means the constraint of image count that is outputted by YMS
system. [None] means that there is no constraint for image output.
5 Entering Main Program
Double click on the icon to start the main program.
Chapter 2 Repair Station Main Program
AOI Repair Station
30
The following window is appeared. You have to fill [User ID], [Password]
and other items and press [OK] to enter the program.
User ID－Input the user name. You also can create a new user; see
Section 8.
Password－Input the password corresponding to the user. The default
user is [USER] and default password is [1234].
SHIFT－Select a shift. See
Section 7.3 to set shift or schedule.
Language－Select a language. The language can be defined by you at
[C:\rsinstall\Language\english.txt] or [C:\rsinstall\Language\big5.txt].
Confirm Method－Select you want to confirm the failed images by
[Component] or [Window].
