Chapter 2 Repair Station Main Program
AOI Repair Station
39
6.4.12

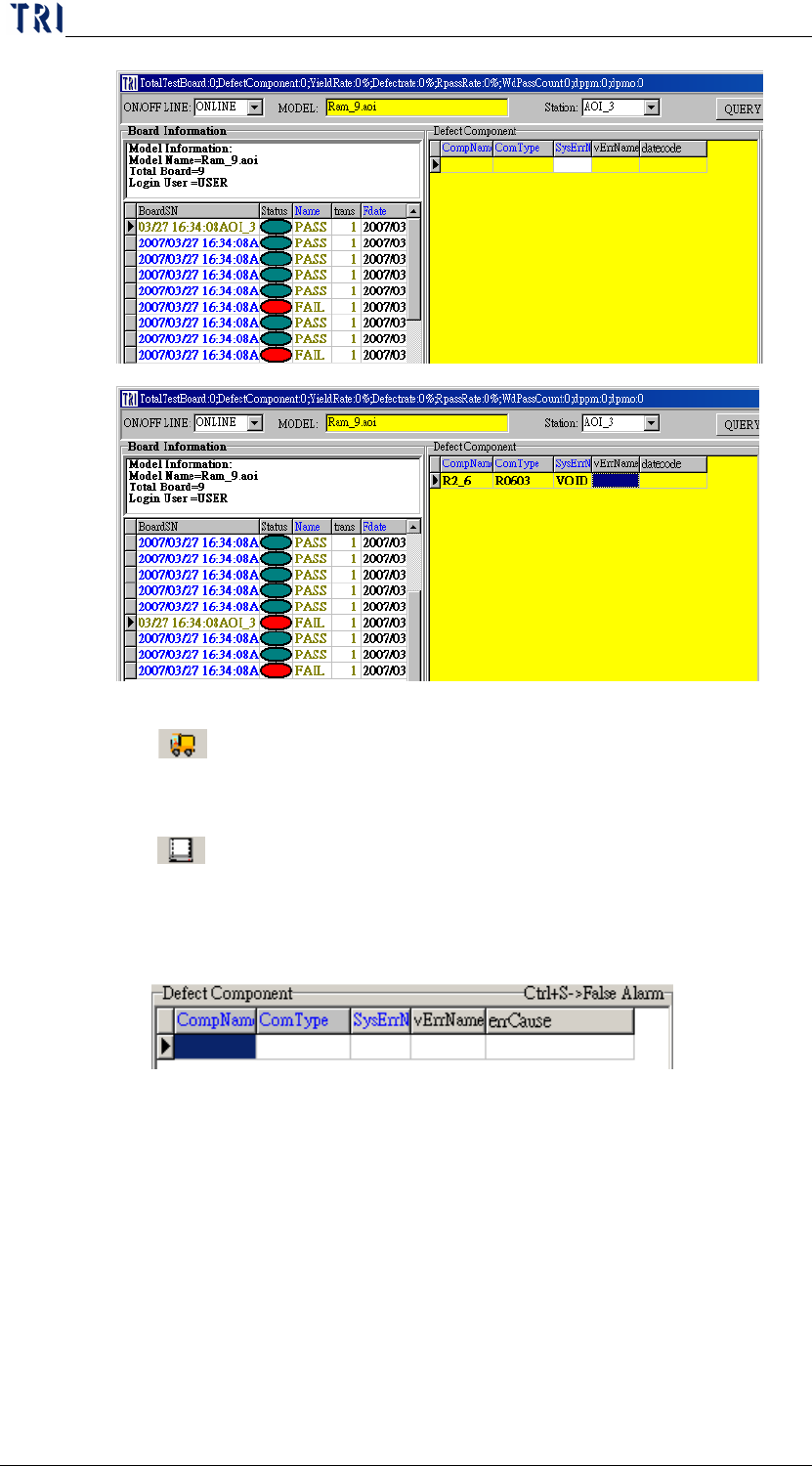

Barcode Link－Link with the customer system to capture
barcode data.
6.4.13 Key in defect cause－When the function is enabled, there will
be a new field named “errCause” for user to key in the error cause.
After user confirms a board as “Repair”, a defect cause window will
pop up to be choose a defect cause.
Chapter 2 Repair Station Main Program
AOI Repair Station
40

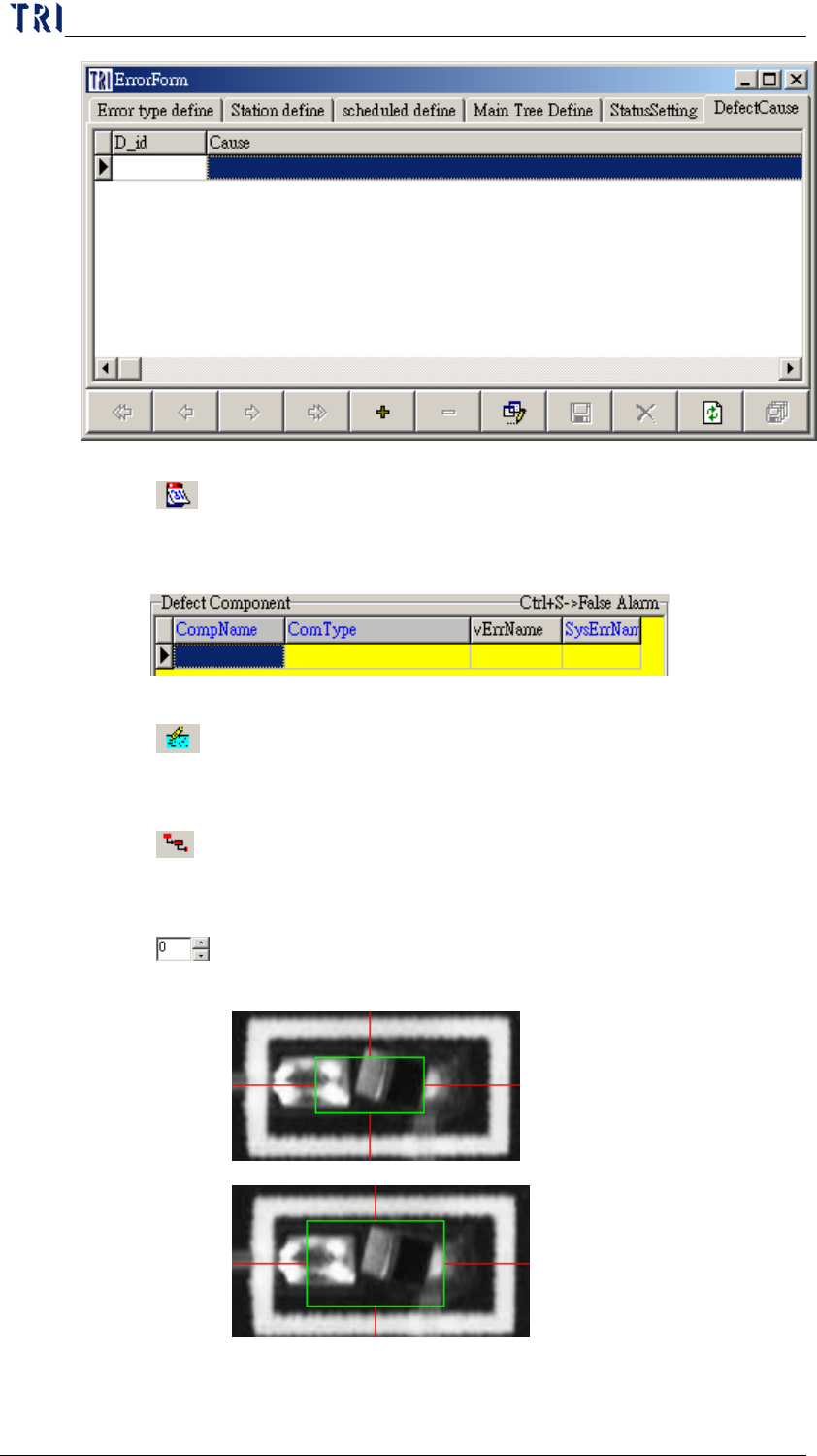

6.4.14 Save Grid Size－After user adjusts the fields manually, press
this button to save the setting. When user starts the program next
time, the fields will display as the settings.
6.4.15
Window Sort by Priority－The sequence in [Defect Window]
will follow the [Priority] field in [Define Error].
6.4.16 Only Show Last Records (Offline)－For a board that is tested for
several times, use this function to only display the last data.
6.4.17 FOV Frame Resize－Enlarge the green box that is to mark the
position of the component. The unit is pixel.
0
10

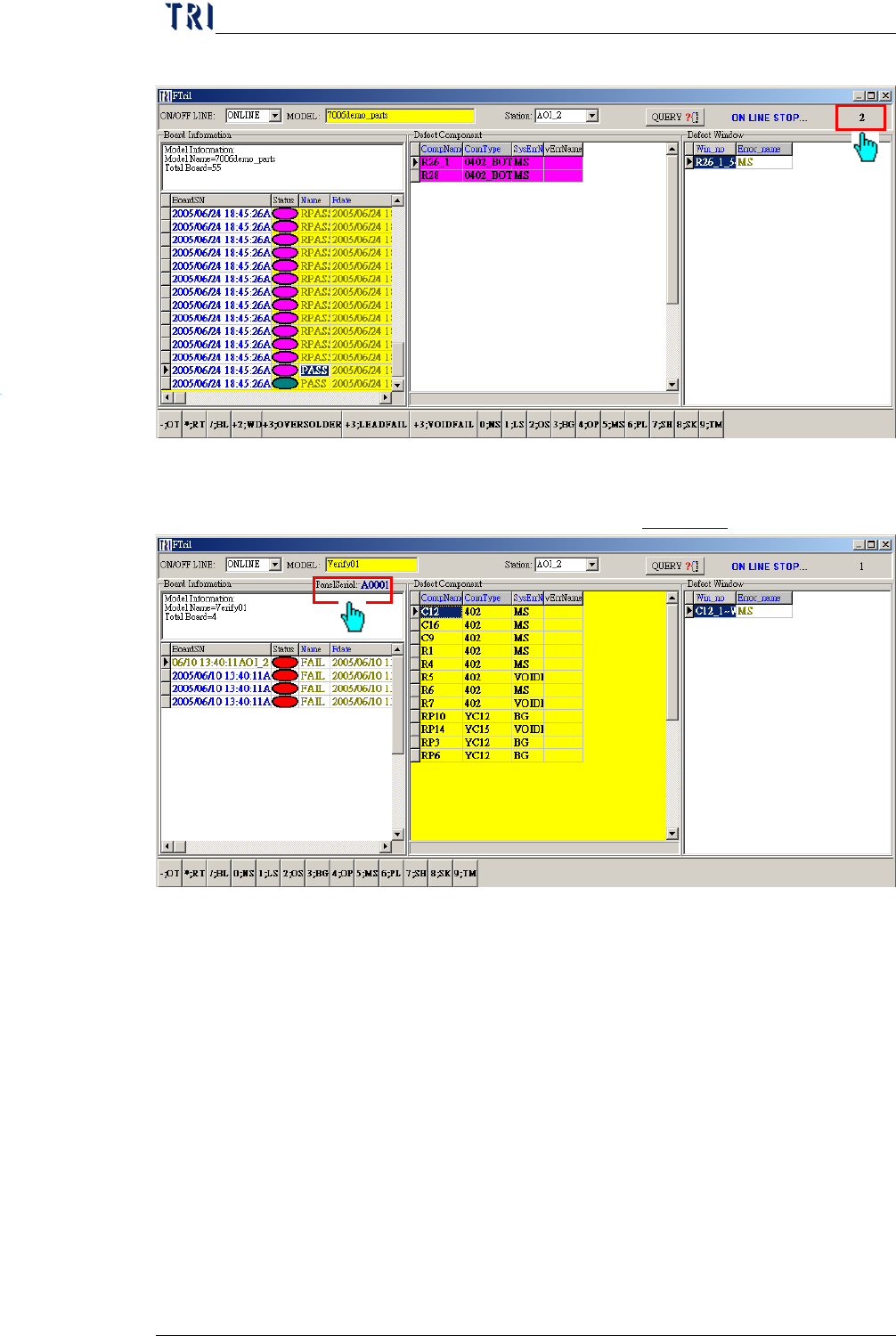

6.4.18 Unconfirmed number－When you select online mode, system shows
Chapter 2 Repair Station Main Program
AOI Repair Station
41
the number of data that have not been confirmed yet
6.4.19 PanelSerial－This information only shows when [PanelSerialShow]
function is enabled. See more details in
10.6.6.19.
6.4.20 Model Filter－The field only shows when you select offline mode.
You can input a model name to be a condition to query or input [*] to
not use this function.
