Chapter 2 Repair Station Main Program

AOI Repair Station

7.1 Error Type Define

 You can adjust the color or text of the [Error Area] in Confirm work

frame.

 Procedure

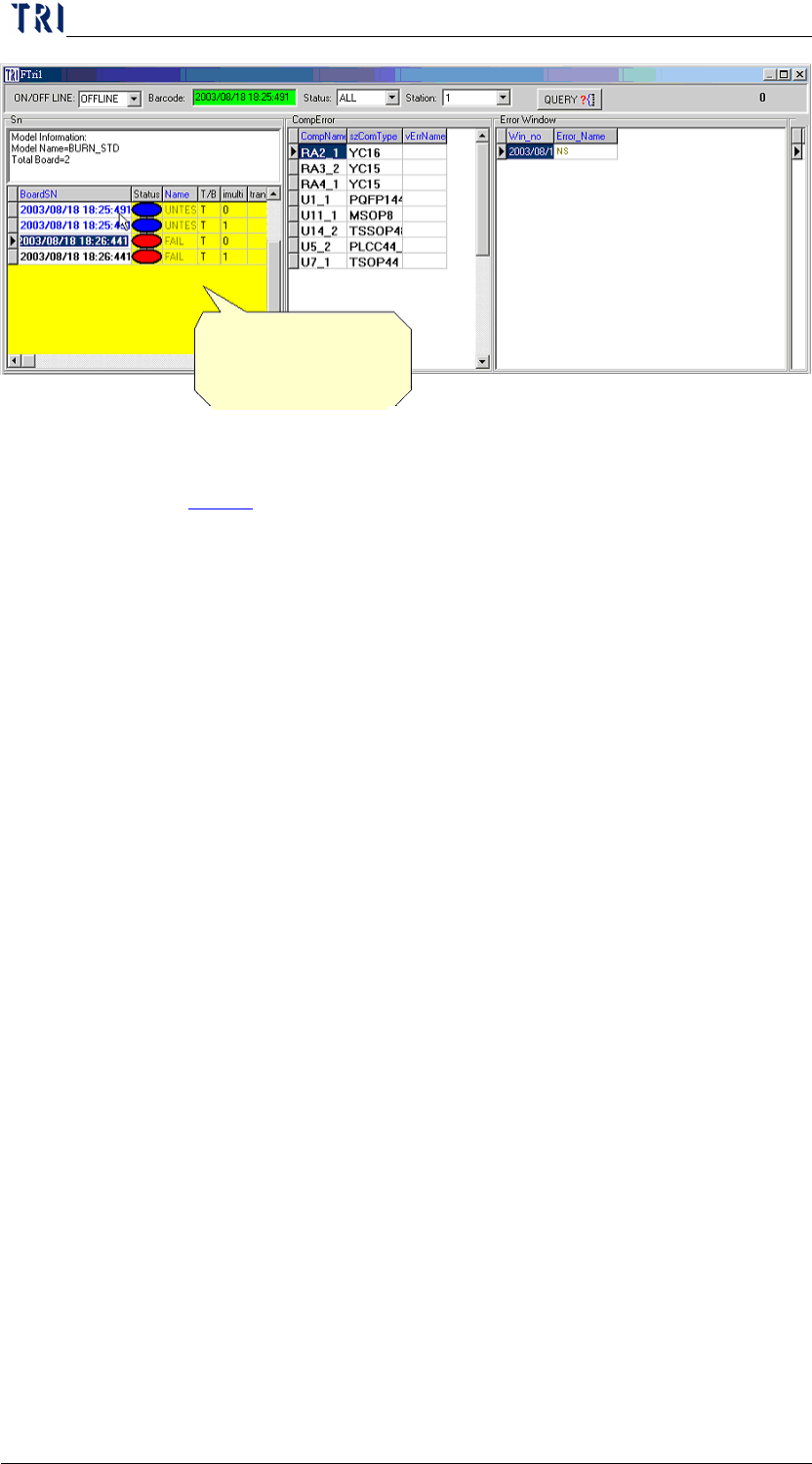

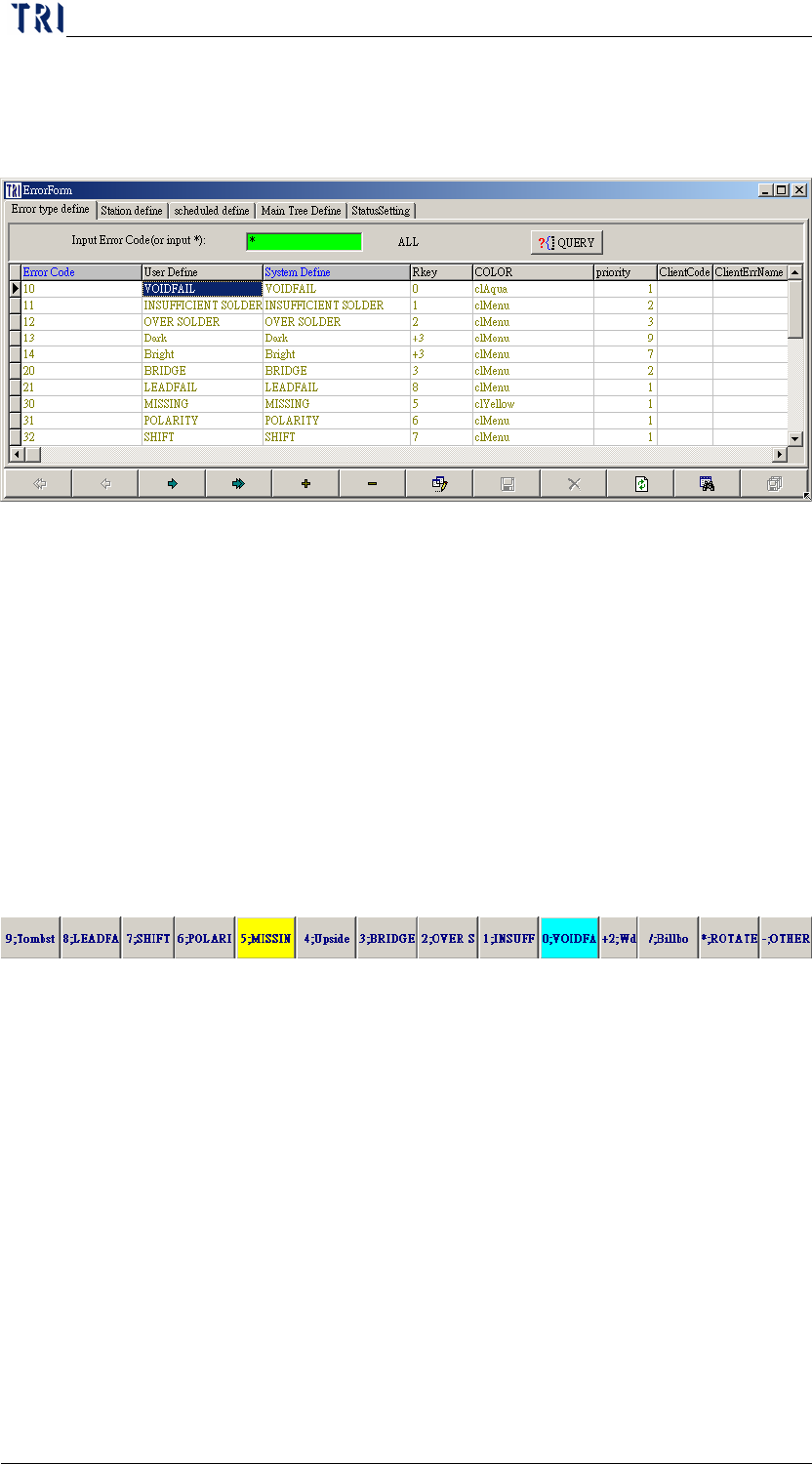

Step1. Press[QUERY]

Step2. Edit content

 Error Code－The system-defined error code.

 SYSTEM Define－The system-defined error name. Do not

modify.

 USER DEFINE－May change to ERROR CODE of user

side

 RKEY－is the Hotkey of the ERROR CODE.

 COLOR－Double click on this field then you can define

the color of every error button.

 Priority－Set the priority of ERROR CODE. When there

are more than one defect for a component it shows .It’s only

used in special cases, no setting is necessary

 Client Code－User can define the error code at this field.

It’s because clients may want the error code to be the same

with their SFC system; using the field has to select the

corresponding SFC type.

 Client Err Name－User can define the error name at this

field. It’s because clients may want the error name to be the

same with their SFC system; using the field has to select the

corresponding SFC type.

 Press [+] at the bottom of screen to add other Codes, then

Chapter 2 Repair Station Main Program

AOI Repair Station

enter a value to it (attention: [Error Code] can not be

identical to any other saved data, [Error Code], [System

Define], [RKEY] and [User Define] field must enter a value,

others may enter values that are the same as other data

Step3. Press [Save] after the modification.

7.2 Station Define

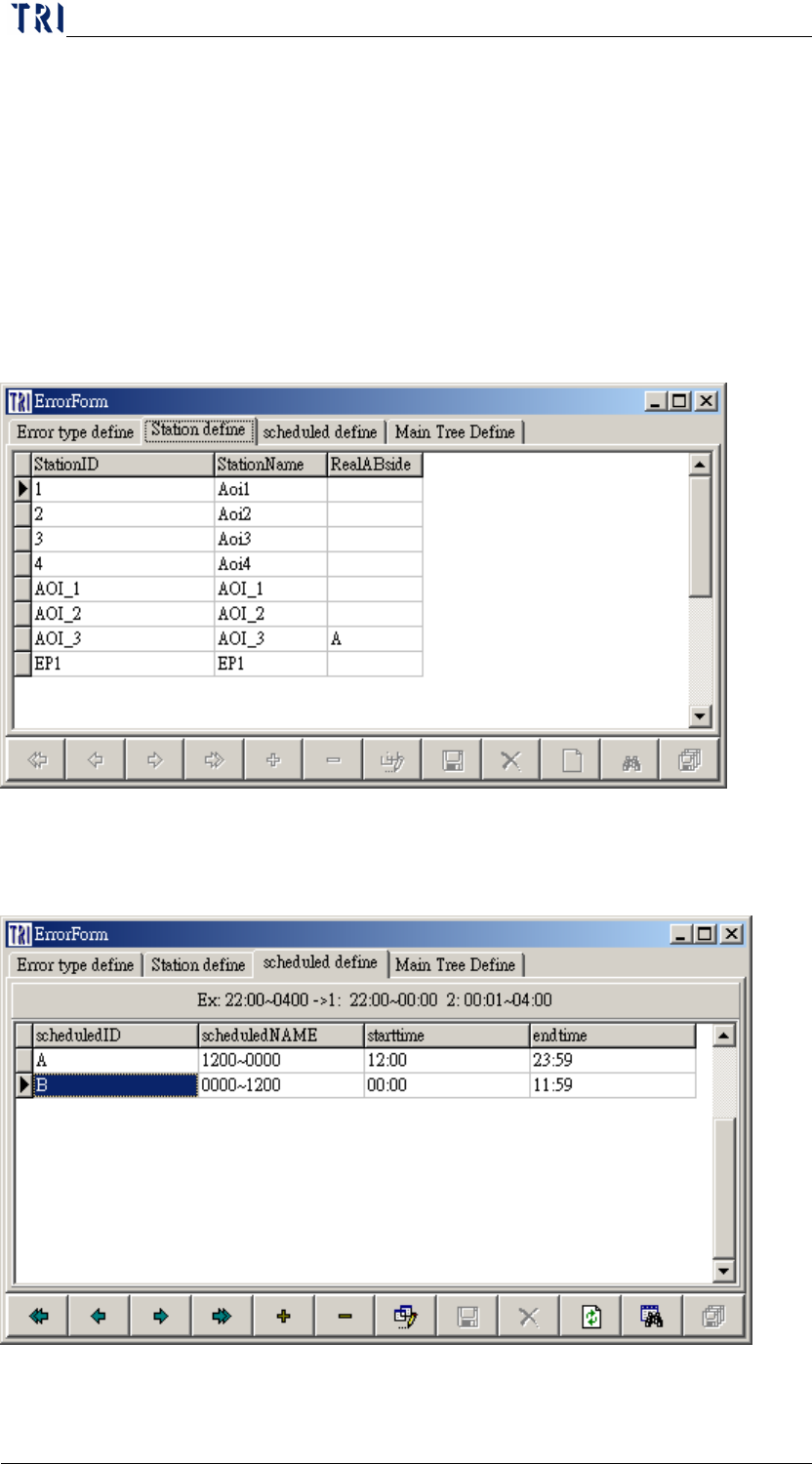

 You can query or modify the station ID in this page. SPC program

define station according to this table.

7.3 Schedule Define

 You can define the schedule of operator here.
