Chapter 2 Repair Station Main Program
AOI Repair Station
67

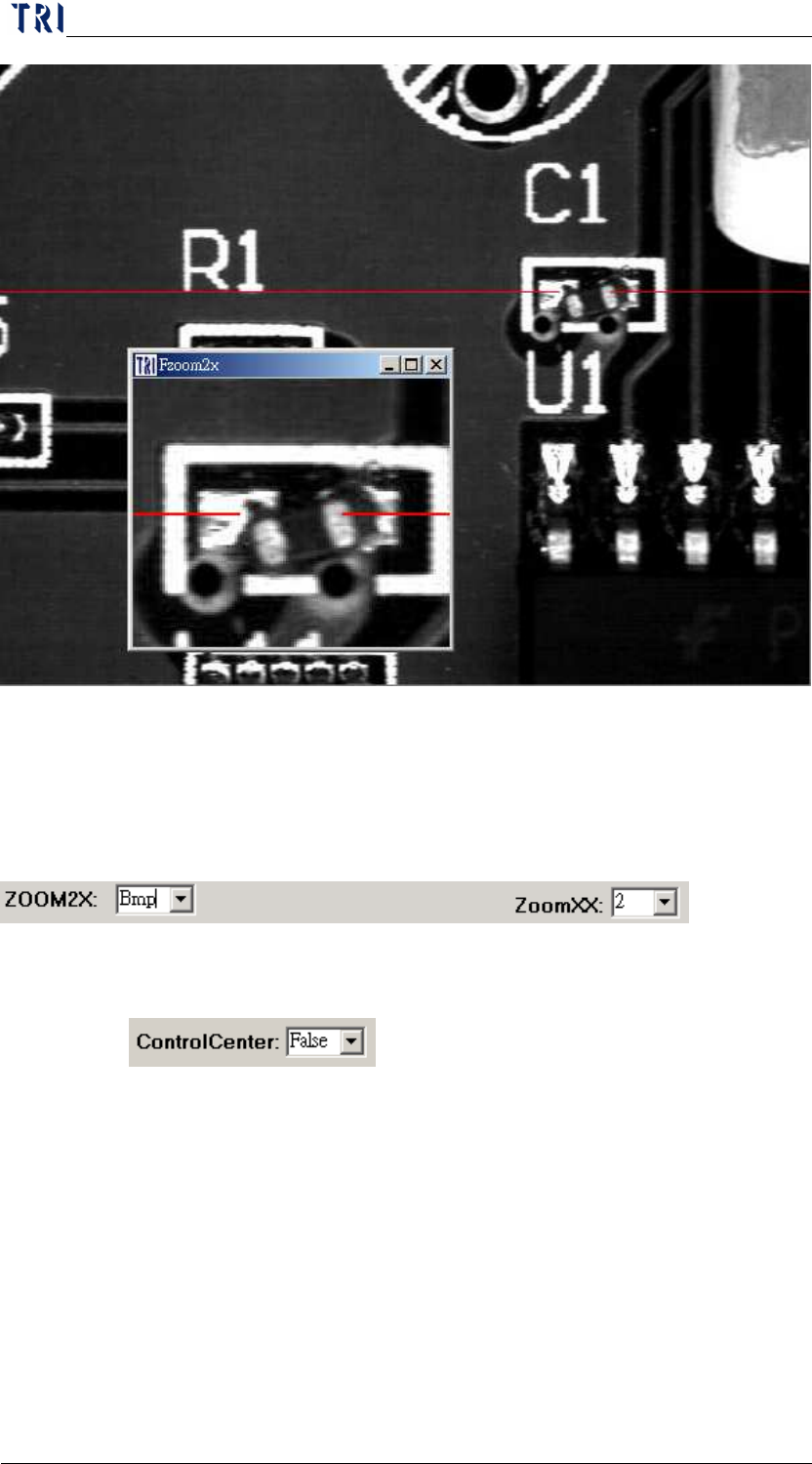

Interpolation－You can select [True] and the image enlarges with
interpolation method. The enlarged image is looked smoother.
When you select [BMP], system displays an additional BMP image.
The function has to cooperate with AOI machine to indicate the
specific component that you want to output BMP images.
10.6.6.25 Control Center
When this is set as [True], under [Online] mode, system will
display the unconfirmed data automatically and user doesn’t has to
key in the model name and Station ID.
When this is set as [OneByOne], the system will inspect the next
board till the former board has been confirmed.
Chapter 2 Repair Station Main Program
AOI Repair Station
68

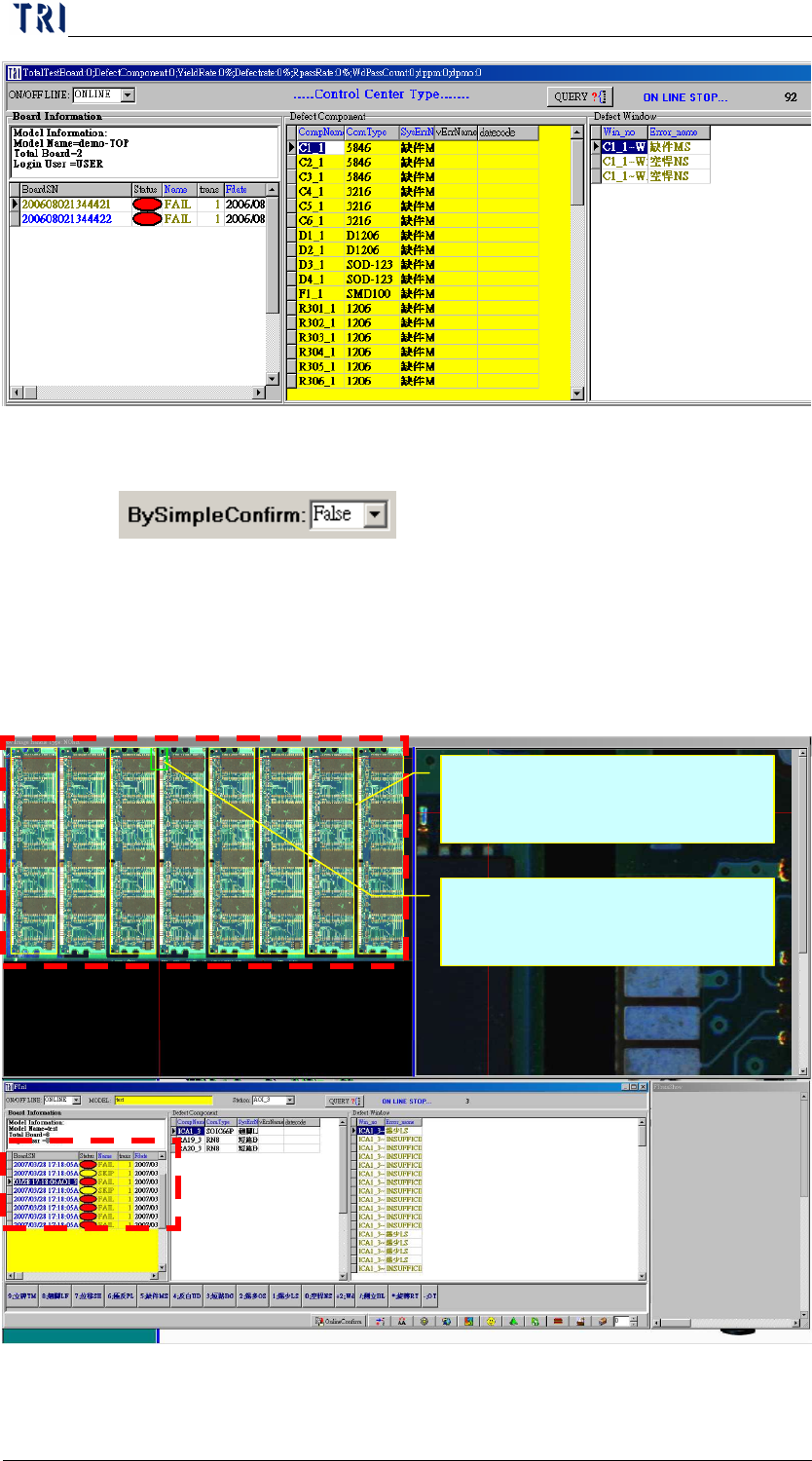

10.6.6.26 By Simple Confirm
The function is especially used for a great quantity of multi-boards.
When it’s set as [True], system will mark the defects on the panel
map directly. User only has to review the defects and press [Enter]
to confirm the panel. But the data confirmed this way will not be
calculated in SPC program.
Mark the fail board by yellow
frame.
Mark the defect location by
green frame and red line.
Chapter 2 Repair Station Main Program
AOI Repair Station
69
10.6.6.27 Speed7500_Transfer
When it’s [True], AOI machine will do the image processing.
When it’s [False], [InsertData.exe] will do the image processing.
When it’s [FrontEx], the image will be dealt with [Ptri1.exe]. For
all the situations mentioned before, system will display the image
after image processed. When it’s [SpeedSimpleDraw], the Repair
Station will not modify the image and display it directly; and we
will see an image with lower quality.
10.6.6.28 Show Skip Board
When it is [True], system will mark the SKIP boards with yellow
frame and cross line.
When [Add Pass Board] is checked, the PASS board also will be
marked on the panel map.
Mark the SKIP boards with
yellow frame and cross line.
