Chapter3 SPC User Manual

AOI Repair Station

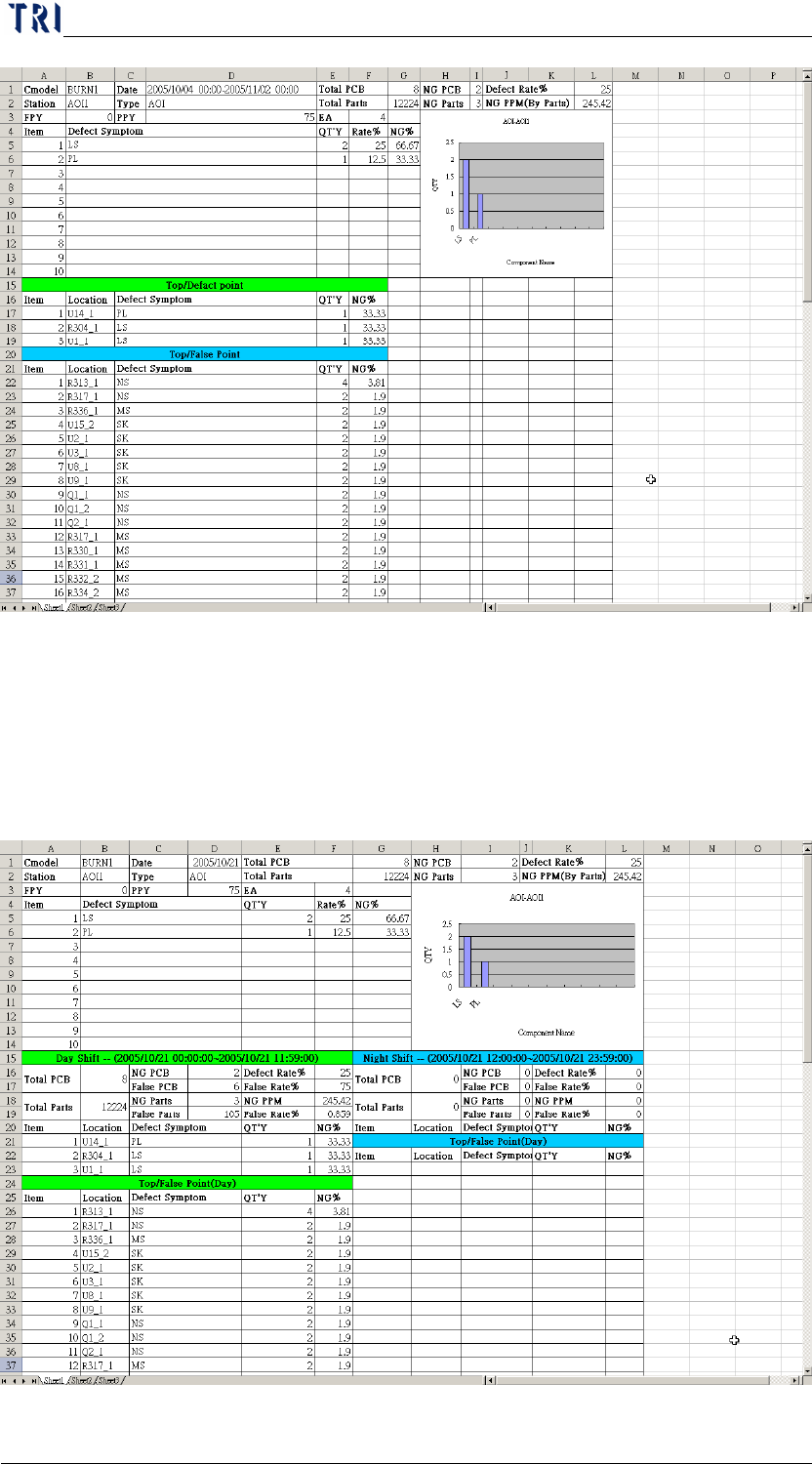

 Export Excel file for a specified day–Press the [Report] button that is

in [Report (By one day)] field, then there will be an Excel file created

under [C:\]. The content of the report is as the following. The data are

separated from Day Shift and Night Shift and the Shift is according to

the [Schedule Define] in Repair Main Program.

Chapter3 SPC User Manual

AOI Repair Station

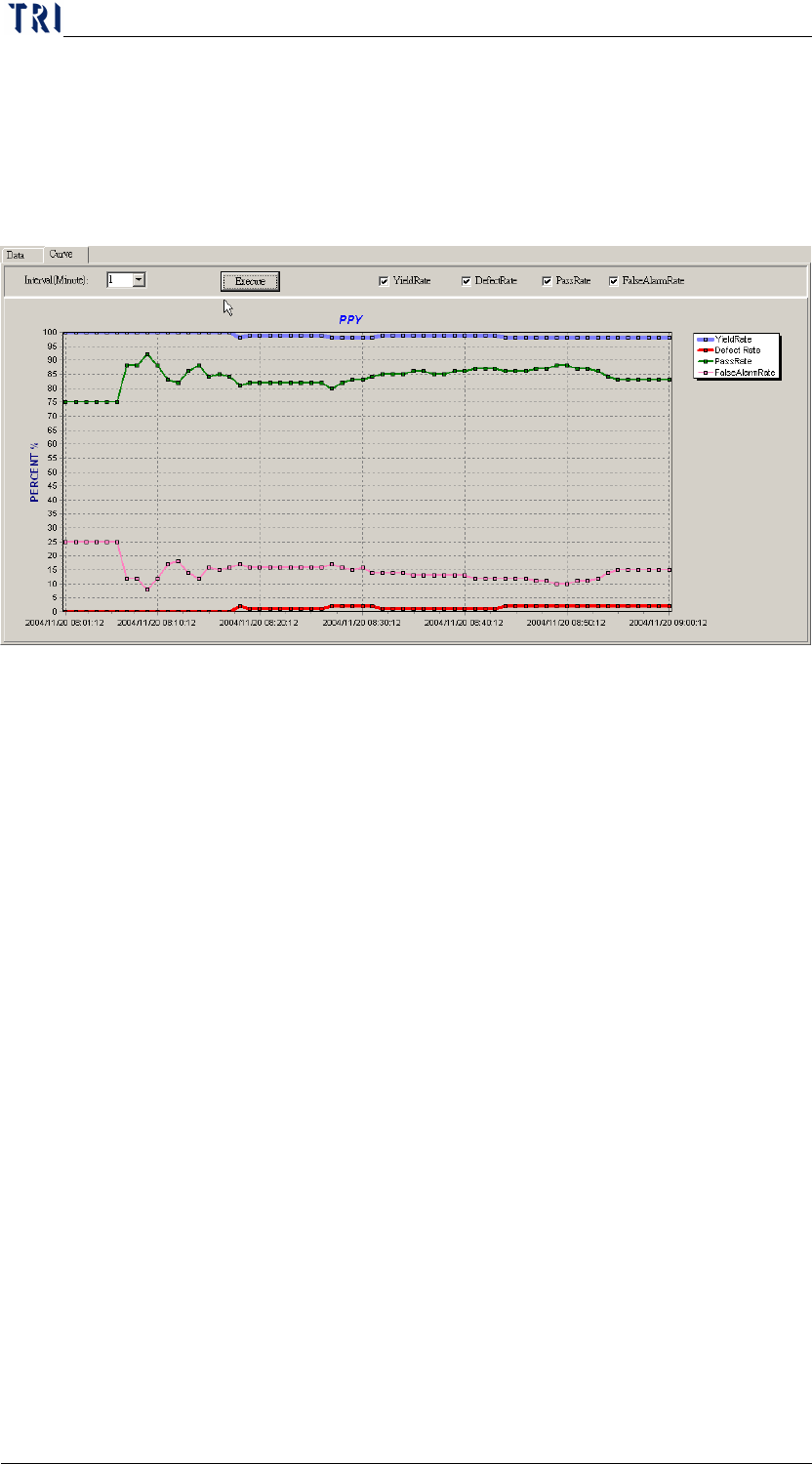

 Switch to [CURVE] (figure down below) will display the curve graph

of [PASS], [DEFECT], and [FALSE ALARM]:

Step1. [QUERY] information must to be set first

Step2. Set the [INTERVAL], unit is minute.

Step3. Press [EXECUTE]

 [DateCode] page, as the following picture.

Chapter3 SPC User Manual

AOI Repair Station

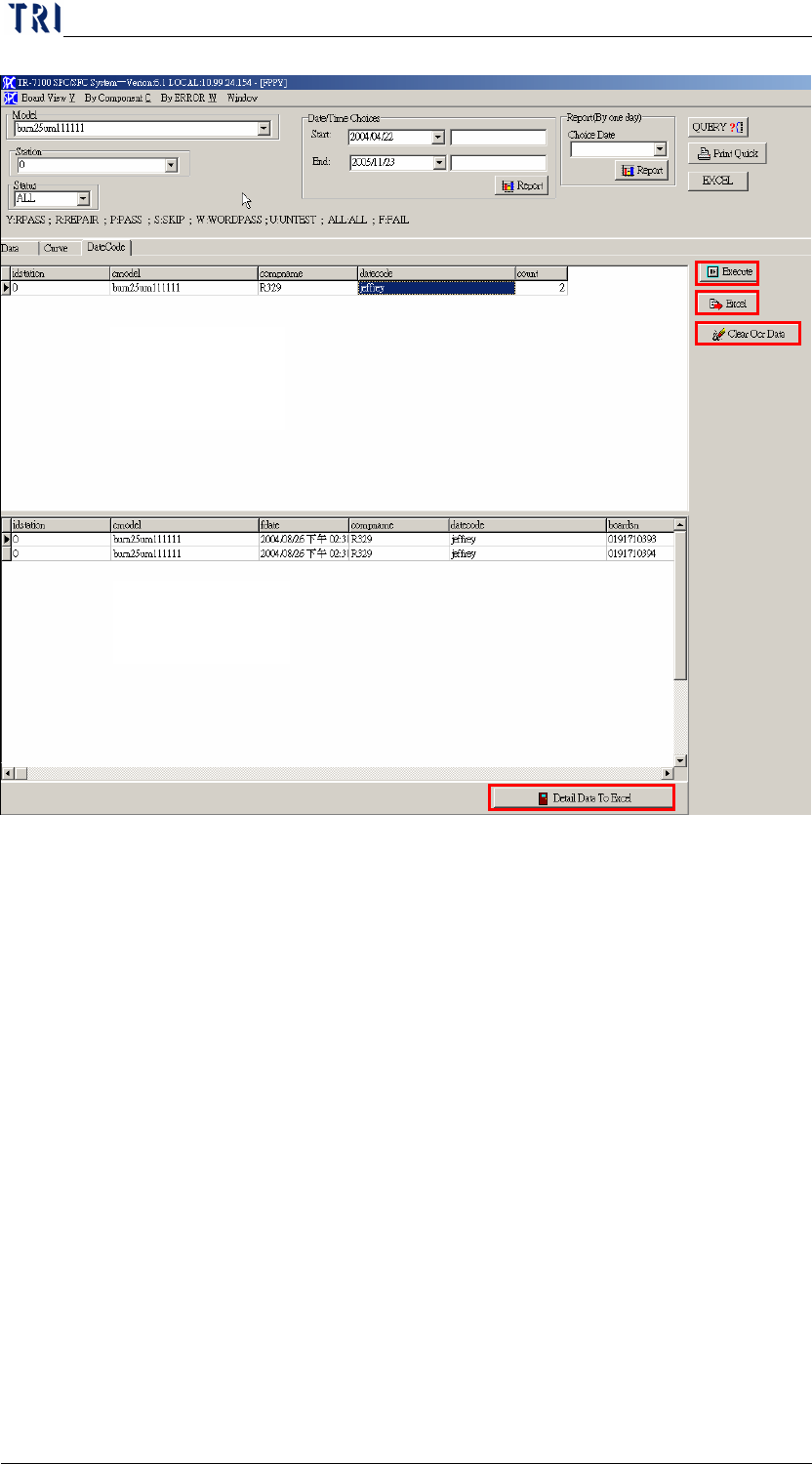

Step1. Select [MODEL], [STATION], [STATUS=ALL] and

[Date], then press [EXECUTE].

Step2. Double click on the record on Zone 1 and the details are

displayed on Zone 2.

Step3. Zone 1 is for a same kind of component with same

datecode. And [EXCEL] button is to output the data on

Zone1.

Step4. Zone 2 is the details of Zone 1. [DETAIL DATA TO

EXCEL] button is to output the data on Zone 2.

Step5. [CLEAR OCR DATA] is to clear OCR data.

4 COMPONENT SORT

 It will display the first 10 problem COMPONENT according to user’s

setting condition COMPONENT.

Step1. Select [MODEL], [STATION], [DATE TIME], [REPAIR

Zone 1

Zone 2
