User's Guide For SME Feeder Calibration Jig

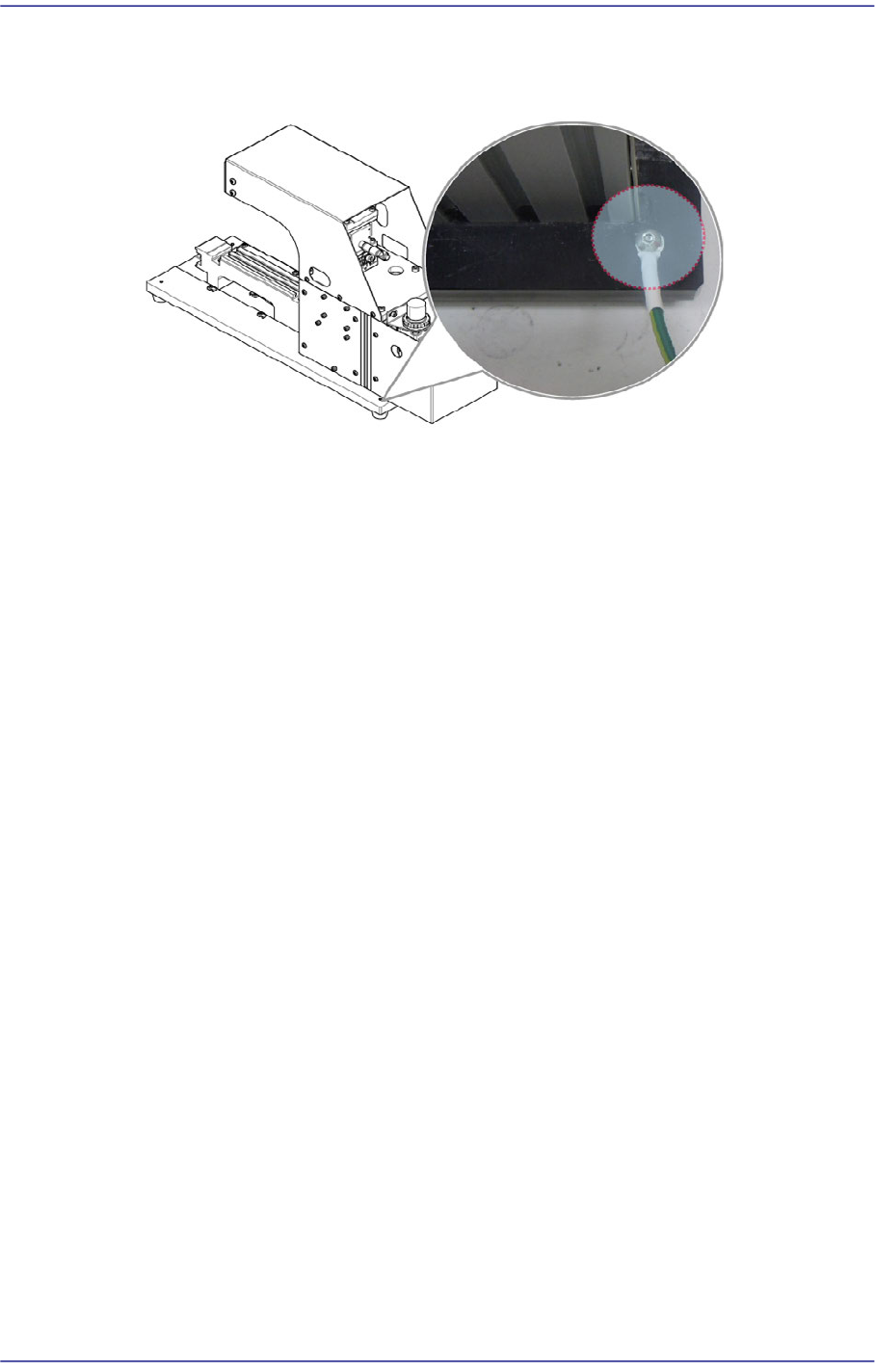

2. 拧开紧固在校准用治具底板角部的螺栓并且把螺栓插入接地环，然后重新把螺
栓紧固在校准用治具底板的角部完成接地。
8-1
Service Part List
第8章. Service Part List
8.1. Service Part List
8.1.1. Service Part List
NO. PART NO. PART NAME Q'TY REMARK
1 FC28-000168 RUBBER LEG 4
2 FC15-004764B PANEL EDGE 1
3 FC14-002137 USB2USB HOLDER 2
4 FC28-000180 KNOB 2
5 FC05-001195B BASE-C 1
6 J90991065A CE ROHS PLATE ASSY 1
7 AM03-021347B SME FEEDER BASE ASSY-C 1
8 FC15-004762B FEEDER BOARD COVER-C 1 Cover
9 FC15-004765B PANEL SIDE-C 1
10 FC29-007787B UPPER BASE SUPPORT-C 3
16
7
4
17
19
5
15 14 13
18
3
11
12
8
6
9
10
1 2
7
4 5
3
8
6
1 2
11
9
10
12
16 17
19
151413
18
8-2
User's Guide For SME Feeder Calibration Jig
11 FC15-004766B PANEL SMPS 1
12 AM03-021620B UPPER BASE COVER ASSY 1
13 EP12-001004 MIRROR BOX 1
14 EP13-001028 SME8 JIG COAXIAL LIGHT 1
15 EP14-001017 COAXIAL LENS-C 1
16 PT02-001033 CAMERA-C 1
17 FC09-007331B CAMERA BRACKET-C 1
18 AM03-001101 XYZ STAGE-C 1
19 FC05-001196B UPPER BASE-C 1
NO. PART NO. PART NAME Q'TY REMARK
20 AM03-020515A SMPS SWITCH CABLE ASSY-C 1
21 AM03-020517A FIDUCIAL LIGHT CABLE ASS'Y 1
22 AM03-020516A COAXIAL LIGHT CABLE ASS'Y 1
23 AM03-020451A FEEDER BASE BOARD 1SLOT 1 Board
24 AM03-021615B FEEDER IT_SMPS_CAN IF CABLE
ASSY
1
NO. PART NO. PART NAME Q'TY REMARK
101
107
110
111
113
114
20 21 22
102 103
104
115
23
104
105
116
103
25
26
27
109
28
100
105
112
30
31
24
29
108
20 21 22
23
25
26
27
28
24
29
30
31
106
107
108
110
111
113
114
102 103
104
105 109
112
101
100
36 34
32 33
32 33 34 36
35
35
37
37 37
115
116 117
117
