8-4 User's Guide For SME Feed er Calibration Jig 便 笺 200 号部件 是紧固 件。 紧固件只能以成套 (package) 购买。 该 成套 购买时所含紧固件是组装校准用治具和主供料器 1 台时需要的分 量。  成套 (pack a ge) 式物料的编号 ： AM03-022317A NO. P ART NO. P ART NAME Q'TY REMARK 200 …

100%1 / 122
8-3
Service Part List
便 笺 1~31号是紧固件以以外的材料，这些材料能以单件购买。
100~114号是紧固件。紧固件只能以成套(package)购买。该成套
购买时所含紧固件是组装校准用治具和主供料器1台时需要的分
量。
成套(package)式物料的编号：AM03-022317A
25 EP10-003281 5PIN2USB GENDER 1
26 EP10-003239 CAN PRO-C 1
27 AM03-020514A FEEDER CAN CABLE ASSY-C 1
28 EP06-001071 SMPS-C 1
29 AM03-020513B FEEDER SMPS CABLE ASSY-C 1
30 FC15-000883A FIDUCIAL DIFFUSER 1
31 AM03-012380A BOARD-FIDUCIAL-ILL 1
32 AM03-024827A FEEDER JIG MAIN BOARD 1
33 J90600366C IT_SLAVE_BOARD_ASSY 1
34 MC14-001095 NEXT-204UHP 1
35 EP02-001115 USB2USB FF GENDER 1
36 AM03-024768A SME FEEDER JIG ADAPTOR CABLE 1
37 AM03-024767A CLAMP_SW_SHORT CABLE ASS'Y 1
100 FC29-900605 HEX SUPPRORT 3 M3L10B5
101 FC29-900554 HEX SUPPRORT 11 M3L7B5
102 FC18-903189 TIE MOUNT 8
103 FC18-902827 FLAT HEAD SOCKET SCREW 12 M3L8
104 FC18-004889 TRUSS HEAD SCREW 16 M4L12
105 FC18-902806 BUTTON HEAD SOCKET SCREW 20 M3L6
106 FC18-902765 SOCKET HEAD CAP SCREW 0 M5L30
107 FC18-902761 SOCKET HEAD CAP SCREW 11 M5L20
108 FC18-902745 SOCKET HEAD CAP SCREW 2 M4L15
109 FC18-902748 SOCKET HEAD CAP SCREW 2 M4L20
110 FC18-902757 SOCKET HEAD CAP SCREW 1 M5L15
111 FC18-901902 BUTTON HEAD SOCKET SCREW 0 M3L8
112 FC18-901892 BUTTON HEAD CAP SCREW 2 M2.5X6
113 FC18-901877 SOCKET HEAD CAP SCREW 1 M5L50
114 FC18-901878 SOCKET HEAD CAP SCREW 2 M5L60
115 FC18-004888 TRUSS HEAD SCREW 11 M4L8
116 FC18-902741 SOCKET HEAD CAP SCREW 4 M4L10
117 FC18-900895 HEX NUT 14 M3
NO. PART NO. PART NAME Q'TY REMARK
8-4
User's Guide For SME Feeder Calibration Jig
便 笺 200号部件是紧固件。紧固件只能以成套(package)购买。该成套
购买时所含紧固件是组装校准用治具和主供料器1台时需要的分
量。
成套(package)式物料的编号：AM03-022317A
NO. PART NO. PART NAME Q'TY REMARK
200 GD03-000023A INSTALL GUIDE 1
201 FC18-901932 FLAT HEAD CAP SCREW 3 M3X12
202 AM03-012040A SME MASTER TOOGLE ASSY 1
203 J70653935A T LINK1 HINGE 2
204 J7066040A TOGGLE SPRING 1
205 J70661204A LOCKER-SPG-SHAFT 1

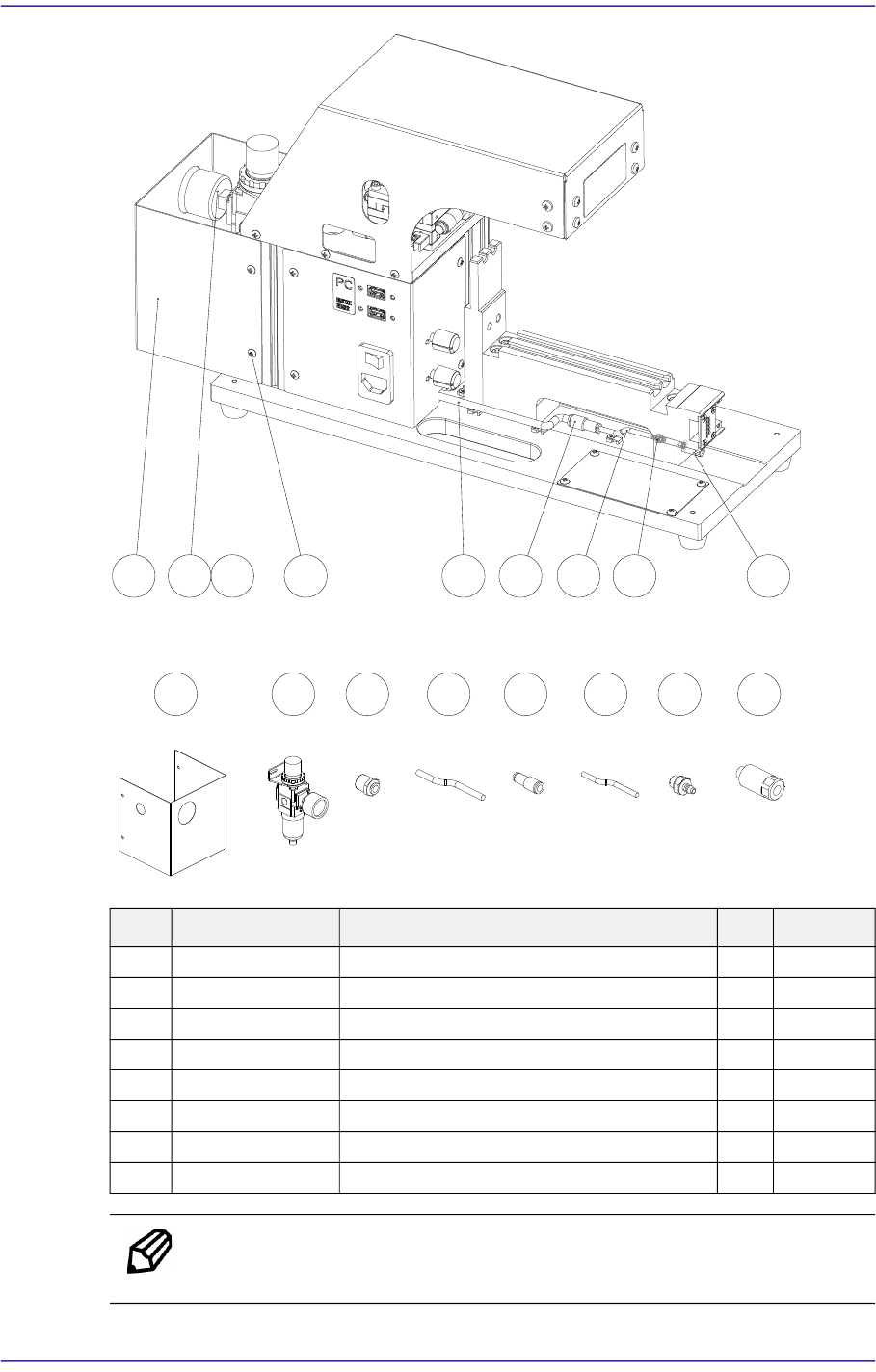

8-5
Service Part List
便 笺 300号部件是空压进料器的矫正部件。
NO. PART NO. PART NAME Q'TY REMARK
300 FC15-005702A PANEL REGULATOR 1
301 HP09-001061 SM JIG REGULATOR 1
302 HP06-001144 FITTING 2
303 HP13-000079 TUBE 1
304 HP06-000348 FITTING 1
305 HP13-000027 TUBE 1
306 HP06-900252 BARB FITTING 1
307 FC14-002115 COUPLER_FEEDER BASE 1
300 301 302 303 304 305 306 307
300 301 302 104 303 304 305 306 307
