P-0186-003 - 第152页
MODEL TCM-X1 10 0306-001 150 XY テーブル配管、配線 XY T ABLE PIPING,WIRING Fig. JE-6 ケーブル配線 Cable Wiring See Fig.JD-1 Key No.1 See Fig.JD-1 Key No.33 See Fig.JE-3 Key No.209 See Fig.JB-4 Key No.301 See Fig.JE-3 Key No.209 See Fig…
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110
0306-001
149
JE-5
404 630 096 8262 COVER 1 809JE-010-404
405 630 096 8279 COVER 1 809JE-010-405
407 630 096 8286 COVER 1 809JE-010-407
408 630 000 7527 BOLT,HEX-SCT 2 809JE-010-408
409 411 141 2806 WASHER SPR 3 2 809JE-010-409
410 411 141 3902 WASHER V 3X7X0.5 2 809JE-010-410
413 630 047 4596 BOLT,HEX-SCT(BUTTON HEAD) 4 809JE-010-413
MODEL TCM-X110
0306-001
150
XY
テーブル配管、配線
XY TABLE PIPING,WIRING

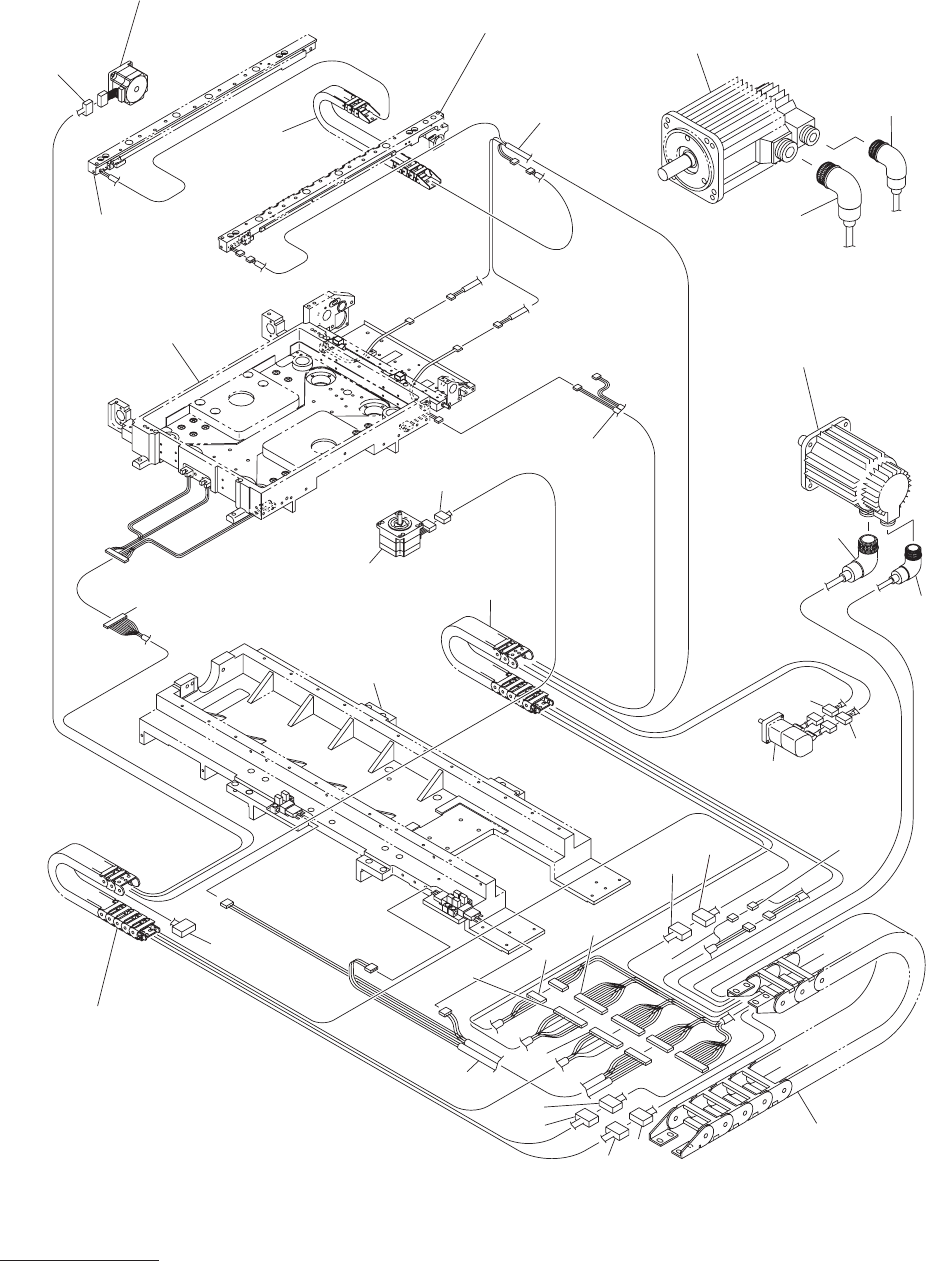

Fig. JE-6
ケーブル配線
Cable Wiring
See Fig.JD-1
Key No.1
See Fig.JD-1
Key No.33
See Fig.JE-3
Key No.209
See Fig.JB-4
Key No.301
See Fig.JE-3
Key No.209
See Fig.JB-4
Key No.316
See Fig.JC-5
Key No.412
See Fig.JE-2
Key No.103
See Fig.JD-6
Key No.504
MPM14(CHW)
See Fig.JC-1
Key No.4
552
563
568
571
555
554
553
565
See Fig.JE-3
Key No.20
6
See Fig.JB-1
Key No.1
6
MSVM6(X)
MSVM7(Y)
MPM19(BPC)
MSVM8(XYTR)
574
575
565
564
560
563
562
559
553
569
572
See Fig.JD-5
Key No.414
551
554
555
570
569
560
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110
0306-001
151
JE-6
551 630 110 3778 ASSY,CORD (X100J10) 1 XNC184,185,188,182,183-
809JE-010-551
552 630 091 3576 ASSY,CORD X200J11 1 XNC183- 809JE-010-552
553 630 091 3583 ASSY,CORD X200J12 1 XNC182- 809JE-010-553
554 630 110 3785 ASSY,CORD (X100J14) 1 XNC184- 809JE-010-554
555 630 110 3792 ASSY,CORD (X100J19) 1 XNC188- 809JE-010-555
559 630 091 3682 ASSY,CORD X200J20-1 1 XNC181- 809JE-010-559
560 630 110 3808 ASSY,CORD (X100J20-3) 1 XNC181-MPM14 809JE-010-560
562 630 091 3712 ASSY,CORD X200J20-4 1 XNC180- 809JE-010-562
563 630 091 3729 ASSY,CORD X200J20-5 1 XNC180-MPM18 809JE-010-563
564 630 091 3736 ASSY,CORD X200J20-6 1 XNC186- 809JE-010-564
565 630 110 3808 ASSY,CORD (X100J20-3) 1 XNC186-MPM19 809JE-010-565
568 630 091 3798 ASSY,CORD X200J23 1 XCN121- 809JE-010-568
569 630 091 3811 ASSY,CORD X200J25 1 XNC187-XCN163 809JE-010-569
570 630 091 3804 ASSY,CORD X200J24 1 XNC187- 809JE-010-570
571 630 086 8197 CORD 1 XCN123-XCN122 809JE-010-571
572 630 092 4381 ASSY,CORD (X200PG XYTR) 1 XCN165-XCN164 809JE-010-572
574 630 092 4152 ASSY,CORD (X200MOT X) 1 809JE-010-574
575 630 086 8203 CORD 1 -XCN126 809JE-010-575
