MODEL TCM-X1 10 0507-002 200 カバー部 COVER SECTION Fig. MA-1 本体カバー Body Cover 23 1 1 1 1 18 1 1 1 1 10 1 1 1 1 30 1 1 1 1 32 33 7 1 1 1 1 9 25 1 1 26 17 16 1 1 15 38 43 42 41 39 40 45 1 1 1 1 1 1 21 20 19 1 1 17 1 1 31 24 1…
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110
0306-001
199
LB-2
106 630 116 9606 PIPE FITTINGS 2 809LB-010-106
107 630 118 4074 TUBE 1 809LB-010-107
109 630 009 3544 PIPE FITTINGS(BAND) 1 809LB-010-109
110 411 141 4107 WASHER V 5X10X1 3 809LB-010-110
111 411 141 6705 WASHER SPR 5 3 809LB-010-111
112 630 000 7763 BOLT,HEX-SCT 3 809LB-010-112
121 630 110 5260 BRACKET 1 809LB-010-121
122 630 110 5277 BRACKET 1 809LB-010-122
123 411 141 4107 WASHER V 5X10X1 4 809LB-010-123
124 411 141 6705 WASHER SPR 5 4 809LB-010-124
125 630 000 7763 BOLT,HEX-SCT 4 809LB-010-125
126 630 001 0220 WASHER 4 809LB-010-126
127 411 141 6705 WASHER SPR 5 4 809LB-010-127
128 630 000 7770 BOLT,HEX-SCT 4 809LB-010-128
130 630 110 5291 COVER 1 809LB-010-130
131 411 140 8007 SCR TRS 5X6 8 809LB-010-131
132 630 087 1203 ACCESSORY,WIRING 1 809LB-010-132
MODEL TCM-X110
0507-002
200

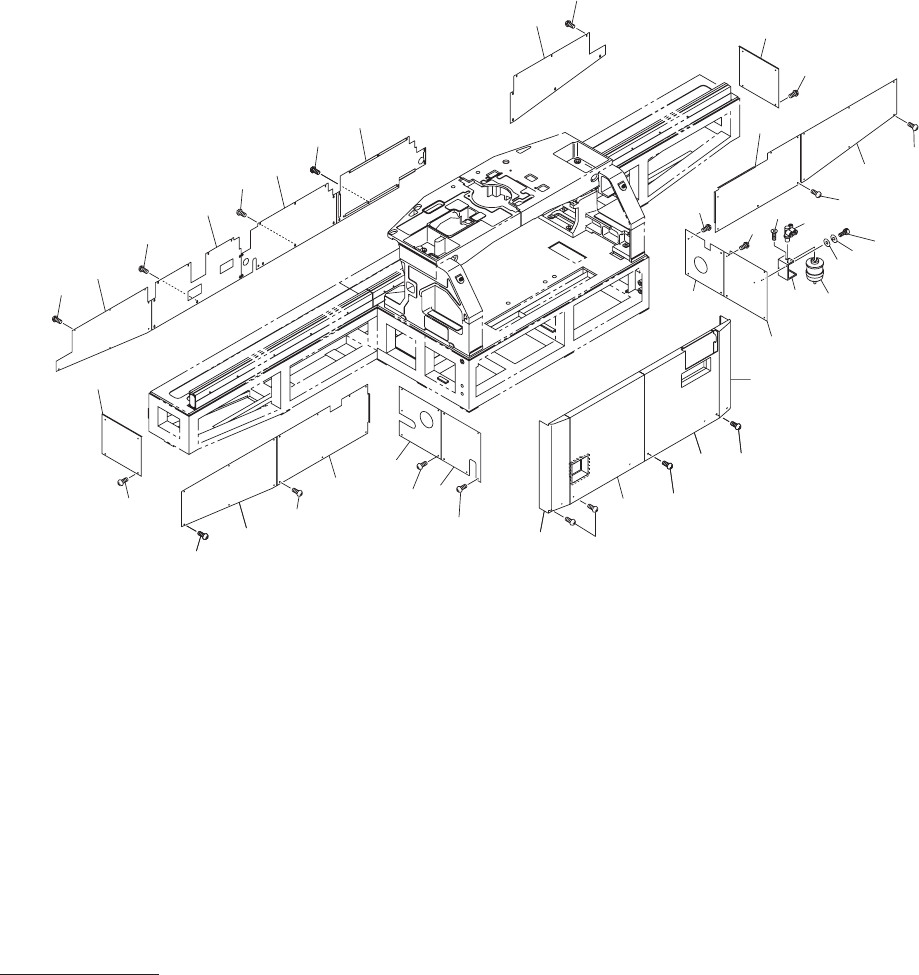

カバー部
COVER SECTION
Fig. MA-1
本体カバー
Body Cover
23
11
11
18
11
11
10
11
11
30
11
11
32
33
7
11
11
9
25
11
26
17
16
11
15
38
43
42
41
39
40
45
11
11
11
21
20
19
11
17
11
31
24
11
11
24
39-01
.
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110
0507-002
201
MA-1
7 630 103 8193 COVER(RFR) 1 809MA-010-007
9 630 119 9412 COVER(RFR) 1 809MA-010-009
10 630 120 3706 COVER(FSL) 1 809MA-010-010
11 411 113 9000 SCR TRS 5X8 101 809MA-010-011
15 630 120 3713 COVER(FSL) 1 809MA-010-015
16 630 102 9078 COVER(RFL) 1 809MA-010-016
17 630 120 0279 COVER(RFL) 1 809MA-010-017
18 630 097 2924 COVER(RBL) 1 809MA-010-018
19 630 120 4741 COVER(RBL) 1 809MA-010-019
20 630 117 0855 COVER(RBC) 1 809MA-010-020
21 630 122 2189 COVER(RBC) 1 809MA-010-021
23 630 119 5216 COVER(RBR) 1 809MA-010-023
24 630 120 0705 COVER(RS) 2 809MA-010-024
25 630 123 1990 COVER(FSR) 1 809MA-010-025
26 630 120 3720 COVER(FSR) 1 809MA-010-026
30 630 095 1127 COVER 1 809MA-010-030
31 630 097 2139 COVER(ML) 1 809MA-010-031
32 630 098 4170 COVER(MR) 1 809MA-010-032
33 630 097 7790 COVER 1 809MA-010-033
38 630 122 4671 PIPE FITTINGS 1 809MA-010-038
39 630 123 2225 AIR CLEAN EQPT 1 809MA-010-039
39 -01 630 130 8203 AIR CLEAN EQPT 1 AMC-EL3
40 630 123 2164 BRACKET 1 809MA-010-040
41 411 1414107 WASHER V 5X10X1 2 809MA-010-041
42 411 141 6705 WASHER SPR 5 2 809MA-010-042
43 630 000 7756 BOLT,HEX-SCT 2 809MA-010-043
45 411 034 7208 SCR FLT 3X8 3 809MA-010-045
