P-0186-003 - 第221页
Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE MODEL TCM-X1 10 0306-001 219 MA-10 901 630 120 3812 COVER(P ANEL) 1 809MA-010-901 902 630 1 10 6663 ASSY ,UNIT ,DISPLA Y 1 809MA-010-902 902 -01 630 1 10 6618 UNIT ,DISPLA…
MODEL TCM-X110
0306-001
218
カバー部
COVER SECTION
Fig. MA-10

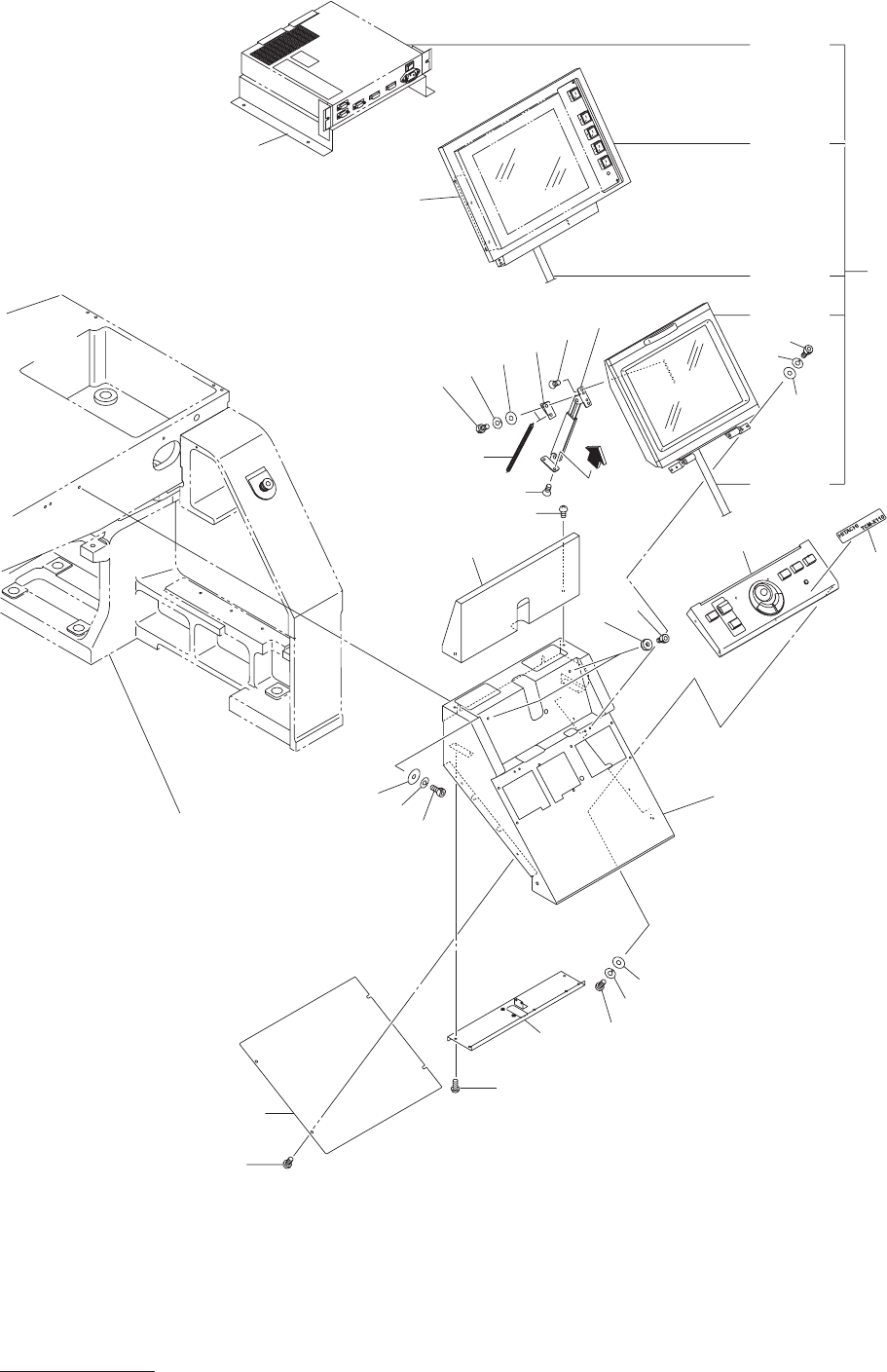

前面操作パネル
Front Operation Panel
See Fig.L-1
Key No.12
902
904
928
914
913
908
937
907
912
909
923
922
A
905
927
926
925
921
901
920
919
903
924
911
936
912
918
911
906
924
902-01
902-02
902-04
902-05
902-03
See Fig.MB-6
See Fig.RL-6
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110
0306-001
219
MA-10
901 630 120 3812 COVER(PANEL) 1 809MA-010-901
902 630 110 6663 ASSY,UNIT,DISPLAY 1 809MA-010-902
902 -01 630 110 6618 UNIT,DISPLAY(FRONT) 1
902 -02 630 110 6632 CORD(3M) 1
902 -03 630 110 6656 UNIT,DISPLAY(REAR) 1
902 -04 630 110 6649 CORD(5M) 1
902 -05 630 110 6625 UNIT,DRIVER(CONTROLLER) 1
903 630 120 3829 COVER 1 809MA-010-903
904 630 109 6346 SWITCH,KEYBOARD(JOYSTICK) 1 SPB1,LED1,SPB10(LED10),SPB11,
LED11,SPB12(LED12),SPB13(LED13),
SW3,#LE-0100-03 809MA-010-904
905 630 120 3836 COVER 1 809MA-010-905
906 630 120 3843 STAY 1 809MA-010-906
907 630 109 6919 BRACKET 1 809MA-010-907
908 630 110 1767 MECH PARTS(STAY) 1 809MA-010-908
909 630 110 6120 SPRING,TENSION 2 809MA-010-909
911 411 141 2905 WASHER SPR 4 6 809MA-010-911
912 411 141 4008 WASHER V 4X9X0.8 6 809MA-010-912
913 630 106 5670 MECH PARTS(URETHANS) 2 809MA-010-913
914 630 000 7725 BOLT,HEX-SCT 2 809MA-010-914
918 630 000 7626 BOLT,HEX-SCT 4 809MA-010-918
919 411 042 0703 SCR PAN 3X8 7 809MA-010-919
920 411 086 4408 WASHER SPR 3 7 809MA-010-920
921 411 119 1909 WASHER V 3X7X0.5 7 809MA-010-921
922 411 140 8007 SCR TRS 5X6 2 809MA-010-922
923 411 140 7208 SCR FLT 4X6 2 809MA-010-923
924 411 051 1708 SCR TRS 4X6 8 809MA-010-924
925 630 000 7879 BOLT,HEX-SCT 2 809MA-010-925
926 411 141 3001 WASHER SPR 6 2 809MA-010-926
927 630 001 0237 WASHER 2 809MA-010-927
928 630 120 7957 NAME PLATE,PARTS 1 809MA-010-928
936 630 000 7633 BOLT,HEX-SCT 2 809MA-010-936
937 411 035 2707 SCR FLT 4X8 2 809MA-010-937
MODEL TCM-X110
0306-001
220

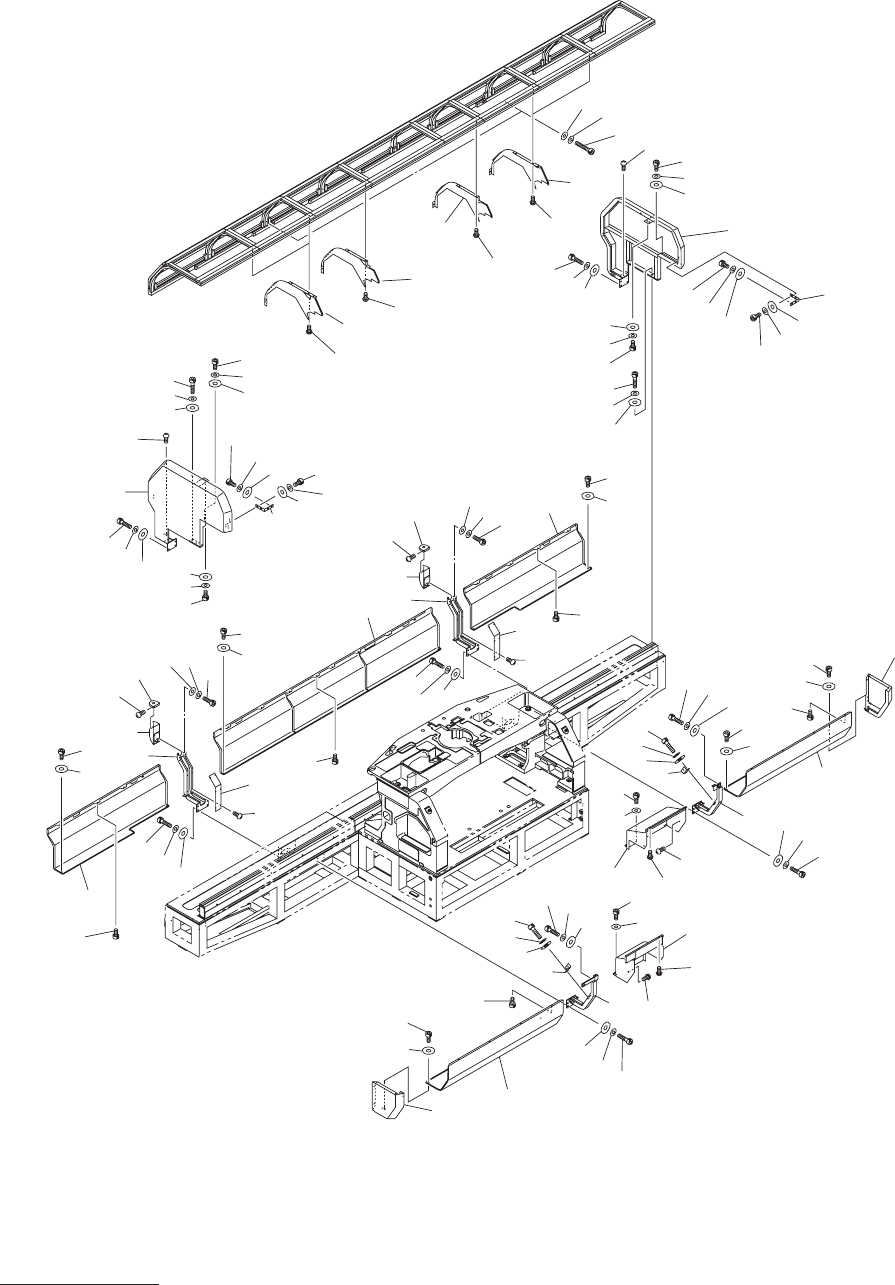

フィーダキャリッジカバー部
