P-0186-003 - 第239页
Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE MODEL TCM-X1 10 0306-001 237 MC-4 301 630 103 4744 SHOCK ABSORBER 16 302 630 098 0837 MECH P ARTS(COLLAR) 16 303 630 098 0844 MECH P ARTS(BOL T) 16 304 630 098 0851 MECH P…
MODEL TCM-X110
0306-001
236

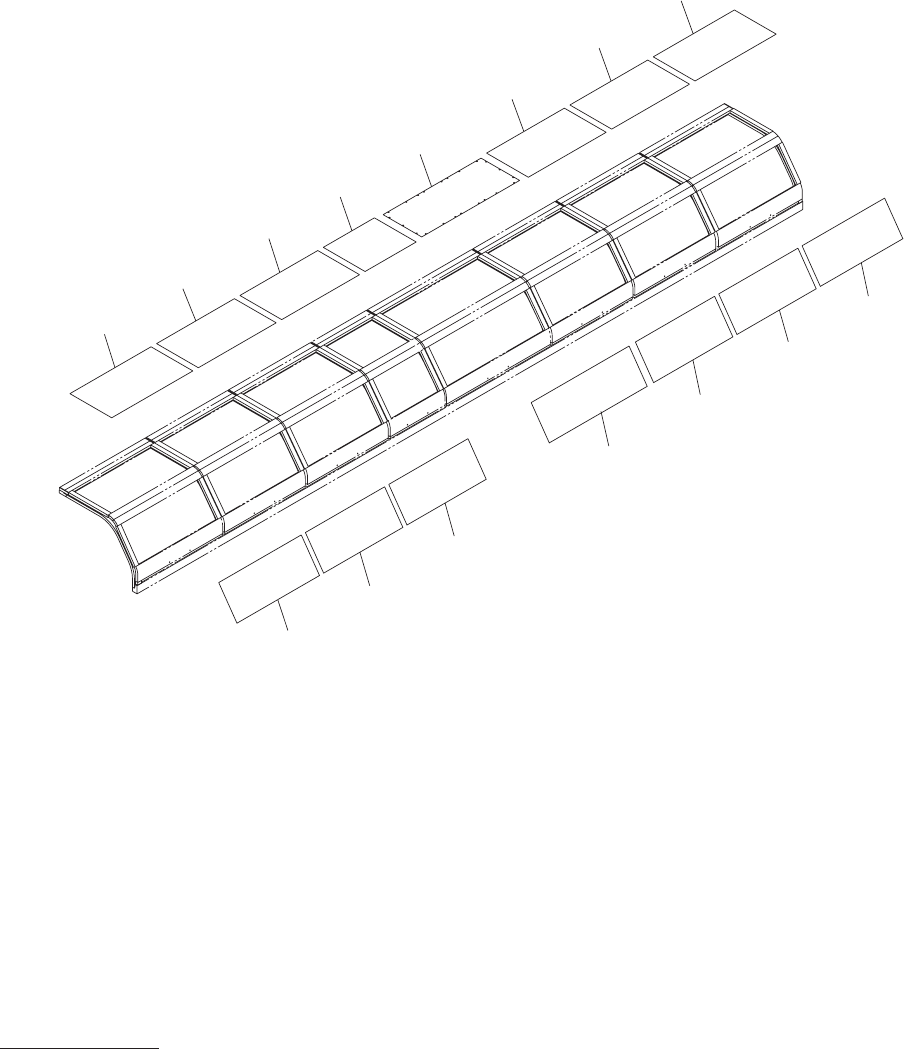

フィーダキャリッジカバー
Feeder Carriage Cover
Fig. MC-4
ガスダンパー
Gas Spring
A
B
C
B
C
B
E
C
B
C
B
C
F
DETAIL "C"
DETAIL "B"
DETAIL "A"
DETAIL "F"
G
D
326
394
304
324
392
302
303
301
305
381
396
399
381
302
303
301
305
304
330
392
381
332
394
396
399
381
DETAIL "E"
DETAIL "G"
303
302
305
301
304
323
392
381
381
399
396
394
325
302
303
304
330
392
396
381
381
394
399
301
305
326
329
325
305
302
301
304
303
396
394
381
392
399
381
329
303
394
396
399
301
304
392
302
381
381
335
329
303
394
394
396
396
399
399
301
304
392
302
381
See Fig.MC-2
Key No.104
381
381
331
DETAIL "D"
381
336
302
393
366
339
390
303
392
304
330
301
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110
0306-001
237
MC-4
301 630 103 4744 SHOCK ABSORBER 16
302 630 098 0837 MECH PARTS(COLLAR) 16
303 630 098 0844 MECH PARTS(BOLT) 16
304 630 098 0851 MECH PARTS(BOLT) 16
305 630 098 0868 MECH PARTS(ST0PPER) 16
323 630 119 1898 MECH PARTS(BRACKET) 1
324 630 119 1904 MECH PARTS(BRACKET) 1
325 630 119 1829 MECH PARTS(BRACKET) 6
326 630 119 1836 MECH PARTS(BRACKET) 6
329 630 106 8534 MECH PARTS(BRACKET) 7
330 630 106 8541 MECH PARTS(BRACKET) 7
331 630 119 1843 MECH PARTS(BRACKET) 1
332 630 119 1850 MECH PARTS(BRACKET) 1
335 630 119 1867 MECH PARTS(BRACKET) 1
336 630 119 1881 MECH PARTS(BRACKET) 1
339 630 106 8572 MECH PARTS(RAIL) 1
366 630 098 1926 MECH PARTS(CAP) 1
381 630 103 4409 NUT 32
390 630 000 7800 BOLT,HEX-SCT 1
392 630 103 4690 MACHINE SCREW 32
393 630 065 8590 MACHINE SCREW 1
394 630 103 4393 MACHINE SCREW 16
396 630 103 4386 BOLT,HEX-SCT(BUTTON HEAD) 16
399 411 141 4404 WASHER V 8X17X1.6 16
MODEL TCM-X110
0306-001
238
フィーダキャリッジカバー
Feeder Carriage Cover
Fig. MC-5
作業エリア安全扉パネル
Work Area Safety Door
Panel
401
402
402
403
404
402
402
401
405
406
406
407
406
406
405
