MODEL TPM-200R 0207-001 170 R コンベア部（奥基準） R CONVEYOR SECTION （ Rear Reference ） Fig. HR-4 基板検出部、基板ストッパ P .C.B. Detector , P .C.B. Stopper Fig.HR-4 TPM-200R 365 305 366 368 304 363 362 361 365 301 366 367 380 366 365 365 3…
MODEL TPM-200R
0207-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
169
HR-3
201 630 091 2432 MOTOR,STEPPING 1 MPM039,B2083-D21ASM
782HR-110-201
202 630 115 5456 PULLEY,TIMING 1 782HR-110-202
203 630 115 5470 PULLEY,TIMING 1 782HR-110-203
204 630 109 0931 BELT,TIMING 1 782HR-110-204
205 630 107 8137 PLATE 1 782HR-110-205
261 411 141 4008 WASHER V 4X9X0.8 2 782HR-110-261
262 411 141 2905 WASHER SPR 4 2 782HR-110-262
263 630 000 7657 BOLT,HEX-SCT 2 782HR-110-263
264 630 000 8944 SET SCREW 2 782HR-110-264
265 630 000 8951 SET SCREW 2 782HR-110-265
MODEL TPM-200R
0207-001
170
R コンベア部（奥基準）
R CONVEYOR SECTION（Rear Reference）

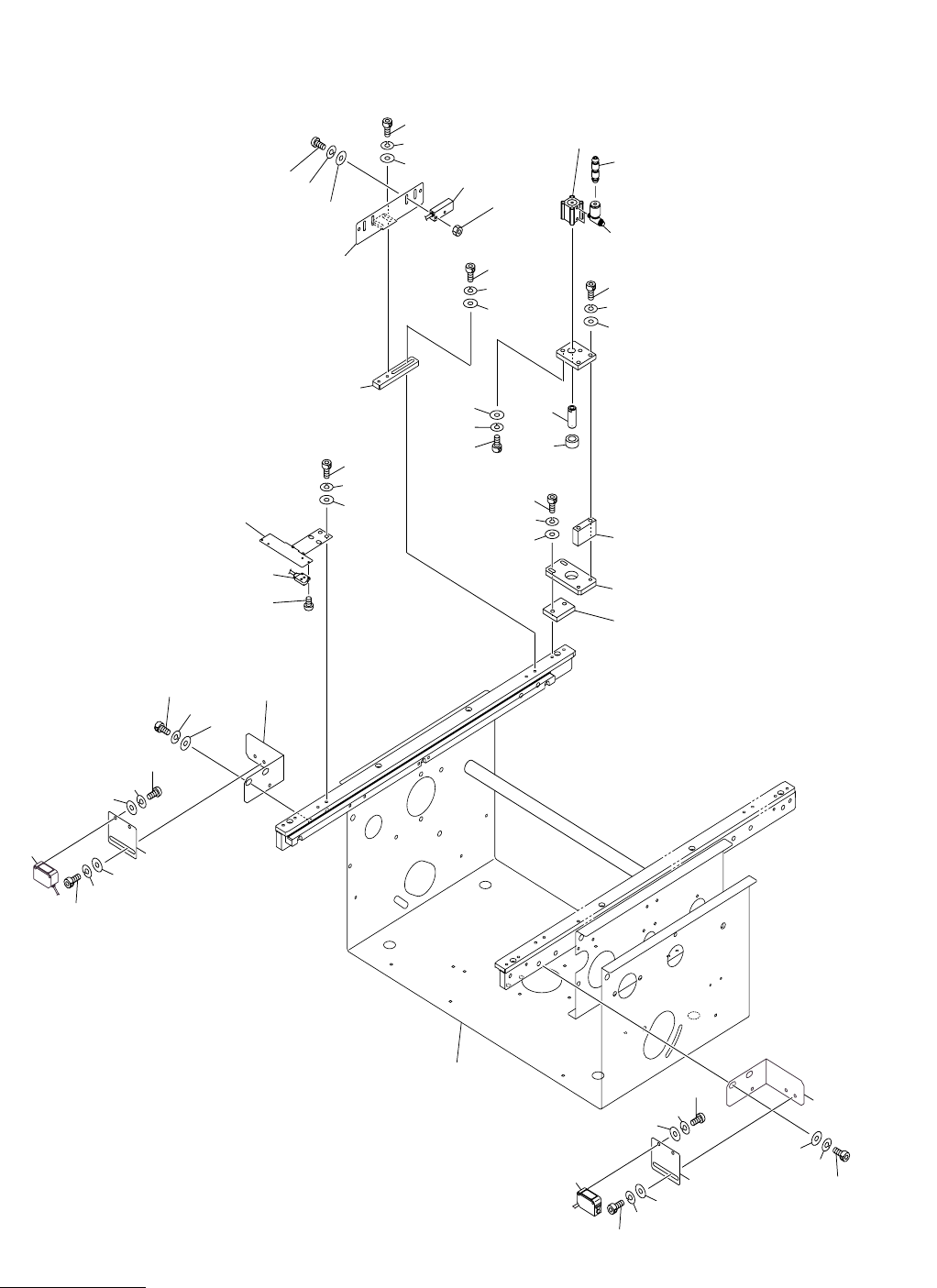

Fig. HR-4
基板検出部、基板ストッパ
P.C.B. Detector , P.C.B. Stopper
Fig.HR-4
TPM-200R
365
305
366
368
304
363
362
361
365
301
366
367
380
366
365
365
366
379
315
312
364
318
310
See Fig HR-1
Key No.19
365
366
367
316
373
374
375
317
363
362
361
365
366
378
377
303
308
311
365
366
380
302
314
313
373
365
366
367
363
362
361
375
374
316
306
302
319
MODEL TPM-200R
0207-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
171
HR-4
301 630 086 4946 SENSOR,PELEC 1 BPH044 782HR-110-301
302 630 108 8020 SENSOR,PELEC 2 BPH046,047 782HR-110-302
303 630 071 7716 SENSOR,PELEC 1 BPH045 782HR-110-303
304 630 107 7970 PLATE 1 782HR-110-304
305 630 115 9669 BRACKET 1 782HR-110-305
306 630 112 4438 BRACKET 1 782HR-110-306
308 630 107 8212 BRACKET 1 782HR-110-308
309 630 112 4476 PLATE 1 782HR-110-309
310 630 108 9324 PLATE 1 782HR-110-310
311 630 108 9317 PLATE 1 782HR-110-311
312 630 109 0528 SHAFT 1 782HR-110-312
313 630 110 5376 CYLINDER 1 782HR-110-313
314 630 098 7744 AIR LINE EQPT 2 782HR-110-314
315 630 109 1105 BUSH,BEARING 1 782HR-110-315
316 630 112 4452 PLATE 2 782HR-110-316
317 630 112 4445 BRACKET 1 782HR-110-317
318 630 112 4483 PLATE 1 782HR-110-318
319 630 076 8916 PIPE FITTINGS 2 782HR-110-319
361 411 119 1909 WASHER V 3X7X0.5 5 782HR-110-361
362 411 086 4408 WASHER SPR 3 5 782HR-110-362
363 411 040 6202 SCR PAN 3X10 5 782HR-110-363
364 411 054 6809 NUT HEX 3 1 782HR-110-364
365 411 141 4008 WASHER V 4X9X0.8 16 782HR-110-365
366 411 141 2905 WASHER SPR 4 16 782HR-110-366
367 630 000 7619 BOLT,HEX-SCT 6 782HR-110-367
368 630 000 7633 BOLT,HEX-SCT 2 782HR-110-368
373 411 141 4305 WASHER V 6X12.5X1.6 4 782HR-110-373
374 411 141 3001 WASHER SPR 6 4 782HR-110-374
375 630 000 7879 BOLT,HEX-SCT 4 782HR-110-375
377 411 125 5403 SCR PAN 2X4 2 782HR-110-377
378 630 000 7626 BOLT,HEX-SCT 2 782HR-110-378
379 630 000 7664 BOLT,HEX-SCT 2 782HR-110-379
380 630 000 7657 BOLT,HEX-SCT 4 782HR-110-380
