MODEL TPM-200F/R 0207-001 Key No . P AR T No. P AR T NAME Q’ty REMARKS NOTE 215 K-3 20 1 630 1 10 9794 PIPE FITTINGS 2 782K--1 10-201 20 2 630 003 7791 PIPE FITTINGS 2 782K--1 10-202 20 3 630 003 7814 PIPE FITTINGS 1 782…
MODEL TPM-200F/R
0207-001
214
メカ廻り
MECHANICAL DISTRIBUTION SECTION

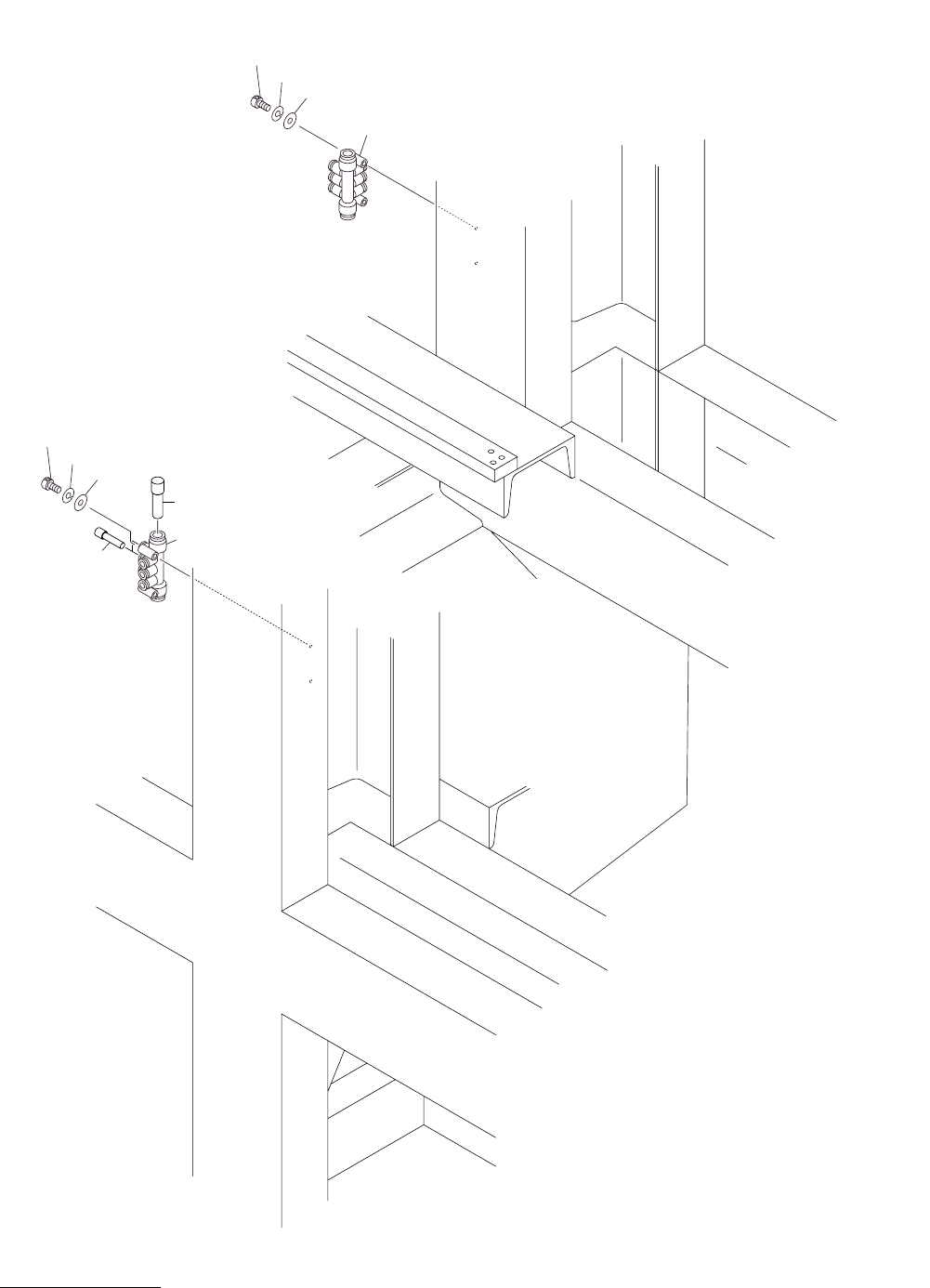

Fig. K-3 エア配管２ Air Piping-2
263
262
261
201
201
See Fig.K-1
Key No.1
263
262
261
202
Fig.K-3
TPM-200F/R
203
MODEL TPM-200F/R
0207-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
215
K-3
201 630 110 9794 PIPE FITTINGS 2 782K--110-201
202 630 003 7791 PIPE FITTINGS 2 782K--110-202
203 630 003 7814 PIPE FITTINGS 1 782K--110-203
261 411 141 4008 WASHER V 4X9X0.8 4 782K--110-261
262 411 141 2905 WASHER SPR 4 4 782K--110-262
263 630 000 7671 BOLT,HEX-SCT 4 782K--110-263
MODEL TPM-200F/R
0207-001
216
メカ廻り
MECHANICAL DISTRIBUTION SECTION

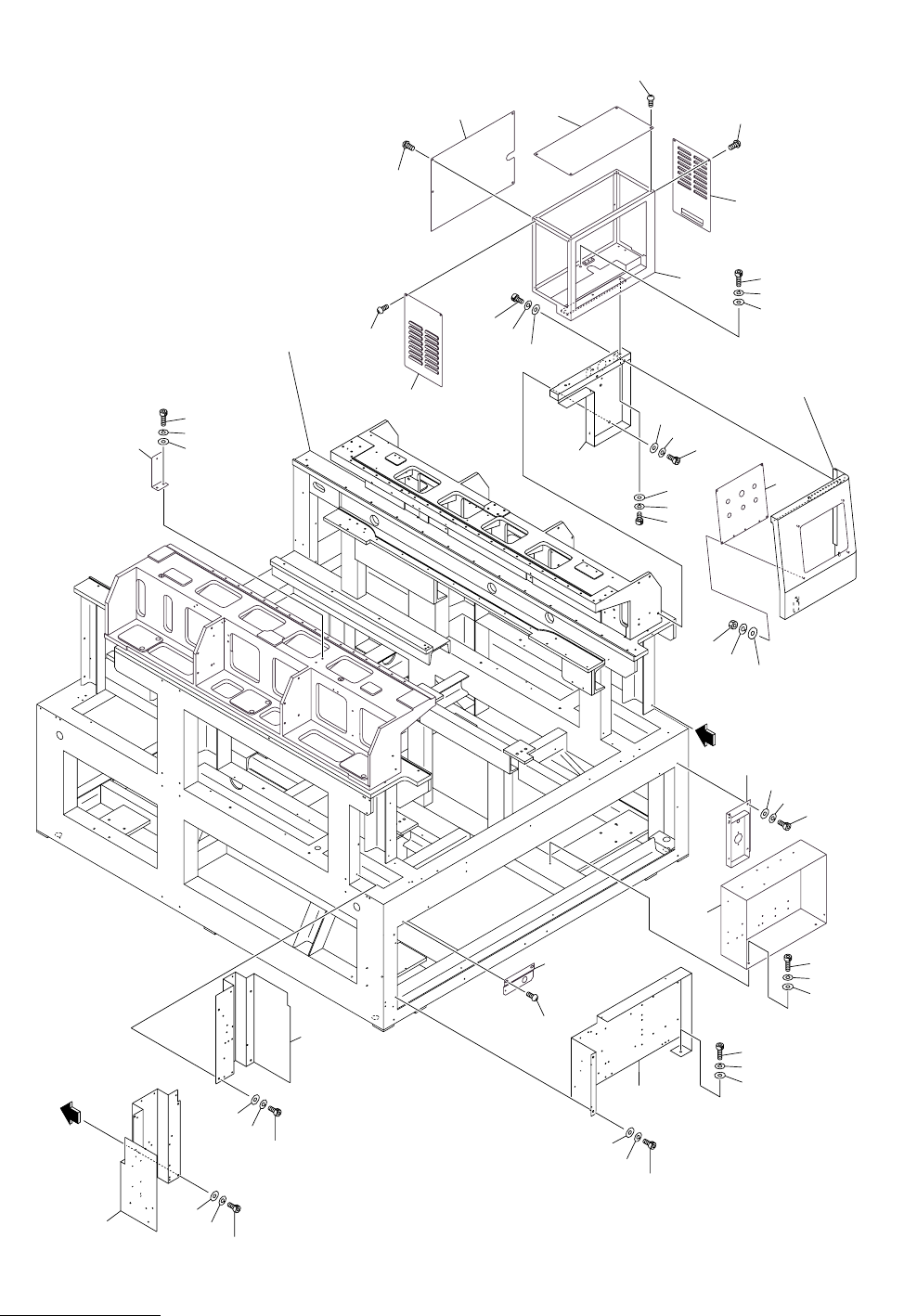

Fig. K-4 電装パネル１ Electrical Panel-1
308
303
382
383
384
361
362
369
366
367
368
See Fig.R-3
Key No.206
See Fig.K-1
Key No.1
379
362
361
302
381
381
377
313
306
314
312
381
309
305
Fig.K-4
TPM-200F/R
366
367
368
379
362
361
304
307
310
380
375
374
315
381
382
383
384
361
362
369
382
383
384
361
362
369
361
362
369
311
A
