M1plus_MaintenancePartsList.pdf - 第10页
No. Part No. Part Name Qty Remarks Drawing Name Drawing No. 1 LC0-M22K6-00X FAN ASSY. 1 2 LC0-M22M0-00X MOTOR ASSY. 1 3 LG0-M71H1-10X BOARD,HIO7-1 1 4 LG0-M22H0-00X PHOTO SENSOR 3 X-Y ORG.,OR. X-AXIS ASSY LC0-M2200-000 1…
No. Part No. Part Name Qty Remarks Drawing Name Drawing No.
1
LC1-M13H4-00X SAFETY SW ASSY. 2 M1plus COVER ASSY 4/4 LC0-M1300-000 4/4
2
K93-M1388-00X MG.CATCH 4 No Switch
3
KL3-M1348-10X GAS SPRING 4
M1plus COVER ASSY 3/4 LC0-M1300-000 3/4
1
1
3
2
3
2

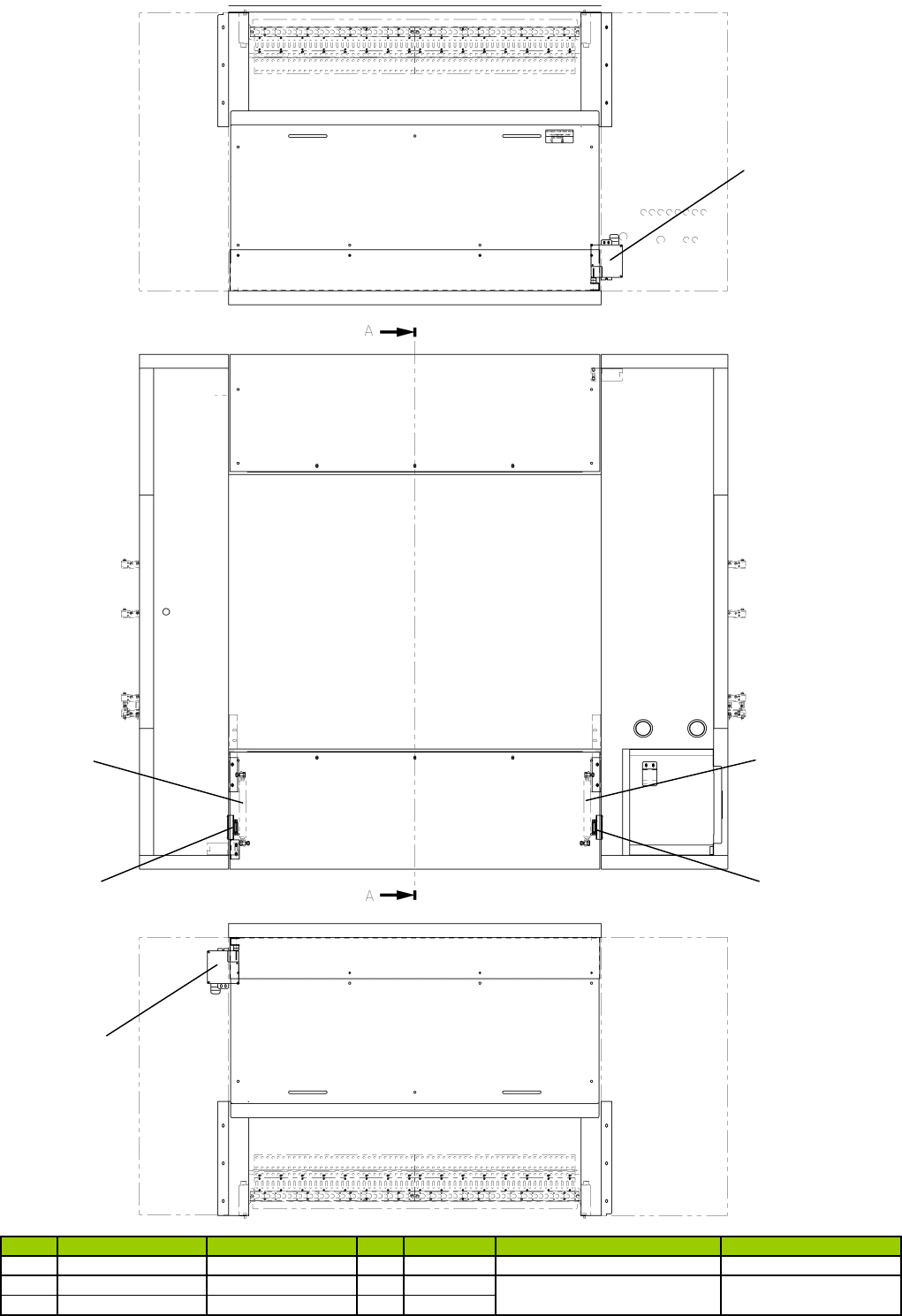

Cover Section
No. Part No. Part Name Qty Remarks Drawing Name Drawing No.
1
LC0-M22K6-00X FAN ASSY. 1
2
LC0-M22M0-00X MOTOR ASSY. 1
3
LG0-M71H1-10X BOARD,HIO7-1 1
4
LG0-M22H0-00X PHOTO SENSOR 3 X-Y ORG.,OR.
X-AXIS ASSY LC0-M2200-000
1
4
2
3

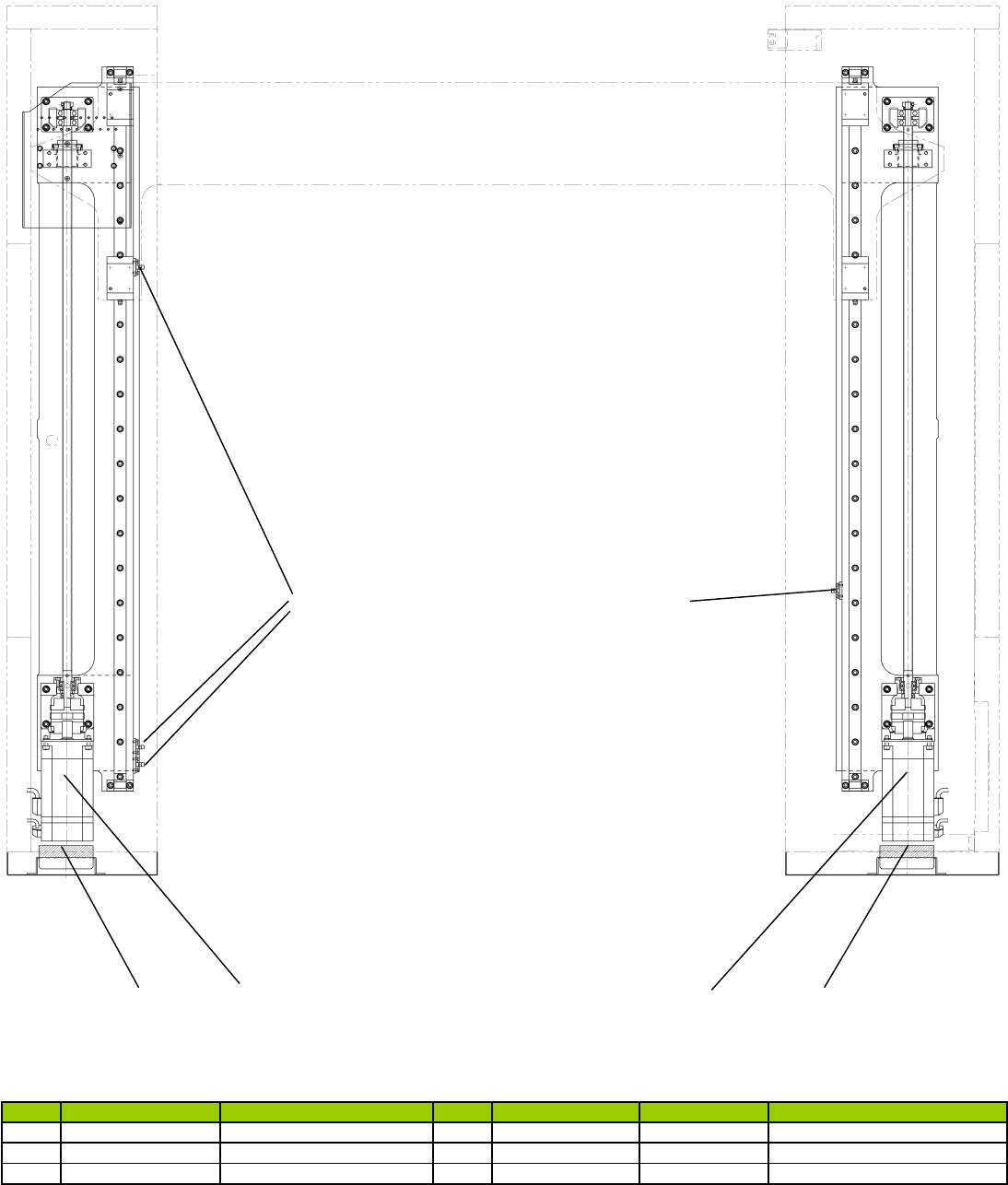

X-axis
No. Part No. Part Name Qty Remarks Drawing Name Drawing No.
1
LG0-M22H0-00X PHOTO SENSOR 4 X-Y ORG.,OR. Y-AXIS ASSY LC0-M2600-000 4/4
2
LC0-M26KA-00X FAN ASSY. 2
3
LC0-M26M0-00X MOTOR ASSY. 2 Y-AXIS ASSY LC0-M2600-000 4/4
2 3
1 1
23

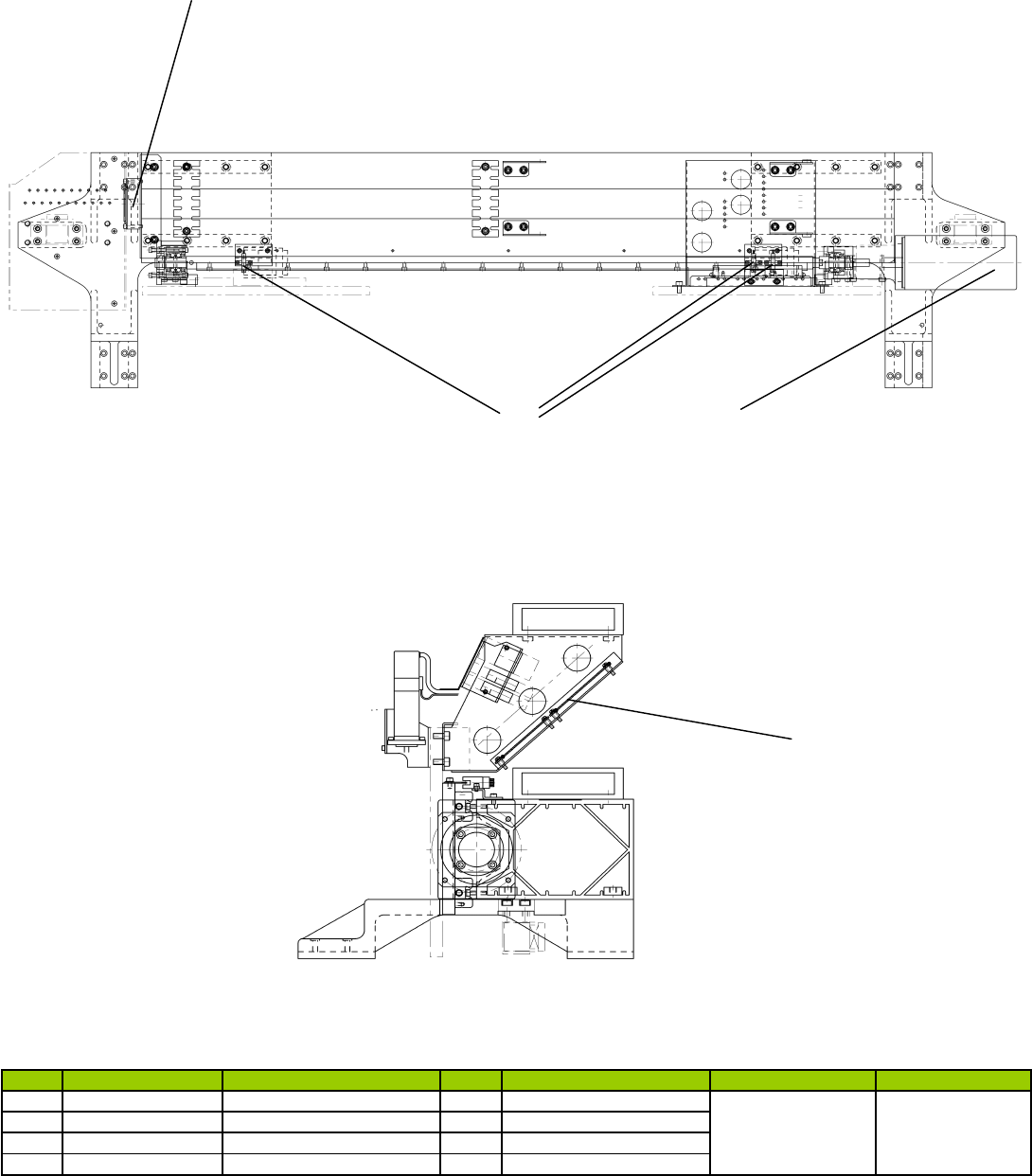

Y-axis
