M1plus_MaintenancePartsList.pdf - 第20页
No. Part No. Part Name Qty Remarks Drawing Name Drawing No. 1 LG0-M71A1-00X SOLENOID VALVE 12 HEAD SEC (COVER+) LC0-M7100-000 3/3 2 LG0-M71A3-00X GENERATOR,VACUUM 6 HEAD SEC (COVER+) LC0-M7100-000 3/3 3 LG0-M71A8-00X SIL…
No. Part No. Part Name Qty Remarks Drawing Name Drawing No.
1
LG0-M71CC-00X SPRING,COMP. 12
2
LG0-M71B5-00X STEEL BALL 12
3
LG0-M714P-00X HOLDER,SPRING 12
4
LC0-M71K7-00X SENSOR ASSY 1 Z1-Z3 ORG.
5
LC0-M71K8-00X SENSOR ASSY 1 Z4-Z6 ORG.
6
LG0-M71H3-00X PHOTO SENSOR 6 Z ORG.
7
LC1-M71M1-00X MOTOR ASSY. 6 HEAD SEC (Z-AXIS) LC0-M7100-000 1/3
8
LC0-M8611-00X M71B-SP.(1)ASSY. 1
LC0-M7100-000 1/3HEAD SEC (Z-AXIS)
7
4 (6)5 (6)
1,2,3

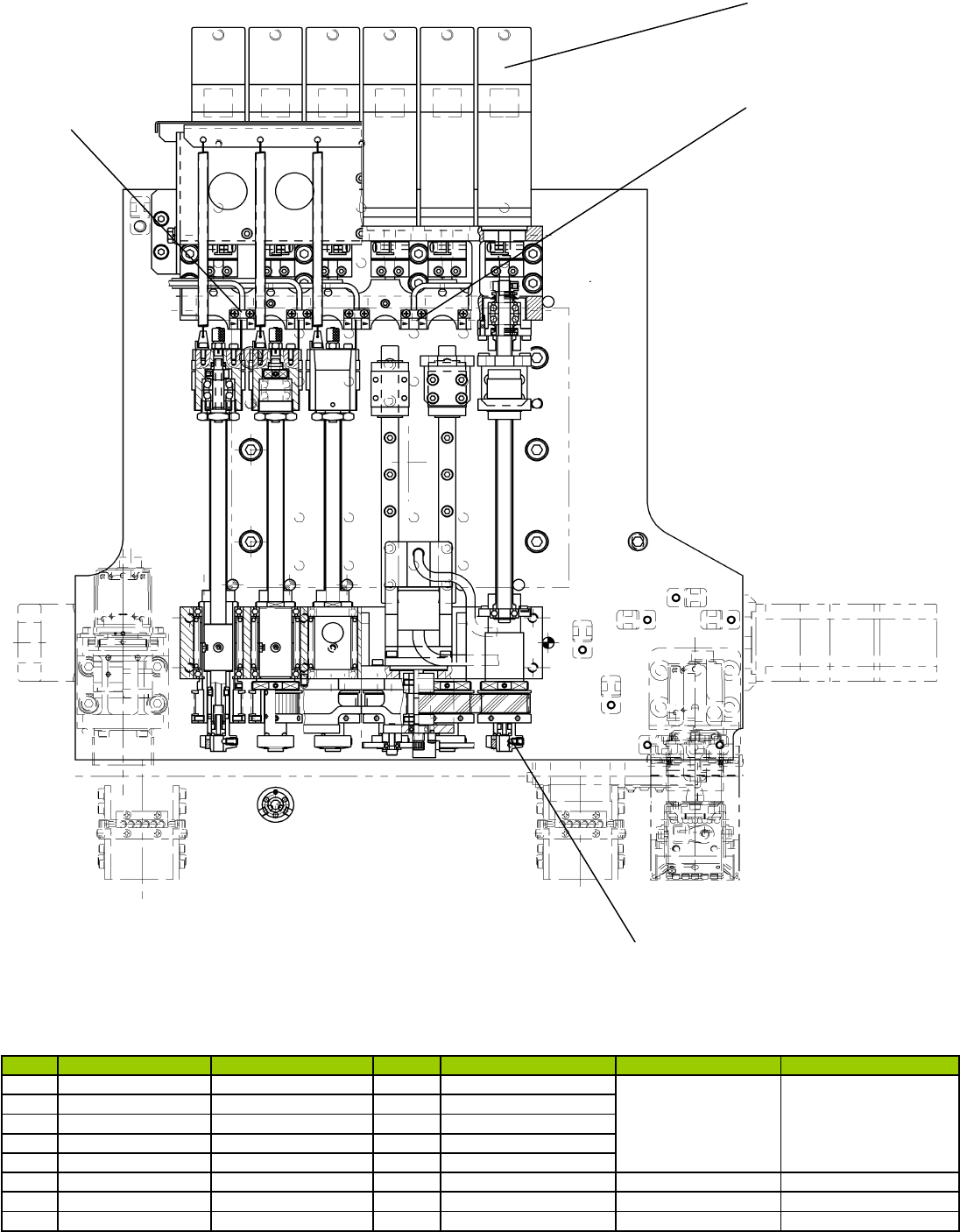

Head(Z-axis)
No. Part No. Part Name Qty Remarks Drawing Name Drawing No.
1
LG0-M71A1-00X SOLENOID VALVE 12 HEAD SEC (COVER+) LC0-M7100-000 3/3
2
LG0-M71A3-00X GENERATOR,VACUUM 6 HEAD SEC (COVER+) LC0-M7100-000 3/3
3
LG0-M71A8-00X SILENSER ELEMENT 6
4
LG0-M71A4-00X AIR FILTER 6 HEAD SEC (COVER+) LC0-M7100-000 3/3
5
LG0-M71A9-00X FILTER ELEMENT 6
6
KM1-M4592-12X SENSOR MODULE 6 HEAD SEC (COVER+) LC0-M7100-000 3/3
7
LG0-M71H0-10X BOARD,LCO2-1 1 HEAD SEC (COVER+) LC0-M7100-000 3/3
1
7
6
4 (5)
2 (3)

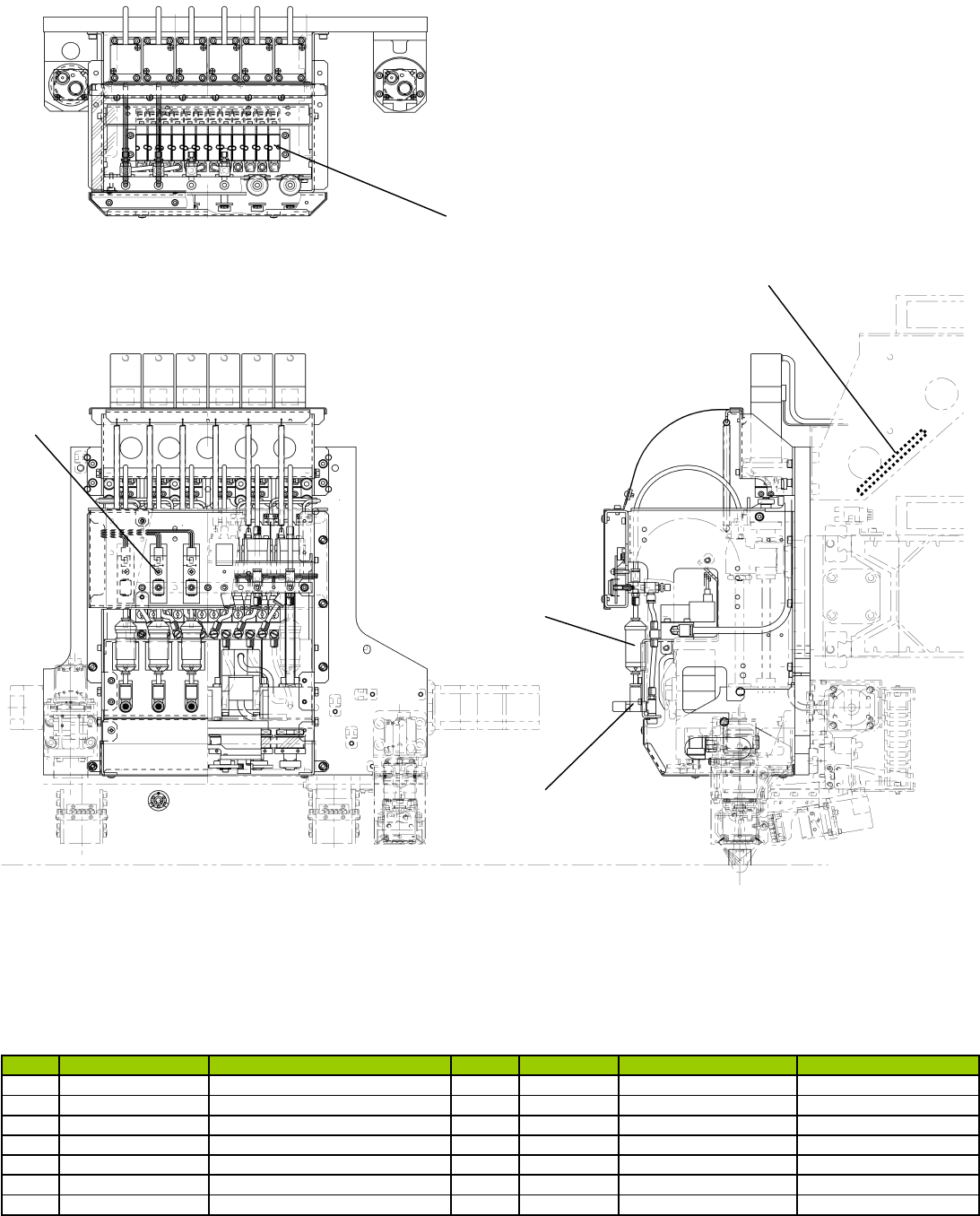

Head(Cover)
No. Part No. Part Name Qty Remarks Drawing Name Drawing No.
1
LC0-M76K2-00X HIL2 ASSY. 1
2
LG0-M76H0-00X BOARD,HIL2 1 F/T CAMERA SEC LC0-M7600-XXX
3
LC0-M76K3-00X HOL2 ASSY. 4
4
LG0-M76H1-00X BOARD,HOL2 4 F/T CAMERA SEC LC0-M7600-XXX
5
KGA-M7210-01X CCD CAMERA 1 MAIN/EXTRA F/T CAMERA SEC LC0-M7600-XXX
5
1 (2)
3 (4)
5

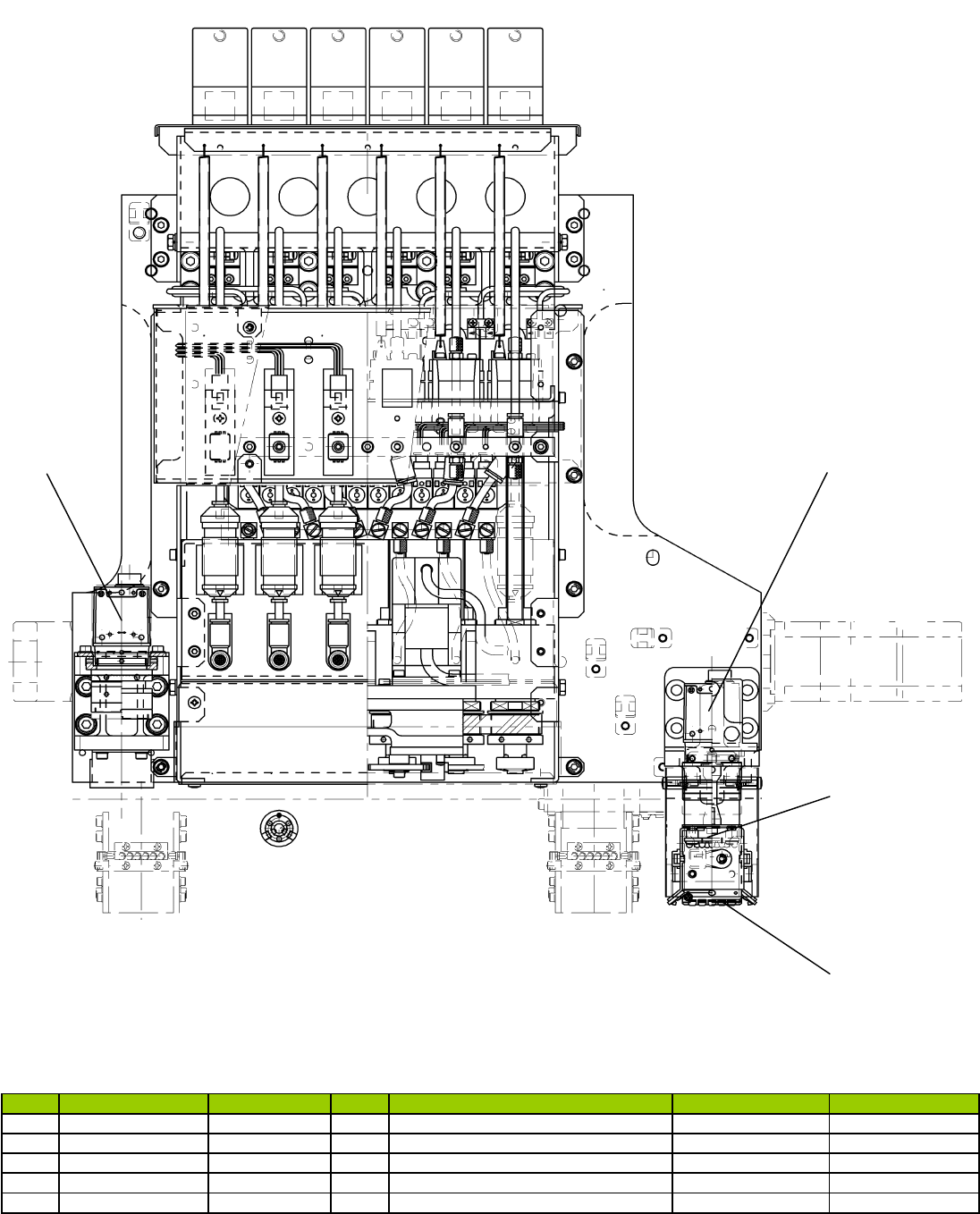

Teach Camera
