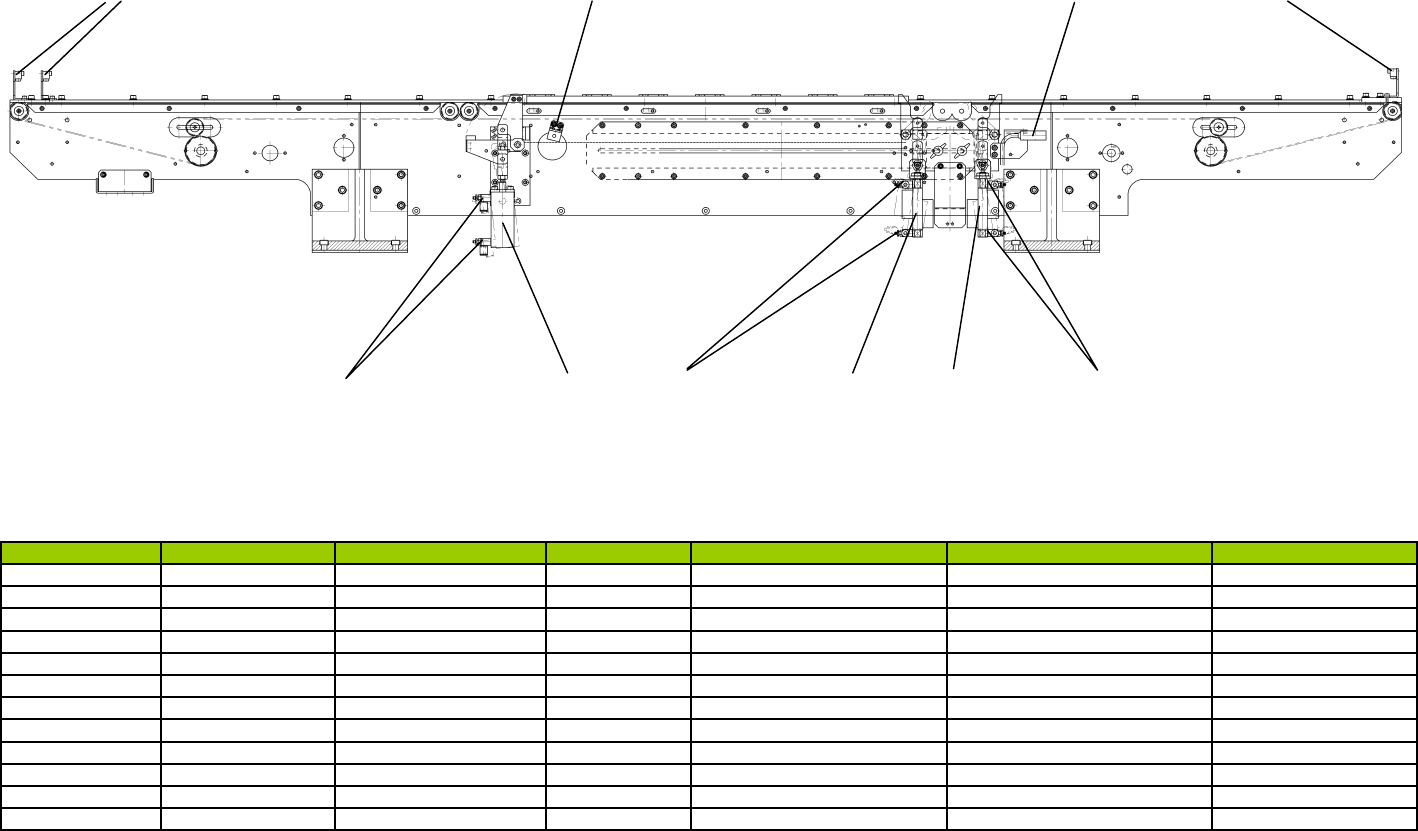

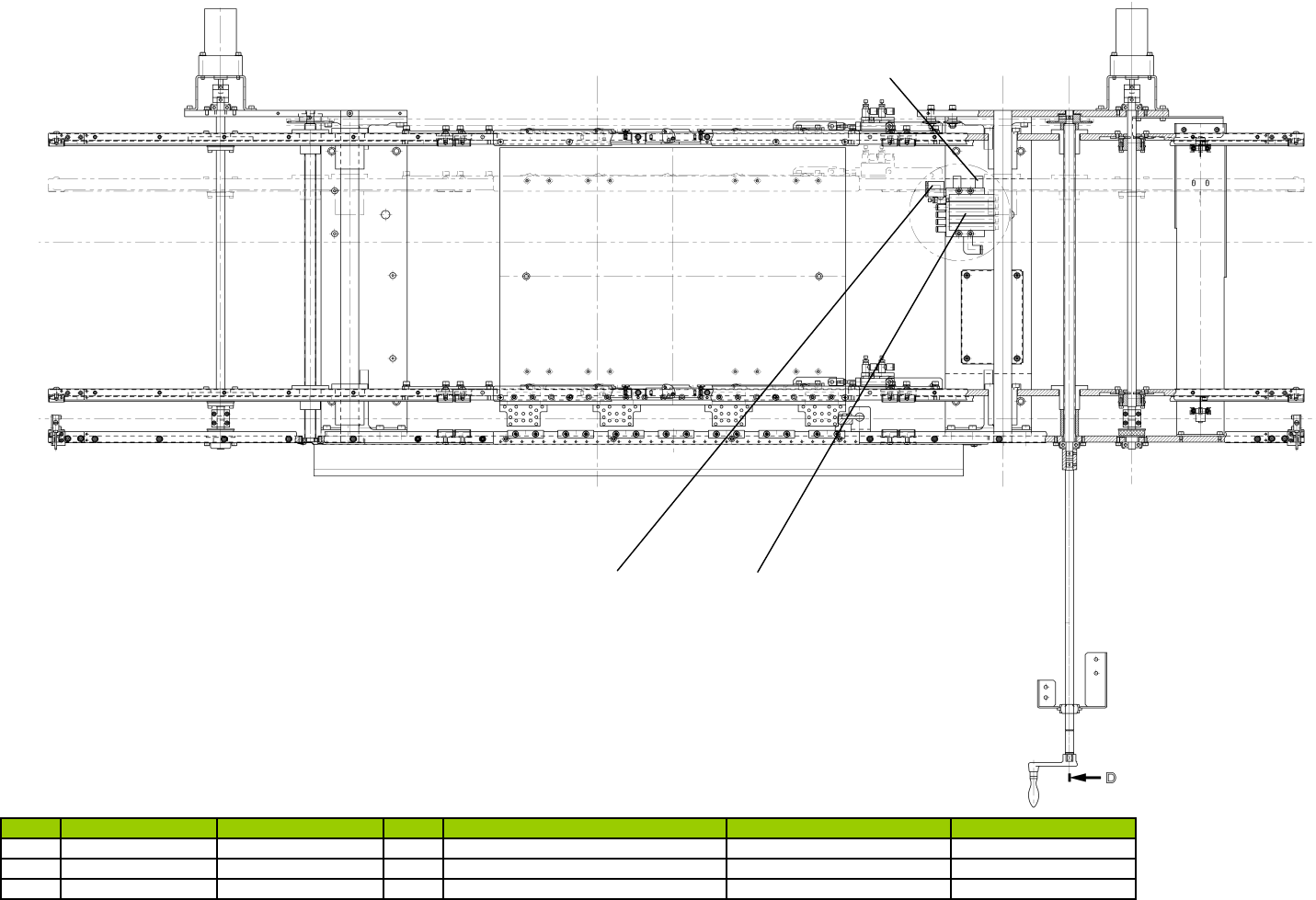

No. Part No. Part Name Qty Remarks Drawing Name Drawing No.
1
LC0-M99A1-00X CYLINDER,ASSY 1 PUSH UP LC0-M9900-100
2
LC0-M99K0-00X SENSOR,CYL ASSY. 2
3
LG0-M9820-00X PIN,MAGNET ASSY. 9 PIN MAGNET ASSY LG0-M9820-001
4
LG0-M9901-00X PIN,PUSHUP(05) 1 0.5mm thick PCB PIN PUSHUP LG0-M990X-XXX
5
LG0-M9902-00X PIN,PUSHUP(08) 1 0.8mm thick PCB PIN PUSHUP LG0-M990X-XXX
6
LG0-M9903-00X PIN,PUSHUP(10) 1 1.0mm thick PCB PIN PUSHUP LG0-M990X-XXX
7
LG0-M9904-00X PIN,PUSHUP(12) 1 1.2mm thick PCB PIN PUSHUP LG0-M990X-XXX
8
LG0-M9905-00X PIN,PUSHUP(16) 1 1.6mm thick PCB PIN PUSHUP LG0-M990X-XXX
9
LG0-M9906-00X PIN,PUSHUP(20) 1 2.0mm thick PCB PIN PUSHUP LG0-M990X-XXX
1 (2)
3 4～9
PUSH UP
No. Part No. Part Name Qty Remarks Drawing Name Drawing No.
1
LC0-M91AT-00X SOLENOID VALVE 5 SOLENOID VALVE ASSY LC0-M91A1-000
2
LG0-M90AK-00X MUFFLER 2 SOLENOID VALVE ASSY LC0-M91A1-000
3
LC0-M91AP-00X CTRL.SPEED 2 SOLENOID VALVE ASSY LC0-M91A1-000
12
3
Conveyor 1 of 5
No. Part No. Part Name Qty Remarks Drawing Name Drawing No.
1
LC0-M90K1-00X SENSOR ASSY. 1 PCB Arrival Sensor
2
LC0-M91AL-00X CTRL.SPEED 2 PCB Stopper PCB STOPPER (A) ASSY LC0-M9110-000
3
LG0-M90AU-00X AIR CYLINDER ASSY. 1 PCB Stopper PCB STOPPER (A) ASSY LC0-M9110-000
4
LC0-M90K6-00X SENSOR CYL.ASSY. 1 PCB Stopper UP/Down PCB STOPPER (A) ASSY LC0-M9110-000
5
LC0-M90KG-00X SENSOR ASSY. 1 Buffer Arrival Sensor B STOPPER ASSY LC0-M9221-000
6
LC0-M91AL-00X CTRL.SPEED 2 Buffer Stopper B STOPPER ASSY LC0-M9221-000
7
LC0-M91AH-00X CYLINDER,ASSY 1 Buffer Stopper B STOPPER ASSY LC0-M9221-000
8
LC0-M90K8-00X SENSOR CYL.ASSY. 2 Buffer Stopper UP/Down
9
LC0-M91AL-00X CTRL.SPEED 2 Rear Clamp REAR & BUFFER (A) ASSY LC0-M9120-000
10
LC0-M91AH-00X CYLINDER,ASSY 1 Rear Clamp REAR & BUFFER (A) ASSY LC0-M9120-000
11 LC0-M90K8-00X SENSOR,CYL.ASSY. 2 Rear Clamp UP/Down
12
LC0-M90K0-00X SENSOR ASSY. 3 Entrance/Exit Buffer/Exit CONV ASSY LC0-M9000-000 1/6
1
2 3 (4)
5
67 (8)9 10 (11)
12
12
Conveyor 2 of 5
