Installation Manual for Windows 2003 Server SP2 (unattended setup) Edition 07/2007 US + DE
5.1.4 System partition
During the setup your hard disk will be partitioned.
Before the system starts to partition automatically, you must accept explicit this process to make sure
that the hard disk will not be partitioned unintended.
Warning:
All data on your hard disk will be destroyed.
→ Please accept the partition:
Fig. 5-3: Warning
Note:
By clicking the „No“ button the complete setup procedure will be cancelled.
10 / 40
Installation Manual for Windows 2003 Server SP2 (unattended setup) Edition 07/2007 US + DE
5.1.5 Investigation of the SIPLACE installation types
With this information, setup is able to lead you through the correct Windows 2003 Server installation
for your SIPLACE product.

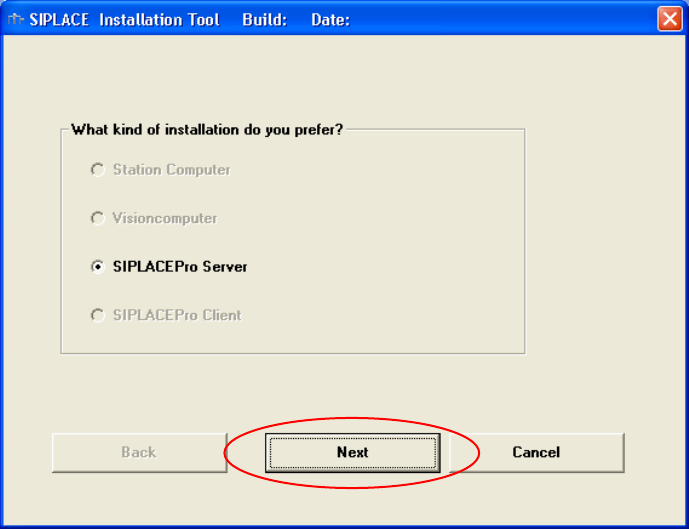

Fig. 5-4: Kind of installation
→ Select the correct option.
→ Click the Next button.
11 / 40
Installation Manual for Windows 2003 Server SP2 (unattended setup) Edition 07/2007 US + DE
5.1.6 Checking the hardware requirements
With the information from the previous dialog, a hardware check will start. If there is something wrong,
an error message will appear, but the installation will not stop!

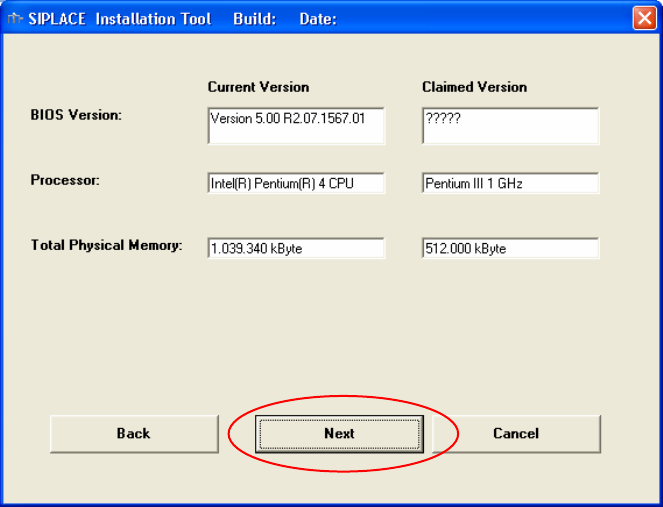

Fig. 5-5: Display of the hardware information (example)
→ Click the Next button.
12 / 40
