Installation Manual for Windows 2003 Server SP2 (unattended setup) Edition 07/2007 US + DE
5.1.8 Windows 2003 network settings
Within this dialog, general network parameters of the computer will be configured. The following data
are required:
Workgroup Name: SIPLACE
You can enter any name you want. (Default: SIPLACE)
IP address: not fixed
For the computers use a unique station IP address number (172.x.x.x).
IP address Gateway: not fixed
Sub net mask: not fixed
Please use the default data for the station computer.
System name: should be well defined in the network.

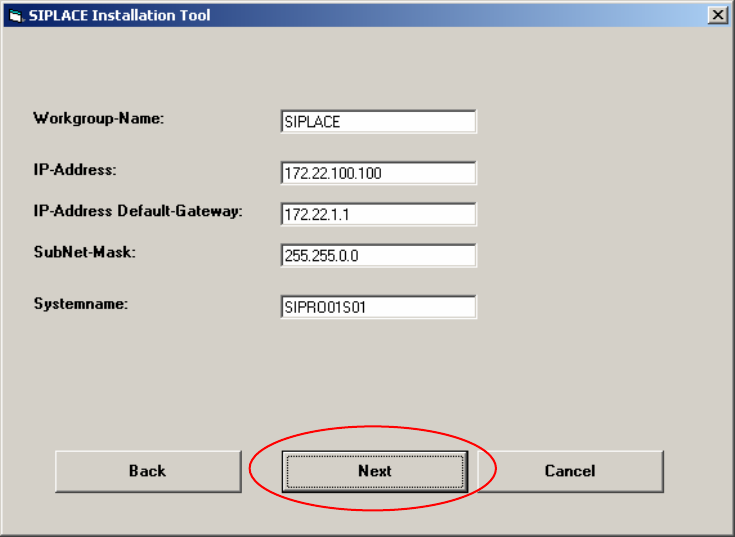

Fig. 5-7: Network settings
→ Please enter the data.
→ Click the Next button.
14 / 40
Installation Manual for Windows 2003 Server SP2 (unattended setup) Edition 07/2007 US + DE
5.1.9 Display of the configured information
Here you will find a display with all configured network parameters (check display). You can change
the data if necessary.

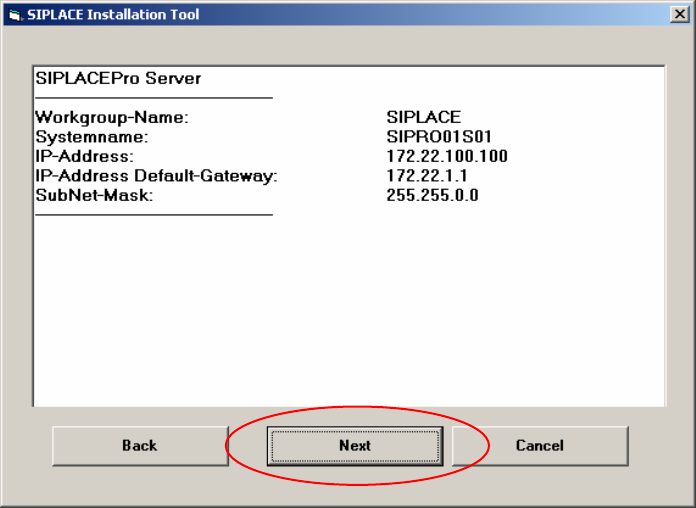

Fig. 5-8: Configurations
→ Check the information.
→ Click the Next button.
15 / 40
Installation Manual for Windows 2003 Server SP2 (unattended setup) Edition 07/2007 US + DE
5.1.10 License for Windows 2003 Server

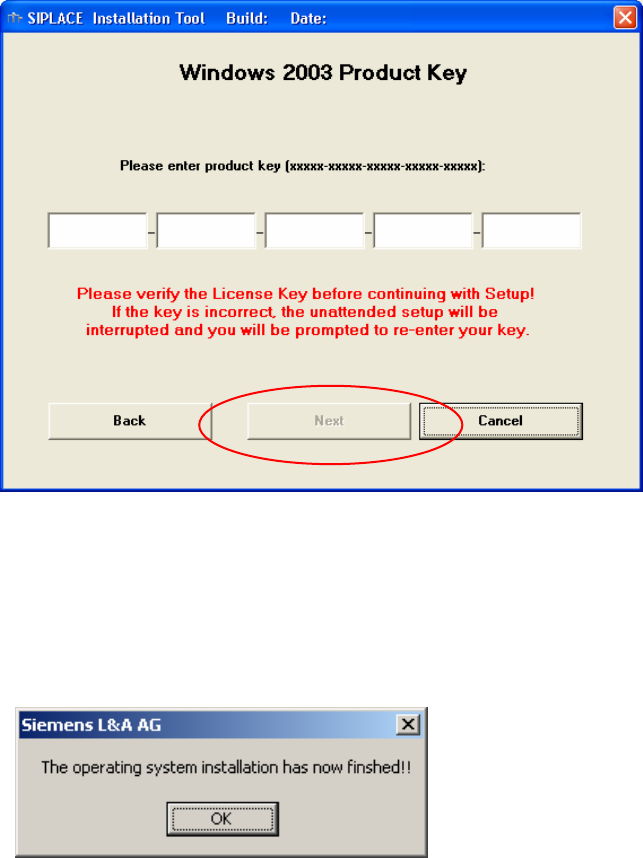

Fig. 5-9: License
→ Enter your product key.
→ Click the Next button.
5.1.11 Completion Message
Fig. 5-10: Finish message
16 / 40
