The JTF-MW is designed with safety covers and an interlock door to ensure a safe operation.
See the SIPLACE E User Manual [00197674-xx] for a complete description of safety features of the host
machine.
2.1.6
2.1.6 Danger of Crushing at SIPLACE JTF-MW
Danger of Crushing at SIPLACE JTF-MW
The SIPLACE JTF-MW stops when the stop button is pressed at the host machine or if the door is un-
intentionally opened.
Thus, the operator is protected against getting crushed by rotating or moving parts.
2.1.6.1
2.1.6.1 Crushing Hazards at the JTF-MW
Crushing Hazards at the JTF-MW
If the covers and the door are removed for service work or maintenance work, potential pinch points exist
inside.
The service personnel must be aware of these pinch points.
WARNING
Damage to warning labels
Incorrect cleaning can damage the warning labels.
➢ Using the correct cleaning agents.
► Do not use abrasive cleaners or solvents for cleaning warning labels.
► Replace any damaged or illegible warning labels.
► Check that the warning labels are positioned correctly.

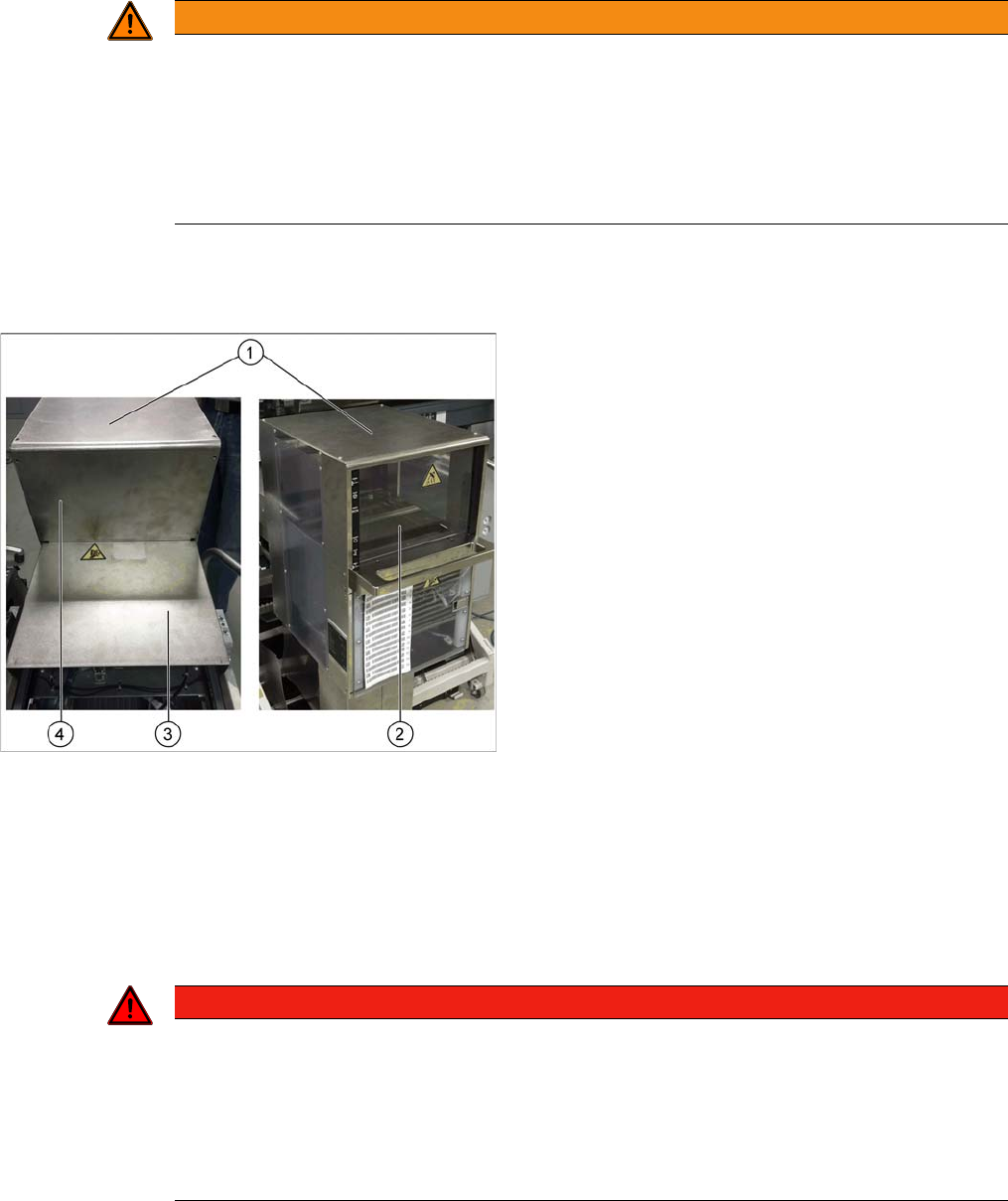

1. Top cover
2. Door
3. Pusher cover
4. Front cover
DANGER
Danger of crushing
There is a risk of injuries by pinch points or a risk of crushing by reaching into the feeder or from
loose clothing which could get into the feeder during operation.
➢ Observe correct handling and the safety instructions.
► Do not reach into the feeder while it is running.
► Maintain an adequate safety distance.
Operational Safety
2.1.6 Danger of Crushing at SIPLACE JTF-MW Safety Instructions
User Manual JTF-MW on SIPLACE E 15
Pinch points when the pusher cover is removed

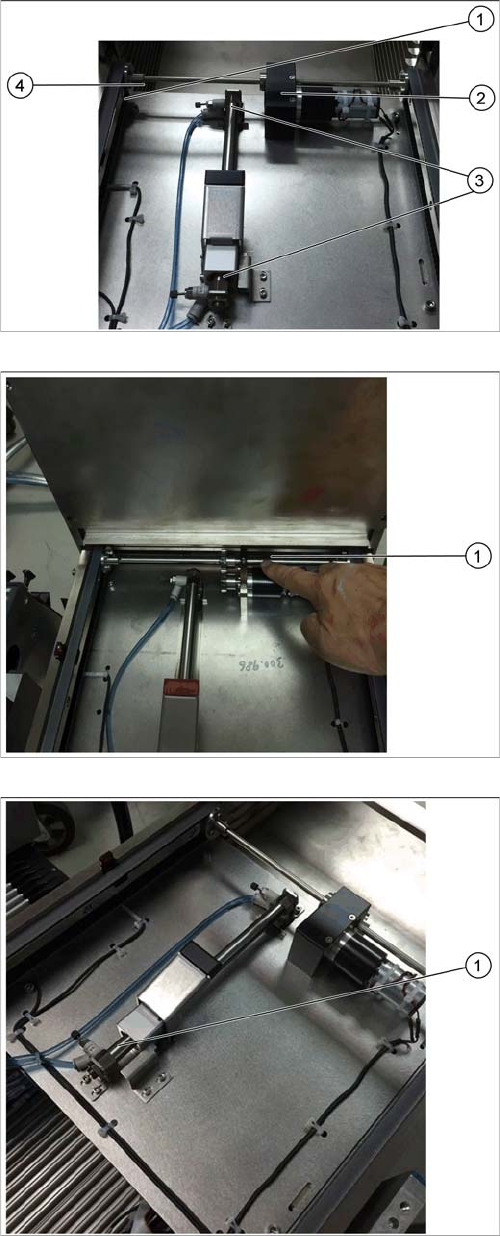

Overview
1. Between pulley and timing belt
2. Behind the gear cover
3. At the ends of the travelling path of the rod-less cylin-
der
4. Between tray and moving magazine
1. Pinch point between tray and moving magazine
1. Pinch point at rod-less cylinder end A
Operational Safety
Safety Instructions 2.1.6 Danger of Crushing at SIPLACE JTF-MW
16 User Manual JTF-MW on SIPLACE E

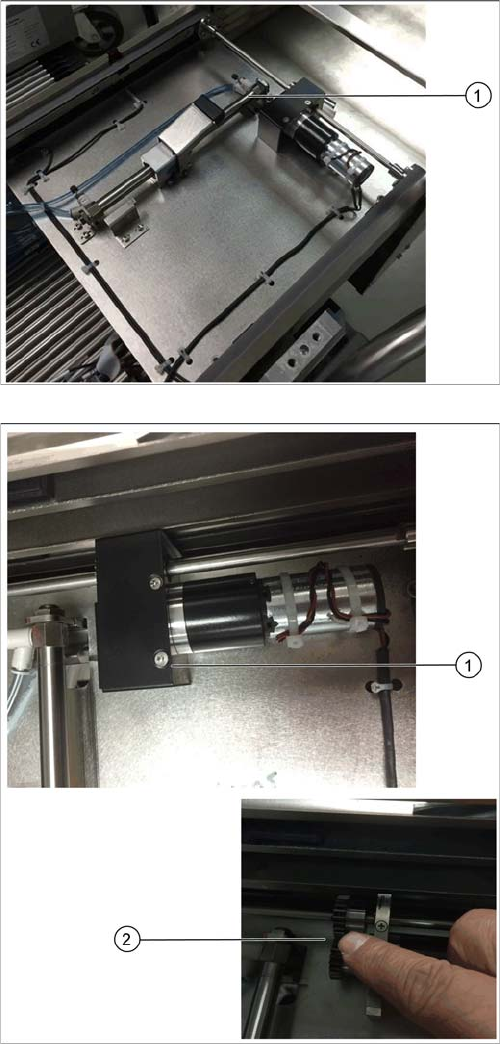

1. Pinch point at rod-less cylinder end B
1. Gear cover
2. Pinch point when gear cover is removed
