Technical Data of the SIPLACE JTF-MW
Overview the SIPLACE JTF-MW Feeder
User Manual JTF-MW on SIPLACE E 21
3
3 Technical Data of the SIPLACE JTF-MW
Technical Data of the SIPLACE JTF-MW
The following sections describe the general features of the SIPLACE JTF-MW as well as the technical
data.
3.1
3.1 Overview the SIPLACE JTF-MW Feeder
Overview the SIPLACE JTF-MW Feeder

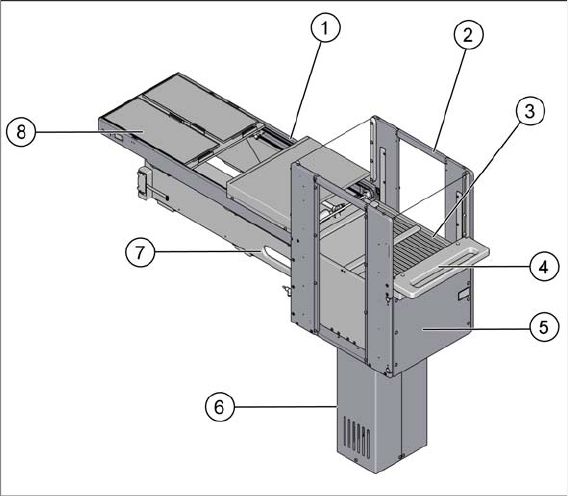

Individual parts of the SIPLACE JTF-MW feeder
1. Conveyor
2. Lifting tower
3. Magazine
4. Feeder kicker
5. Access door
6. Lifting e-actuator
7. Adapter mounter
8. Tray carrier for 2 JEDEC trays
Technical Data of the SIPLACE JTF-MW
Overview the SIPLACE JTF-MW Feeder 3.1.1 Location of Electrical Parts
22 User Manual JTF-MW on SIPLACE E
3.1.1
3.1.1 Location of Electrical Parts
Location of Electrical Parts

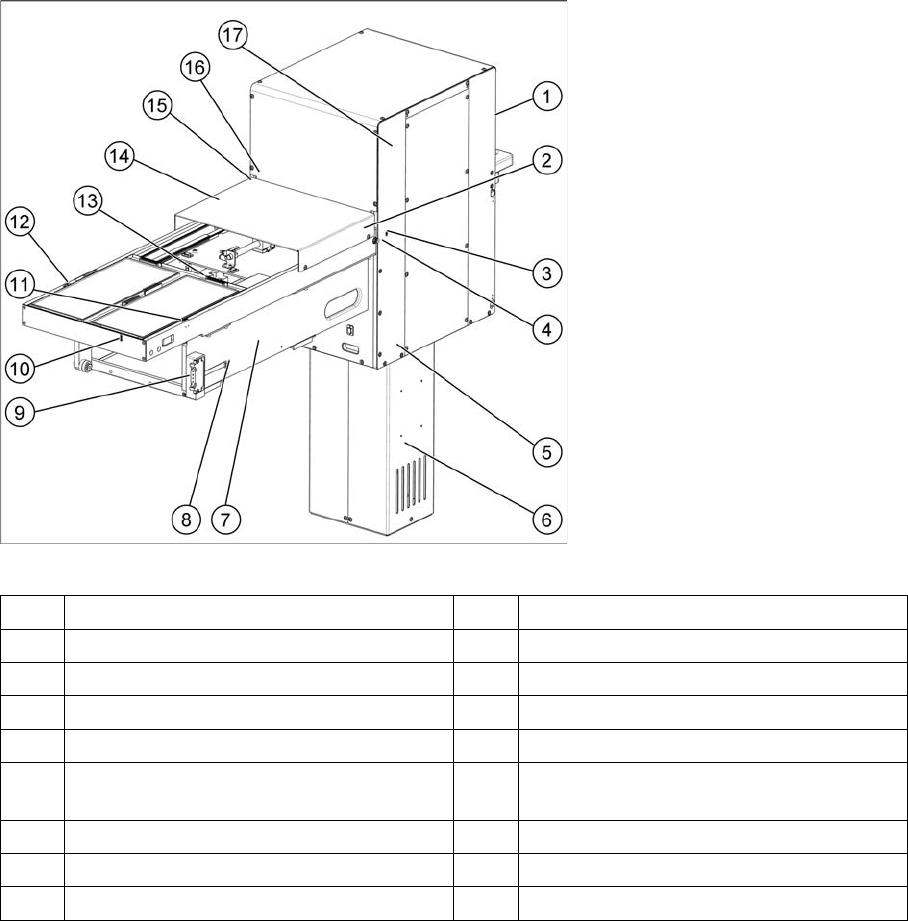

SIPLACE JTF-MW – side view from the rear
1 JTF MW HMI board [03118381-xx] 2 Conveyor motor [03113373-xx]
3 Tray slot sensor (receiver) [03113297-xx] 4 Gap sensor (emitter) [03113297-xx]
5 Sensor bottom position [0311298-xx] 6 LEYG40MC-250B-AP [03113284-xx]
7 JTF-MW control board [03116629-xx] 8 E-adapter board [03116253-xx]
9 Pogo pin board [03113686-xx] 10 Sensor tray stop @ end [03113377-xx]
11 Conveyor forward slow down sensor
(receiver) [03113297-xx]
12 Conveyor forward slow down sensor
(emitter) [03113297-xx]
13 Valve assembly unit [03114171-xx] 14 Return slow down sensor [03113298-xx]
15 Gap sensor (receiver) [03113297-xx] 16 Tray slot sensor (emitter) [03113297-xx]
17 Sensor top position [03113298-xx]
Technical Data of the SIPLACE JTF-MW
3.1.1 Location of Electrical Parts Dimensions of the JTF-MW
User Manual JTF-MW on SIPLACE E 23
SIPLACE JTF-MW – side view from the front
3.2
3.2 Dimensions of the JTF-MW
Dimensions of the JTF-MW
3.3
3.3 JEDEC Tray Specification
JEDEC Tray Specification
The SIPLACE JTF-MW is designed to process two standard sized JEDEC trays at once (JEDEC Stand-
ard No.95-1, IEC 60286-5).
Other customized JEDEC type trays are also accepted if they match the JTF-MW specification.
The two trays are placed on a steel metal tray carrier (cookie tray) and secured in position by magnets.
1 Sensor tray stop @ end [03113377-xx] 2 Conveyor forward slow sensor (emitter)
[03113297-xx]
3 Conveyor tray clamping [03113382-xx] 4 Return slow down sensor [03113298-xx]
5 Gap sensor (receiver) [03113297-xx] 6 Tray slot sensor (emitter) [03113297-xx]
7 LEYG40MC-250B-AP [03113284-xx] 8 Door switch, reed switch, magnetic,
MK13,0.5M leads 500W [03113299-xx]
9 Tray home sensor [03113298-xx] 10 Feeder kicker air cylinder [03113331-xx]
11 JTF MW HMI board [03118381-xx] 12 Conveyor return pusher [03113370-xx]
13 Conveyor forward slow down sensor (re-
ceiver) [03113297-xx]
Dimensions
Width 322.4 mm
Height 946 mm
Length 1209 mm
Weight ~ 60 kg (including tray carrier and magnets)
