Setting up and Commissioning
Preparatory Work
30 User Manual JTF-MW on SIPLACE E
4.5.2
4.5.2 Retrofitting Work on the Host Machine
Retrofitting Work on the Host Machine
Adapt the host machine using the following retrofitting kits:
▪ JTF-MW Frame Kit [03117595-xx]
▪ Tubing set for JTF-MW [03120613-xx]
▪ Empty tape duct ETD 25 mm right [03110329-xx]
► At location 2B, unload the COT and remove it from the machine.
Connecting the tubing set

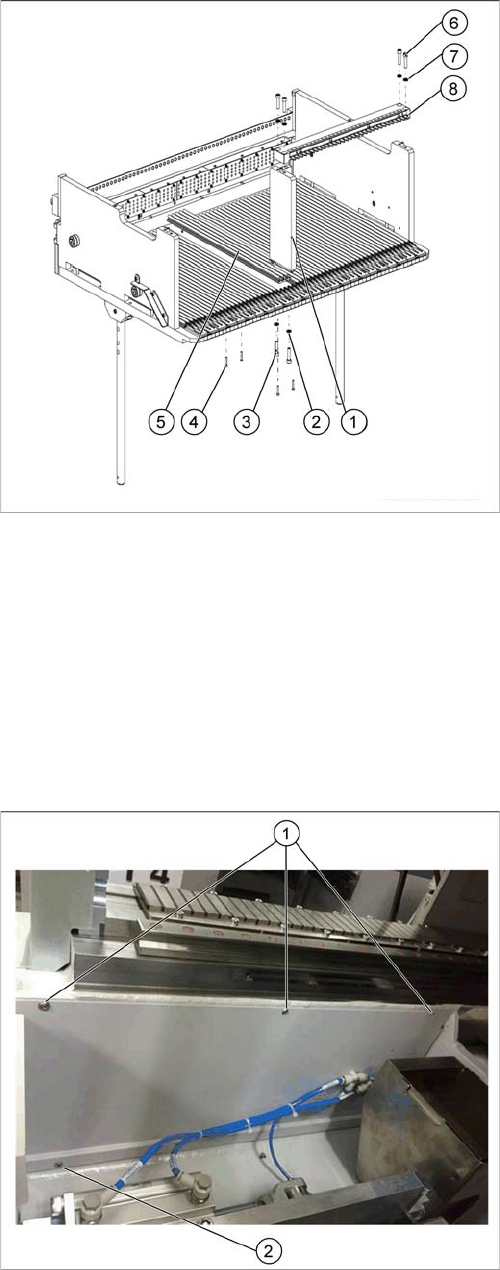

► Place the locking bar mount (1) on its installation lo-
cation.
► Fix the locking bar mount using the M6X25
screws (3) and washers (2) supplied.
► Place the guide profile reworked (5) on its installation
location.
► Fix the guide profile using the M3x18 screws (4) sup-
plied.
► Place the locking bar (8) on its installation location.
► Fix the locking bar using the M6X25 screws (6) and
the washers (7) supplied.
► Remove the three screws (1) from the side cover.
► Loosen the screws at the bottom of the side cover (2)
(the second screw is located behind the reject bin).
Setting up and Commissioning
Preparatory Work
User Manual JTF-MW on SIPLACE E 31

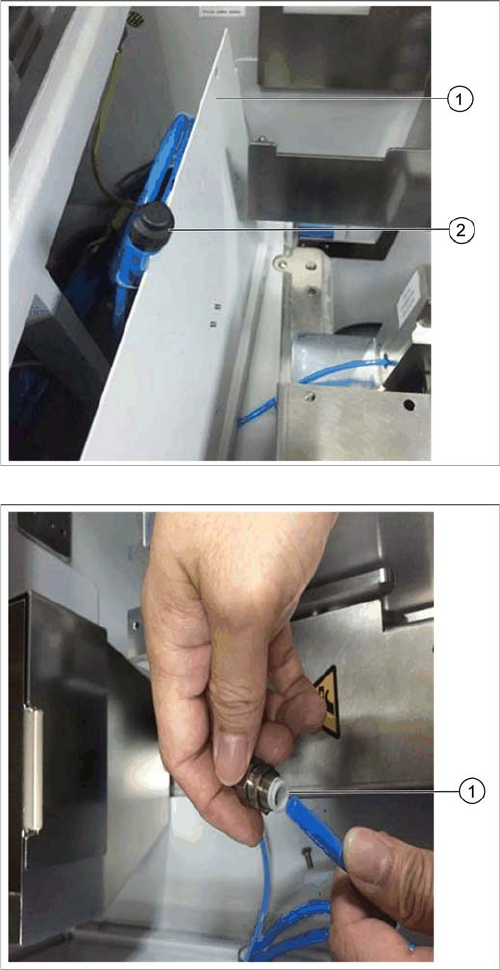

► Open the side cover (1).
► Locate the plug at the end of pneumatic tube (2).
► Replace the plug by the coupling [03117595-xx] (1)
from the retrofitting kit [03120613-xx].
Setting up and Commissioning
Preparatory Work
32 User Manual JTF-MW on SIPLACE E
Replacing the Empty Tape Duct

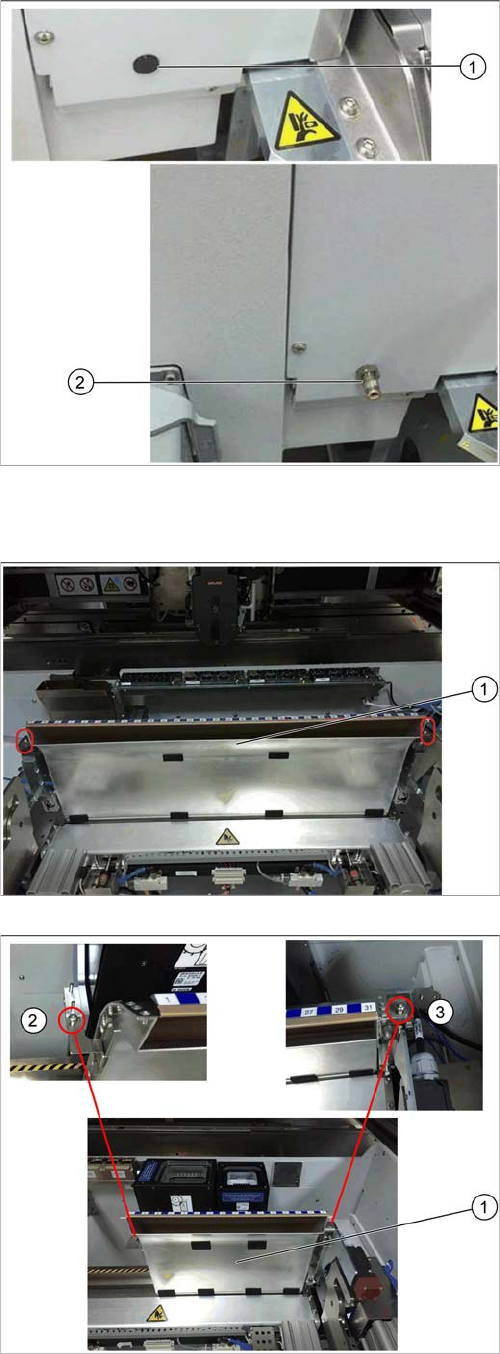

► Remove the plug at the front cover (1).
► Push the coupling through the opening in the front
cover (2).
► Fix it with a nut.
► Close the side cover inside the machine and fix it with
the three screws that you previously removed.
In the original state, the SIPLACE E machine is equipped
with a long empty tape duct (1).
► Remove the fastening screws on the left side and on
the right side of original empty tape duct.
► Lift the empty tape duct out of the machine.
► Install the empty tape duct 25 mm right (1).
► Fix the empty tape duct with two M5x10 screws on
the left (2) side and on the right side (3).
