Setting up and Commissioning
Installation and Commissioning the SILPACE E
User Manual JTF-MW on SIPLACE E 33
Installing the Frame Kit
The frame kit acts as a stop and prevents the JTF-MW from tilting.
4.6
4.6 Installation and Commissioning the SILPACE E
Installation and Commissioning the SILPACE E
4.6.1
4.6.1 Installing the JTF-MW in the Machine
Installing the JTF-MW in the Machine

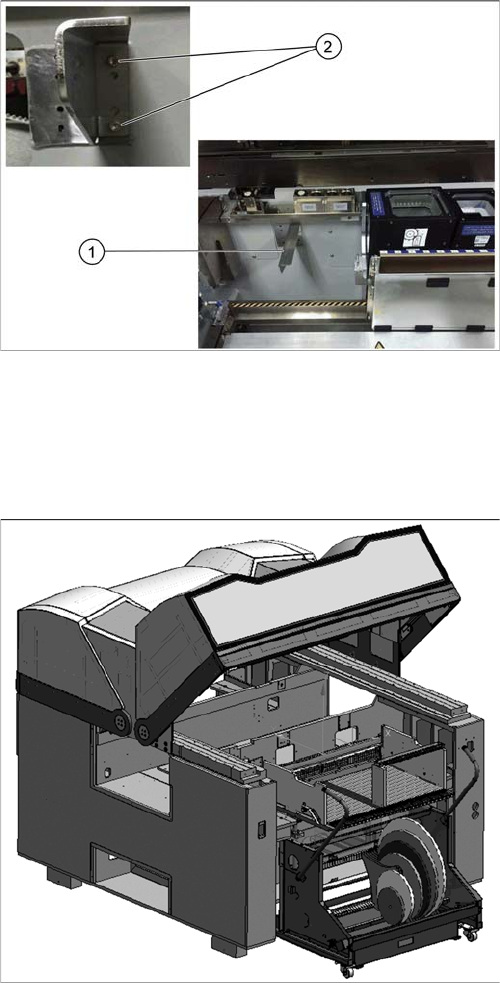

► Install the frame kit (1) at its installation position on
the left of the empty tape duct.
► Fix it at the two fixation points (2).
COT in loading position
► Move the COT table to the loading position so that the
table is in a fixed position when installing the
JTF-MW.
Setting up and Commissioning
Installation and Commissioning the SILPACE E
34 User Manual JTF-MW on SIPLACE E

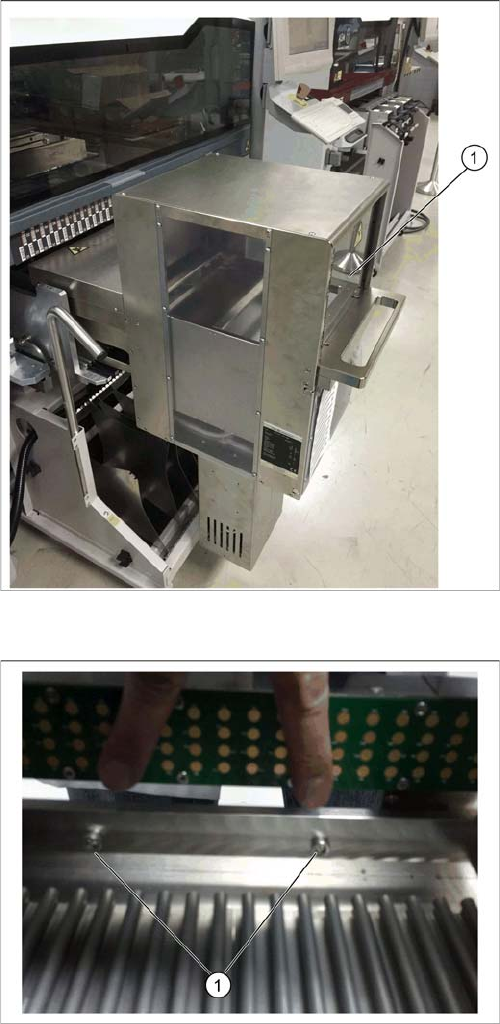

JTF-MW in SIPLACE E machine
► Remove all JEDEC trays from JTF-MW to reduce the
weight.
► Together with a second person, lift the JTF-MW by its
handle and carry it to the machine.
► Position the JTF-MW on tracks 1 to 30.
► Slide the JTF-MW into the machine (1) until the stop
at the frame kit.
JTF-MW fixed at COT
► Fix the JTF-MW at the indicated positions to the COT
using two washers (ISO 7092 5) and two M5x20
screws (ISO 4762).
Setting up and Commissioning
Configuration of SIPLACE JTF-MW in SIPLACE Pro
User Manual JTF-MW on SIPLACE E 35
4.6.2
4.6.2 Connecting the JTF-MW to the Machine
Connecting the JTF-MW to the Machine
The SIPLACE JTF-MW powers up and initializes. After that, you can operate the SIPLCE JTF-MW via
its control panel (see "5.2 Controls and Displays on the Feeder Control Panel" [ ➙ 41]).
After the COT has been loaded, the control is transferred to the station software and you can operate
the SIPLACE JTF-MW via the station software (see "5.5 Operating the JEDEC Tray Feeder in the Station
Software (SW708)" [ ➙ 46]).
The stop button and the reset button on the control panel are still available.
4.7
4.7 Configuration of SIPLACE JTF-MW in SIPLACE Pro
Configuration of SIPLACE JTF-MW in SIPLACE Pro
SIPLACE JTF-MW feeders are available from SIPLACE Pro 12.0.

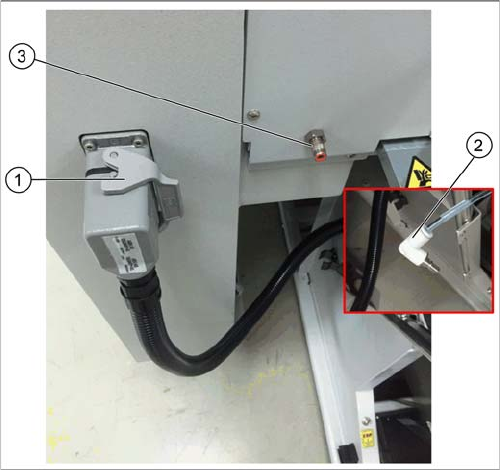

Connecting the JTF-MW
► Connect the power cable of the SIPLACE JTF-MW to
the Harting connector at the host machine (1).
► Connect the pneumatic tube from the SIPLACE
JTF-MW (2) to the coupling at the host machine (3).
